Installation

T he machine must not be operated in the open air and must only be set up and operated on a
suitable, stable and level base!
•
The operator must ensure that the ground is non-slip and level, and provide sufficient lighting
for the place of work.
•
Safe operation of the machine must be guaranteed at all times.
In a TIG cold wire welding system the wire feed unit is placed onto the casing cover of the TIG
power source.
5.3.1

Intermediate hose package connection

Item Symbol
1
2
3
4 X2
5
6
099-000118-EW501
24.11.2017
Description 0
Wire feed unit
Intermediate hose package
Intermediate hose package strain relief
Connection socket (28-pole)
Control lead
Connecting thread (G¼")
Shielding gas
Connection socket (TIG)
Welding current, minus potential
Design and function

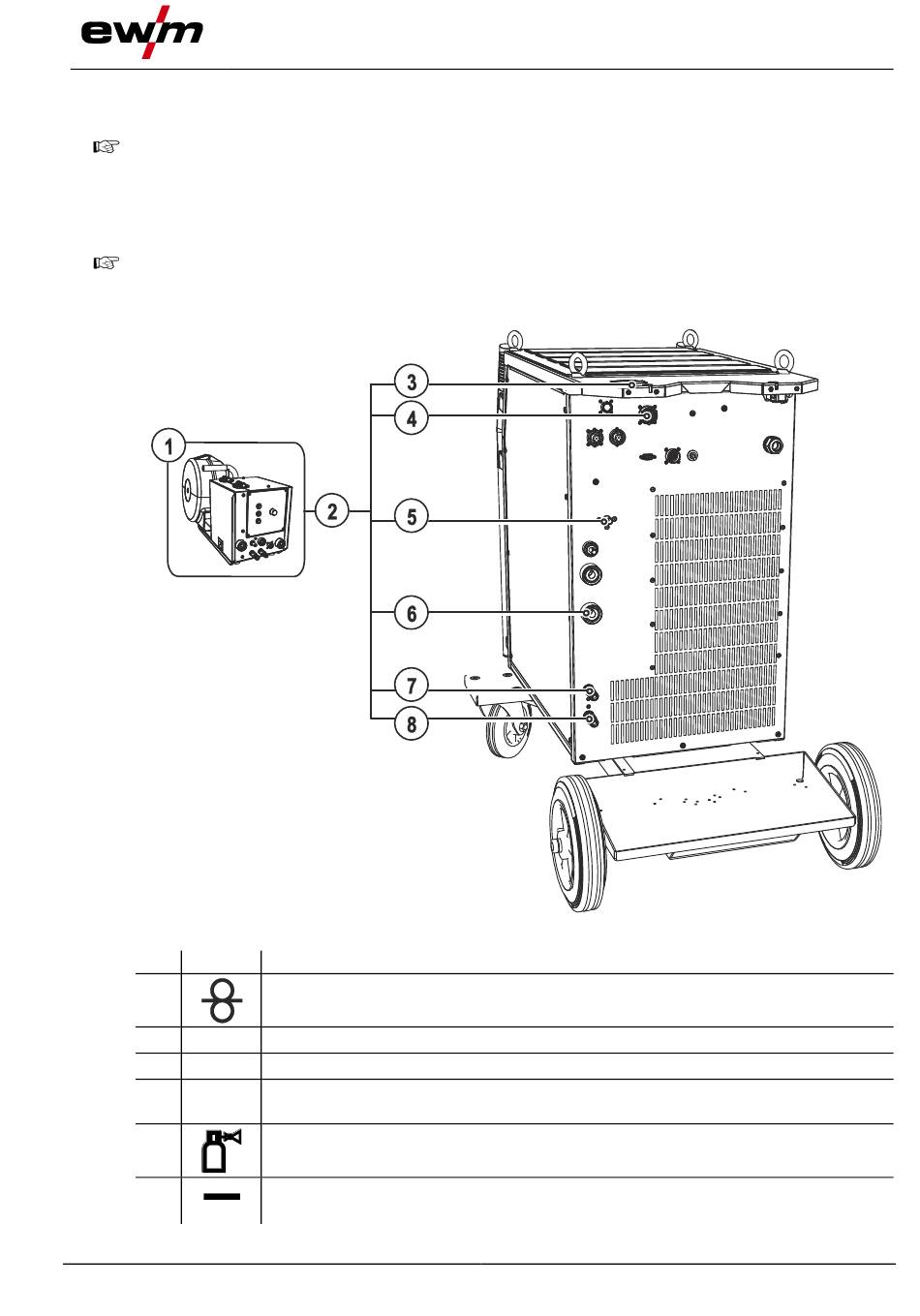

Figure 5-8
