Intermediate hose package connection

With this machine series, the earth cable on the intermediate hose package must not be connec-
ted to the welding machine or wire feeder! Remove the earth cable or push back into the hose
package!
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity. In this
case, the welding current lead should be connected to the "-" welding current socket, and the
workpiece lead should be connected to the "+" welding current socket. Observe the information
from the electrode manufacturer!
Item Symbol
1
2
3
4
5
• Secure hose package end with the strain relief > see 5.1.5.1 chapter.
• Insert the plug of the welding current lead into the welding current connection socket and lock in place
by turning to the right.
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
099-005589-EW501
9.02.2023
Description 0
Wire feed unit
Intermediate hose package
7-pole connection socket (digital)
Wire feed unit connection
Connection socket, "+" welding current
• Standard MIG/MAG welding (intermediate hose package)
Connection socket, "-" welding current
• MIG/MAG cored wire welding:
Design and function

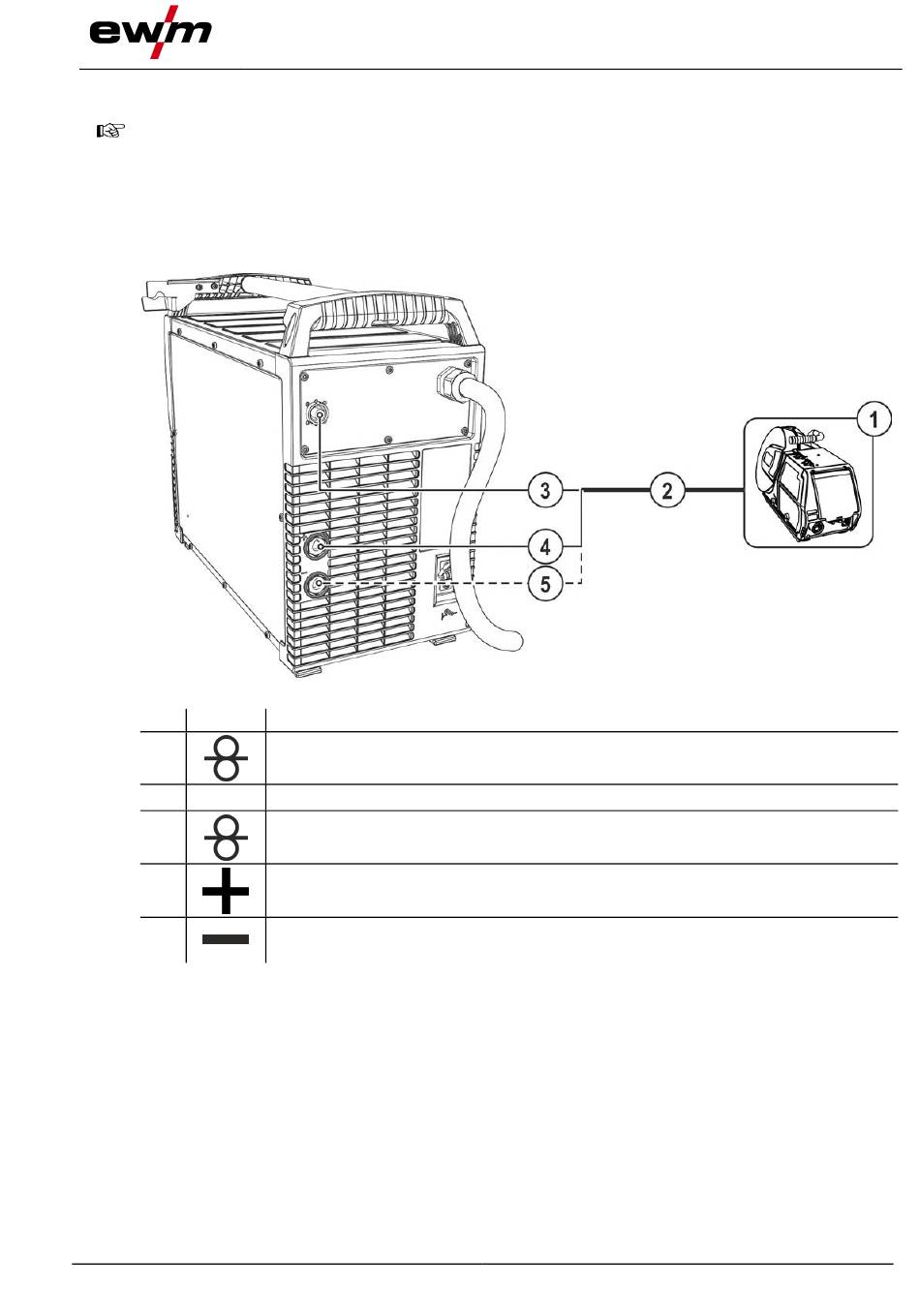

Figure 5-3
Welding current to wire feed/torch
