5.1.5

Intermediate hose package connection

Item Symbol
1
2
3
4
5
6
7
8
• Secure hose package end with the strain relief > see 5.1.5.1 chapter.
• Push the welding current cable socket onto the "welding current connecting plug" and lock by turning
to the right.
• Screw the gas hose connection to the shielding gas connection (inlet) on the machine gas-tight.
• Insert the control cable plug into the connection socket (14-pole) and secure with crown nut (the plug
can only be inserted into the connection socket in one position).
• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
099-005613-EW501
05.12.2023
Description 0
Power source
Intermediate hose package
Power source welding current connector plug
Welding current connection between power source and wire feeder
Connection thread - G¼"
Shielding gas connection (inlet)
Quick connect coupling (red)
coolant return
14-pole connection socket
Wire feeder control cable
Quick connect coupling (blue)
coolant supply
Safety belt
Intermediate hose package strain relief
Design and function

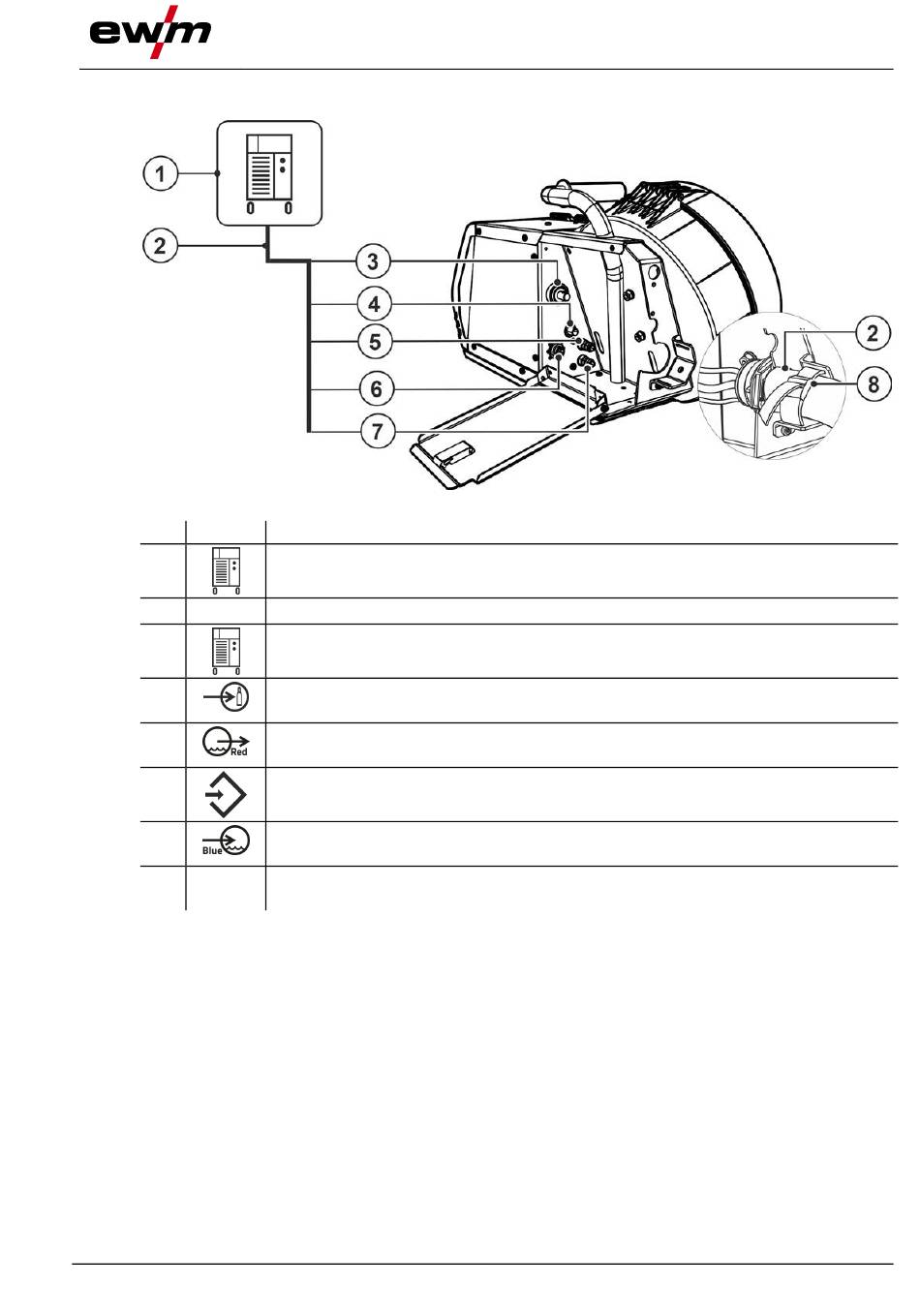

Figure 5-5
