Chapter 3 Components and Power Supply

The following chapter provides detailed information on the chassis of the Teldat M1 router family and its compon-
ents. This information includes:

• Components.

• Information on assembly.
• Installing and uninstalling modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Front Panel

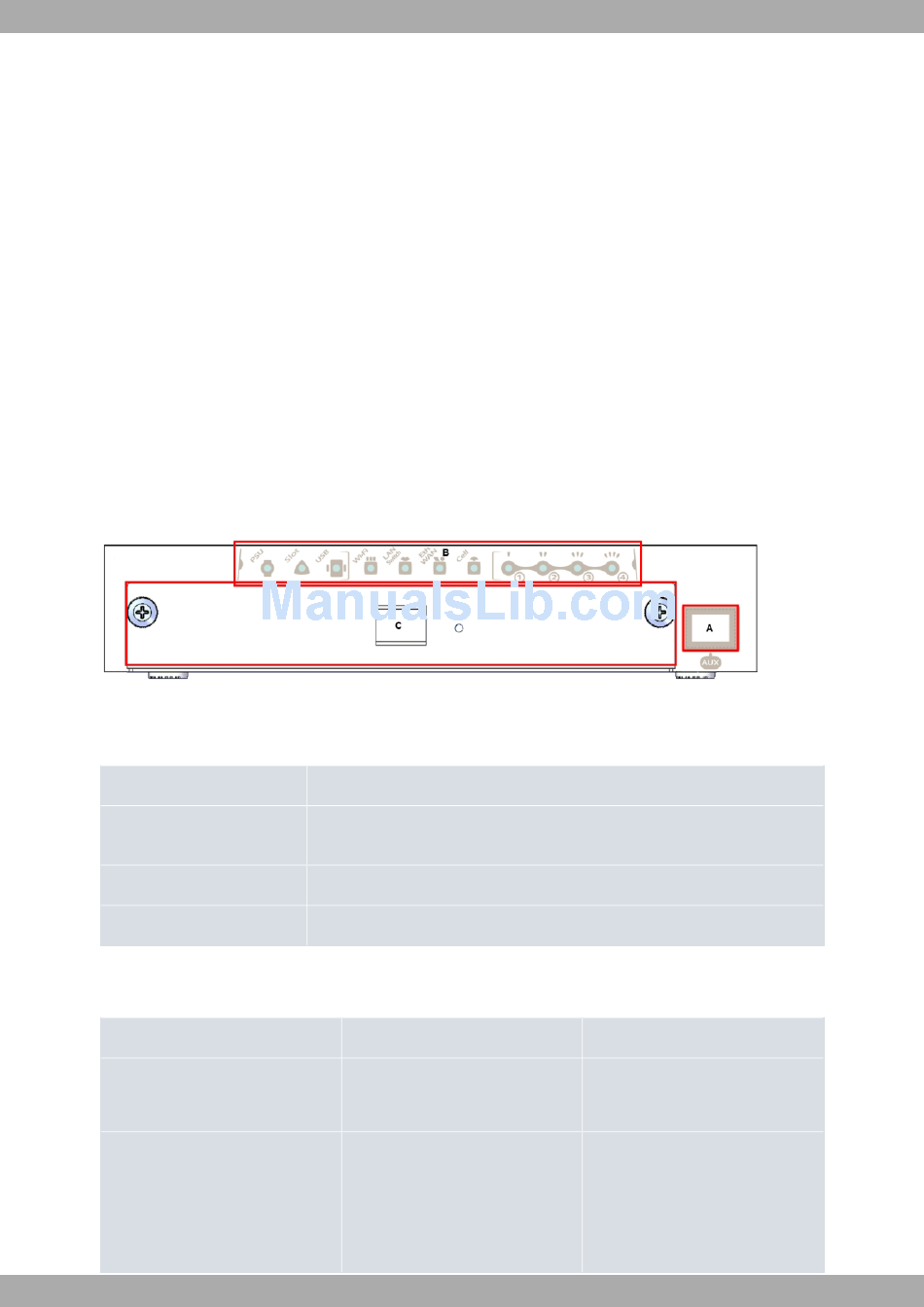

The following figure shows the front panel:
Frontal Panel
Fig. 1:
The front panel elements are as follows:
FRONT PANEL ELEMENTS TABLE
Item
A
B
C
The LEDs panel provides information on the status of the components (if they are active or not) and on the network
activity.
LEDs table
LED
PSU
Slot
Teldat Router M1/M1L
Description
Aux. RJ45 Connector, which provides access to the device's local console for con-
figuration and monitoring purposes.
LEDs panel.
Tray for expansion card.
Status
Monochrome green
Tricolor
3 Components and Power Supply
Description
Off -> no power through PSU.
On -> powered through PSU.
Off -> There is no card in the expan-
sion slot.
Red -> interface down.
Amber -> auto test.
