Aux Connector
Fig. 28:
To configure this, you must connect the " Aux ." port to an asynchronous terminal (or to a PC with terminal emula-
tion).
Note
The configuration for the terminal must be:
- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
Connection to the configuration port can be done by using the RJ45 connectors cable, supplied together with the
device, together with the RJ45 Female-DB9 Female adapter (also provided).

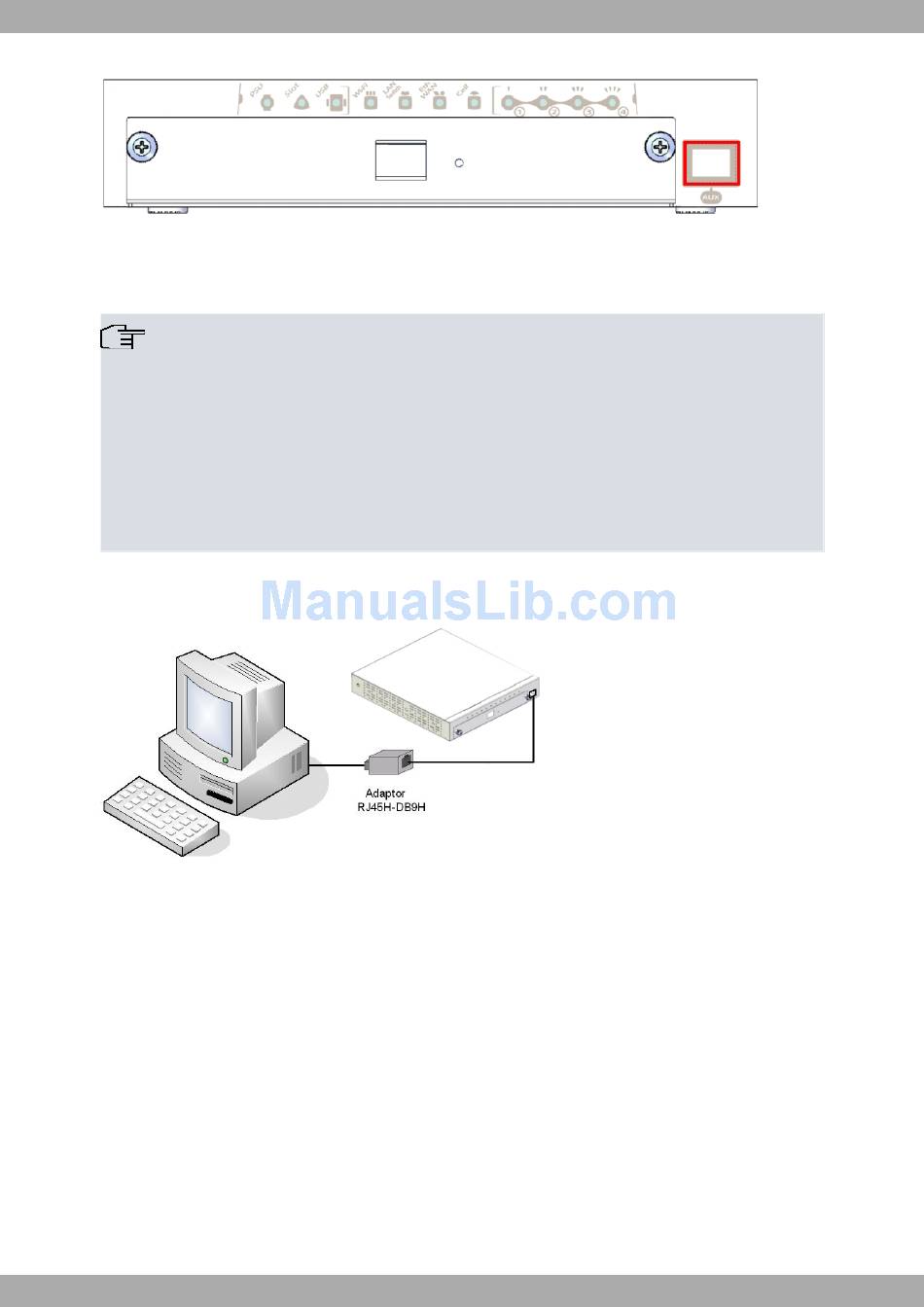

Connecting for Configuration
Fig. 29:

A.4 Licenses

The Teldat M1 router family offers a series of licenses among which the following stand out:
WiFi: Activation license for the WLAN 802.11bgn.
USB: Activation license for the USB port to be used for the WWAN modems.
Hardware encryption: Activation license for the hardware encryption.
WAN Ethernet: Activation license for the WAN Gigabit Ethernet port.
M1L to M1: Teldat M1L to Teldat M1 conversion license.
