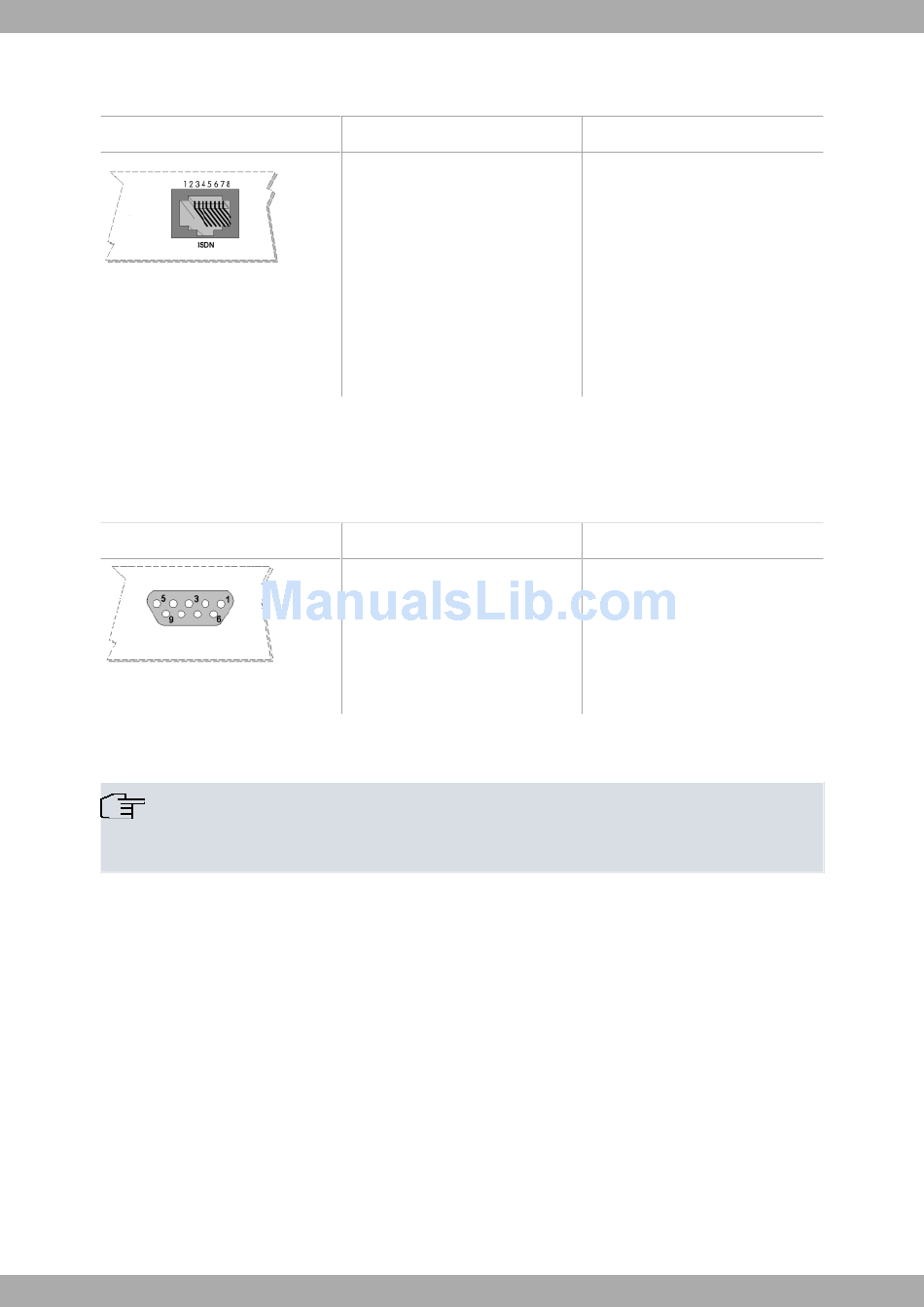

A.4.2 ISDN Connector

RJ45 ISDN
A.4.3 AUX Port Connections
This is used to locally configure and monitor the device. It allows the connection of an asynchronous terminal at
9.600 bps without parity and with one stop bit (9600 8N1). This is a female DB9 connector that behaves as DCE,
permitting pin-to-pin connection with a PC asynchronous port or terminal.
DB9
A.4.4 WAN Connector
Note
Cables used for multi-purpose Teldat drivers must not be used in these connections. You must use
end-to-end pin-to-pin connector cables.
Atlas 250
RJ45 PIN
1
2
3
4
5
6
7
8
DB9 PIN
3
2
5
7-8
1-4-6
ISDN
--
--
Tx+(output)
Rx+(input)
Rx-(input)
Tx-(output)
--
--
Signal
TXD
RXD
GND
Joined Pins
Joined Pins
Technical Information
