Technical Information

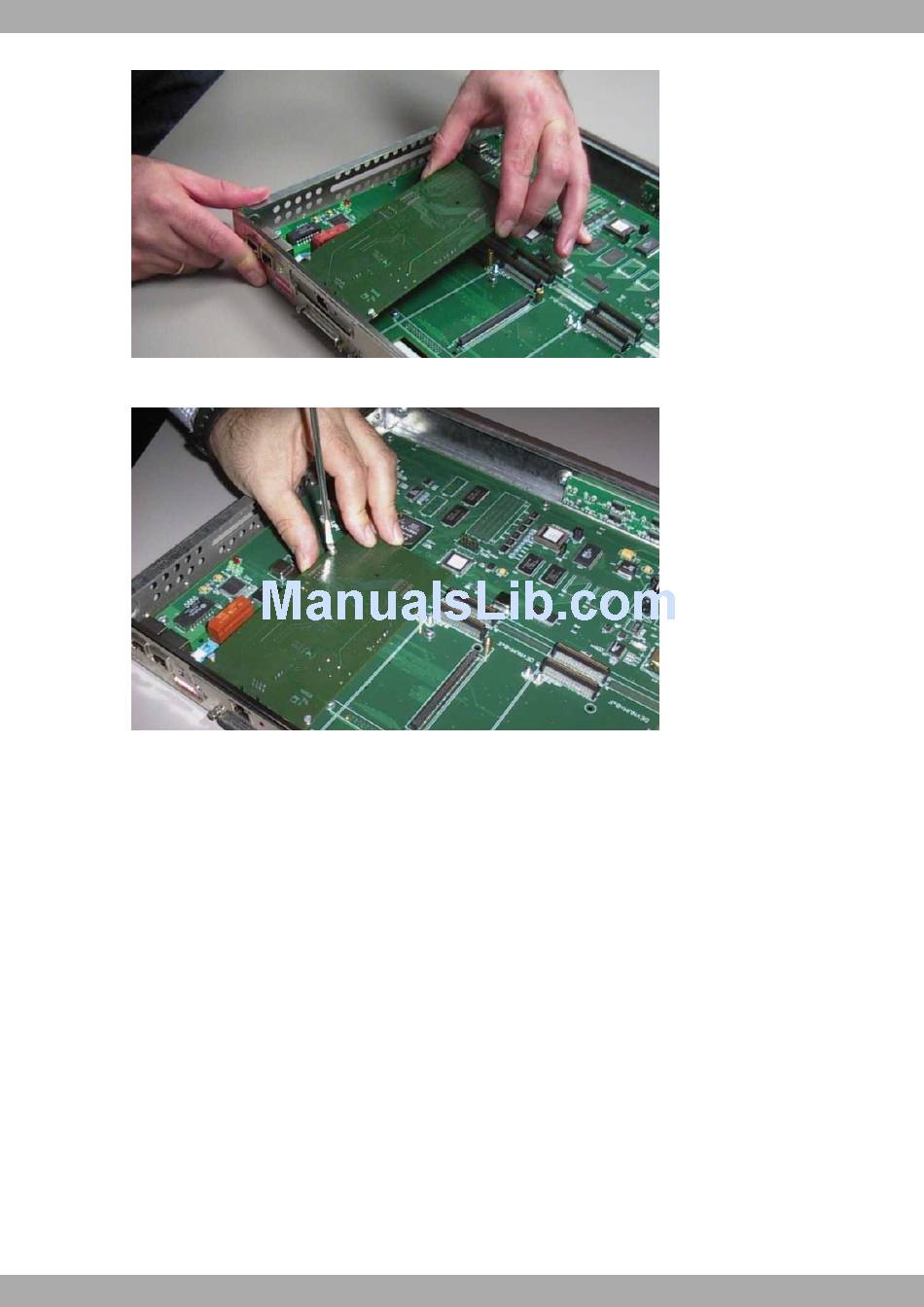

(9) Screw the PMC board to the posts. To do this, use two screws with their corresponding washers. Firmly tighten
the screws without damaging the board.
(10) Close the device using the cover taken off in section 3. To do this, place the cover on top of the device, without
completely closing it, some 10 mm from the front panel. Check that the cover is sitting properly. Finally, slide the
cover along in order to close up the device checking that the sides adjust below the front panel. Secure the cov-
er using the screws from point 3.
(11) Connect and switch on the device as explained in
device starts up as described in
the device and make sure that the above steps have been carried out correctly. If the problem persists, please
contact your usual supplier.
(12) Connect a terminal to the console and check that the device detects the PMC board. This information is dis-
played on booting as shown in the following figure.
26
General installation conditions
Switching on the device
on page 7. Should you detect any problems, switch off
on page 3Check that the
Teldat S.A.
Atlas 250
