Teldat S.A.

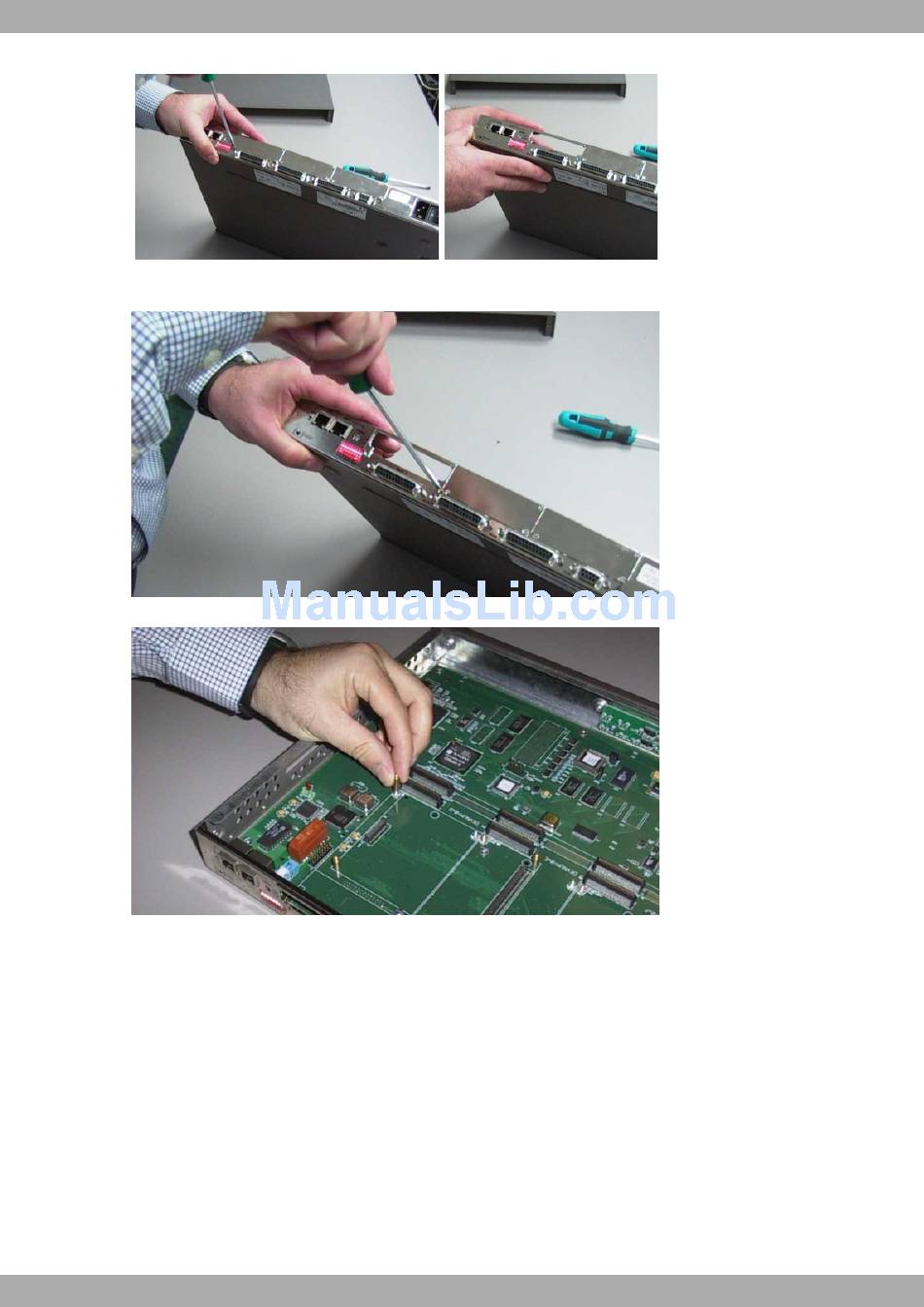

(6) In its place, secure the mold that comes with the board (allowing it to sit better in the device rear panel). Use the
screws mentioned in the above point to secure this.
(7) Place PMC board posts over the screws. Secure these firmly.
(8) Place the PMC card in the slot so that it firstly adjusts to the space on the device rear panel and subsequently to
the two PMC connections. This operation must be carried out carefully, without forcing any piece or part of the
device. Check that the board is clearly settled over the PMC connectors.
Atlas 250
Technical Information
25
