Teldat S.A.

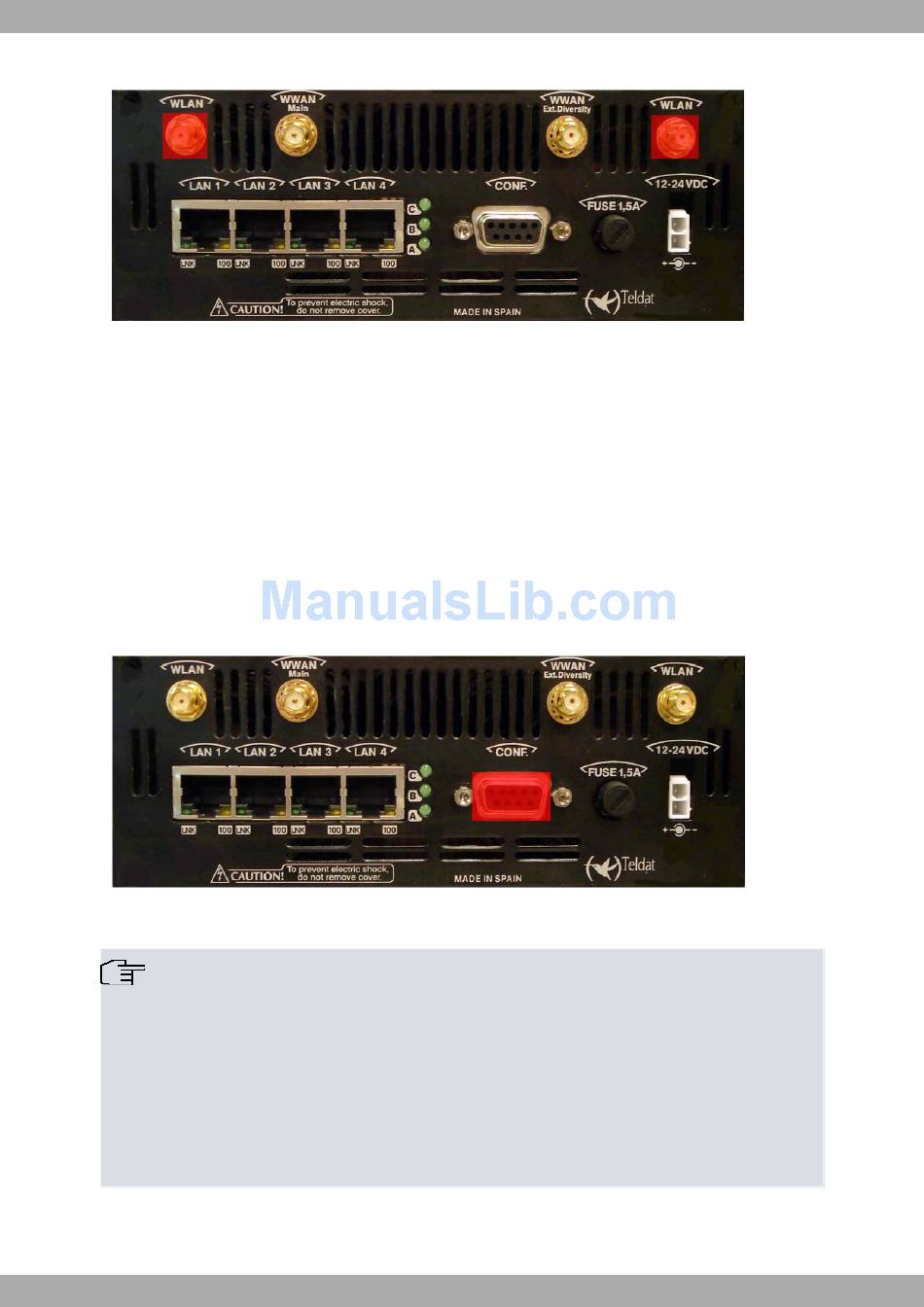

Antenna connectors for the Wireless LAN

Fig. 6:

So that the Wireless LAN interface is operative, the device must have a plug-in Wireless LAN card and the corres-

ponding software license. Depending on the model, the antennas may be a factory setting. If your device does not

have the Wireless LAN module incorporated, you can obtain this later on. The manual accompanying this module will

indicate how to install it as well as the corresponding antenna cables in the device.

2.1.6 Connecting for configuration

2.1.6.1 Configuring through the local console (CONF connector)

The Teldat H Automotive routers have a DB9 female connector on the front panel referred to as " Conf." , which

provides access to the device local console. In order to configure this, you must connect the " Conf." port to an asyn-

chronous terminal (or to a PC with terminal emulation).

Teldat H Automotive configuration connector H

Fig. 7:

Note

Configuration for the terminal must be as follows:

- Speed: 9600 bps.

- Eight data bits.

- One stop bit.

- No parity bit.

- No type of flow control.

Connection to the configuration port can be carried out linking a DB9 Male connector to a DB9 Female. In cases

where the terminal has DB25 connectors, you will need to use an additional adapter.

Teldat H Automotive Family
