1 Description

Chapter 1 Description

1.1 Introduction

The Teldat H Automotive router family is a range of IP routers especially designed to operate in hostile and extreme
environments. Thanks to their ruggedized mechanics and special characteristics, that allow them to bear extreme
temperatures, these routers are particularly suited for: automotive applications, industrial environments, industrial
telecontrol, distribution installations for electricity, gas, water, etc.
The main characteristic of this router family lies in the possibility to access data networks through cellular or mobile
telephony technologies. Thanks to their modular design, these devices can quickly adapt to the latest technologies.
The Teldat H Automotive family is, therefore, compatible with GPRS, EDGE, UMTS, HSDPA, HSUPA, CDMA 2000
1xRTT, CDMA Ev-Do, etc.
The Teldat H Automotive routers are suitable for a wide variety of IP scenarios: from providing simultaneous access
to Internet for users of a private local area network, to adapting to teleprocess networks and SNA support. Their most
common applications are:
• Access routers
• Backup for WAN networks
The Teldat H Automotive family offers access features for cellular technologies (GPRS, UMTS, HSDPA, HSUPA,
etc.). The routers incorporate a four port Ethernet LAN Switch for local area networks and can incorporate a Wireless
LAN MINI-PCI Module.
There are several Teldat H Automotive models, depending on the type of cellular technology incorporated:
• Teldat H1 HSDPA
• Teldat H1 HSUPA
• Teldat H1 EV-DO
This manual will show you how to install and connect these devices.

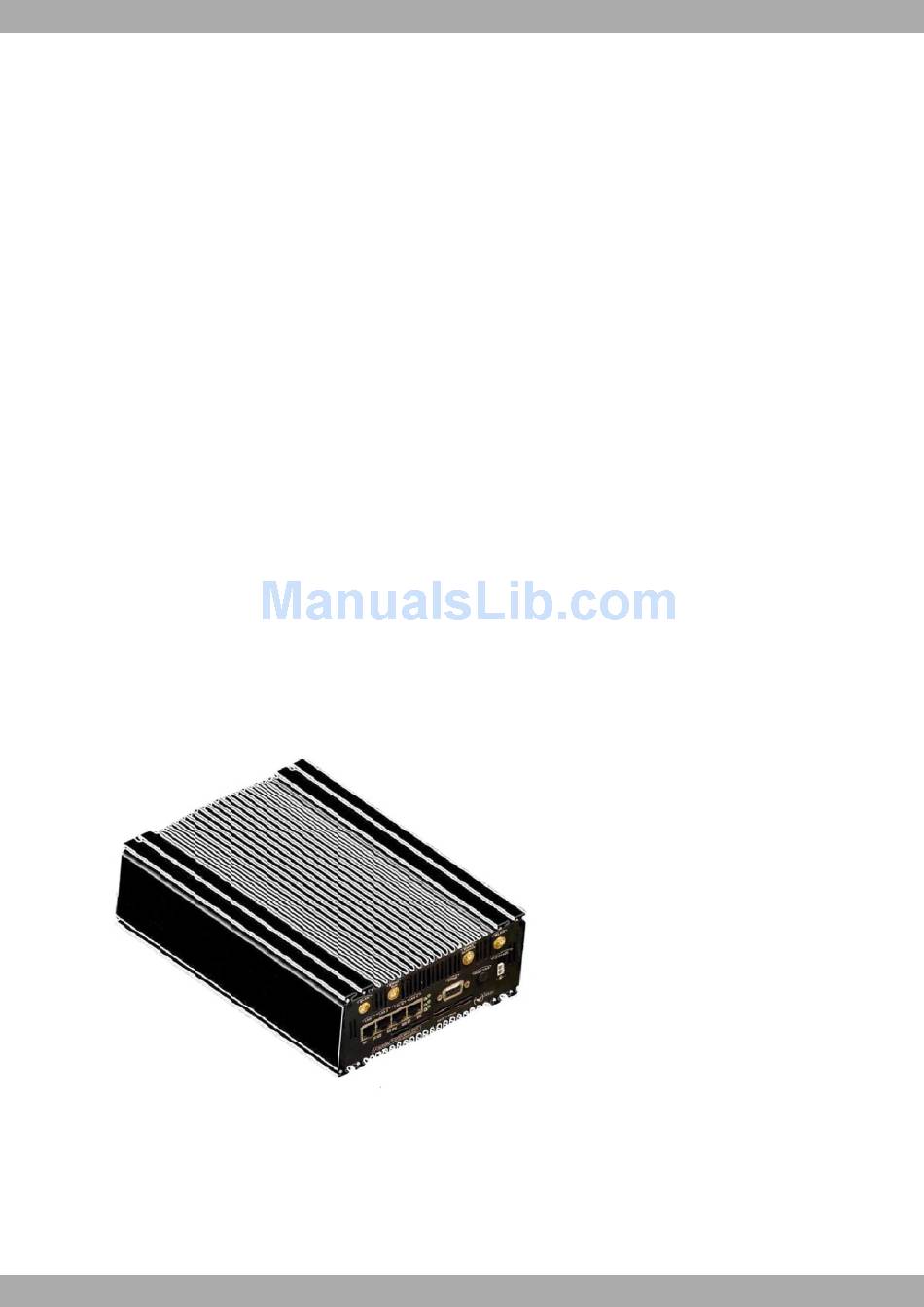

Teldat H1 Automotive: External aspect
Fig. 1:
