2 Installation
Location of the SIM trays
Fig. 11:
The Teldat H Automotive has 2 SIM trays which allow you to execute some special configurations. An example of
this is installing two SIM cards so one acts as a backup to the other. To carry out this type of configuration, it's es-
sential to identify the trays associated to each SIM as each of them requires a different configuration.
The SIM trays are identified as SK1 and SK2, i.e. socket 1 and socket 2.

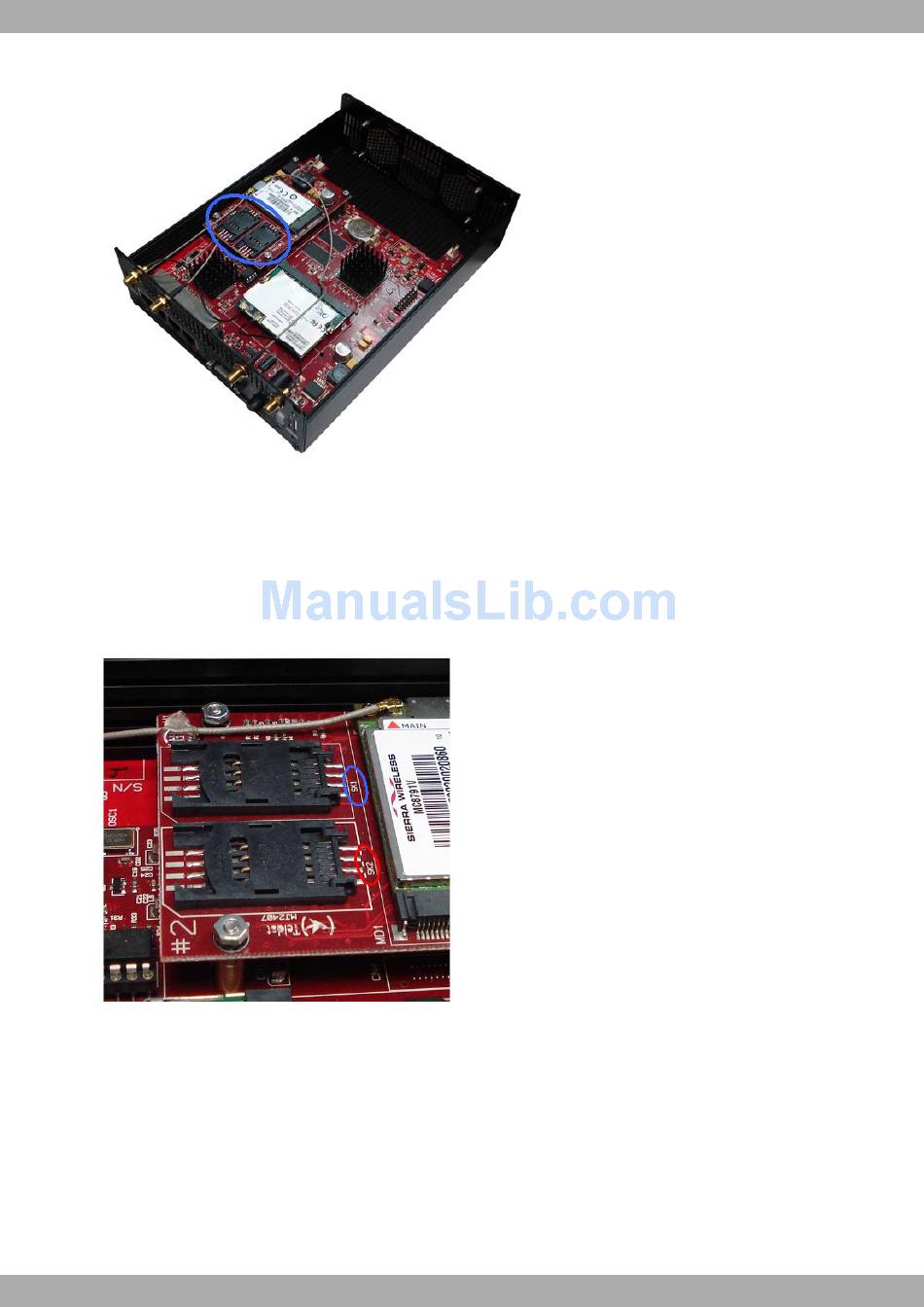

In the following image, you can see SK1 outlined in blue and SK2 outlined in red.
Identifying the SIM trays
Fig. 12:

2.2.2 Installing the SIM

In order to insert a SIM card in the tray, locate the retaining flange (metal fastening with OPEN and LOCK on it) so
you can open the tray and place the SIM card on it. The steps are as follows:
(1) Push the fastening to the right (OPEN) until the tray is released.
