UM2301
3.3.2
Procedure
1
Power the target off.
2
Power the target on.
3
Connect ST-LINK circuit to the PC via USB.
4
Connect the ST-LINK–SWIM cable to the target.
5
Launch STVP software.
6
Select STM8AF6166 as core.
Pay special attention in connecting the SWIM cable to the transmitter
board correctly, as shown below.

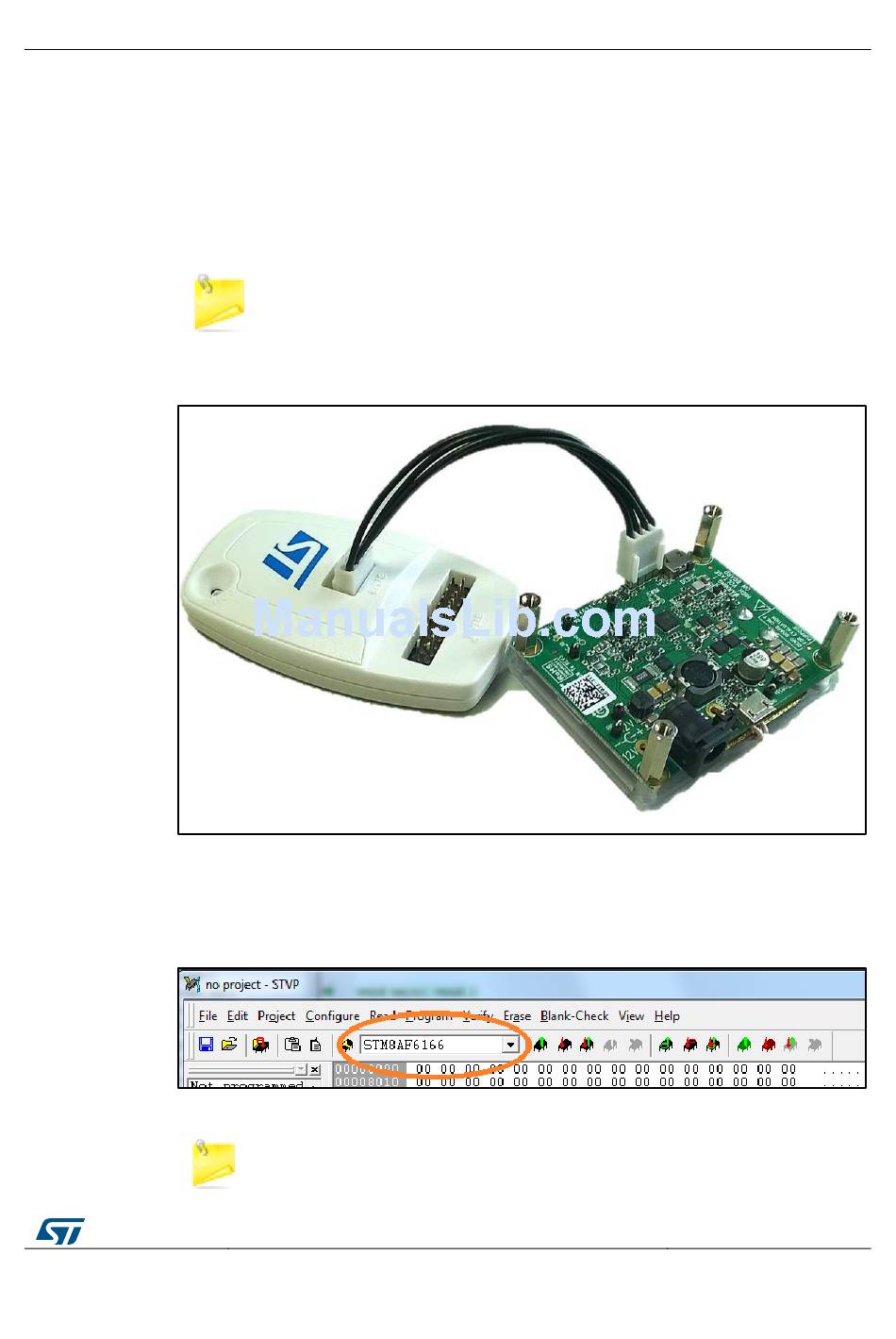

Figure 17: STEVAL-ISB044V1 evaluation board: ST-LINK connection
Figure 18: STVP core selection
Do not upload any program into the STVP RAM area, as all bits will be
erased (load 00 00 00).
DocID031141 Rev 1
Download procedure
19/57
