Hardware description and setup

2 Hardware description and setup
2.1

System block diagram

2.2

STEVAL-ISB044V1 wireless transmitter board overview

The STEVAL-ISB044V1 evaluation board features:

STWBC-EP digital controller

15 W output power

Qi MP-A10 reference design

WPC Qi1.2.3 standard compliant

Robust demodulation algorithm, with triple path (V, I, f)

Foreign object detection (FOD)

Accurate power control

Active presence detection

UART protocol to control and monitor the system

Complete reference design (evaluation board, IC, firmware and tools)

2-layer PCB for easy design

Flash memory-based

RoHS compliant
8/57

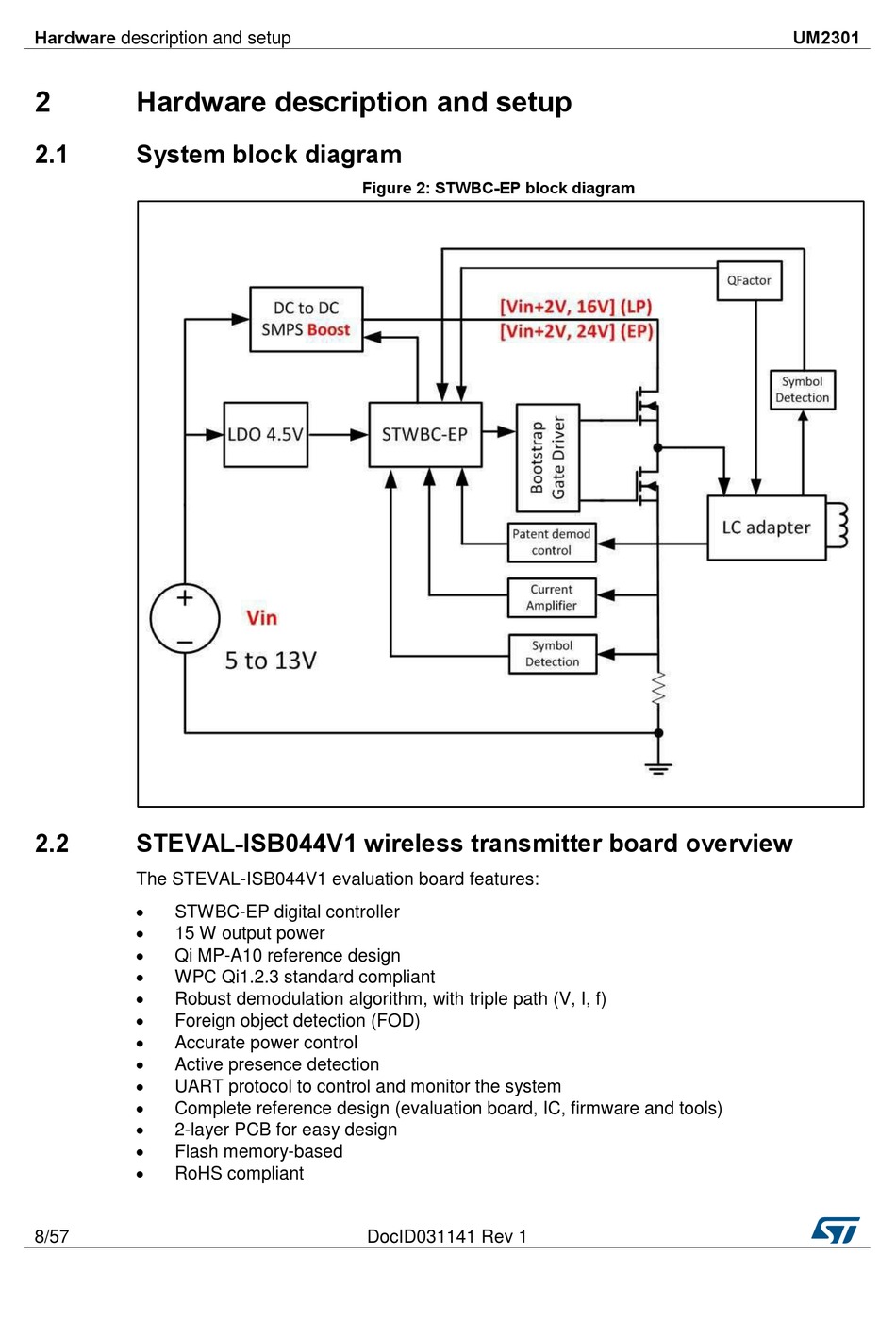

Figure 2: STWBC-EP block diagram

DocID031141 Rev 1
UM2301
