Download procedure
Otherwise, try another USB port.
5
Press "OK".
The GUI is ready to run.
3.2
Firmware download via STSW-STWBCGUI
The following sections describe the firmware download through the UART connector via
STSW-STWBCGUI.
The download contains 3 files incorporated in a single cabfile.
3.2.1
Download procedure with a new chip (never been programmed)
If the chip has never been programmed, the download mode is enabled by default.
1
Connect the USB-to-UART dongle to the computer.
14/57

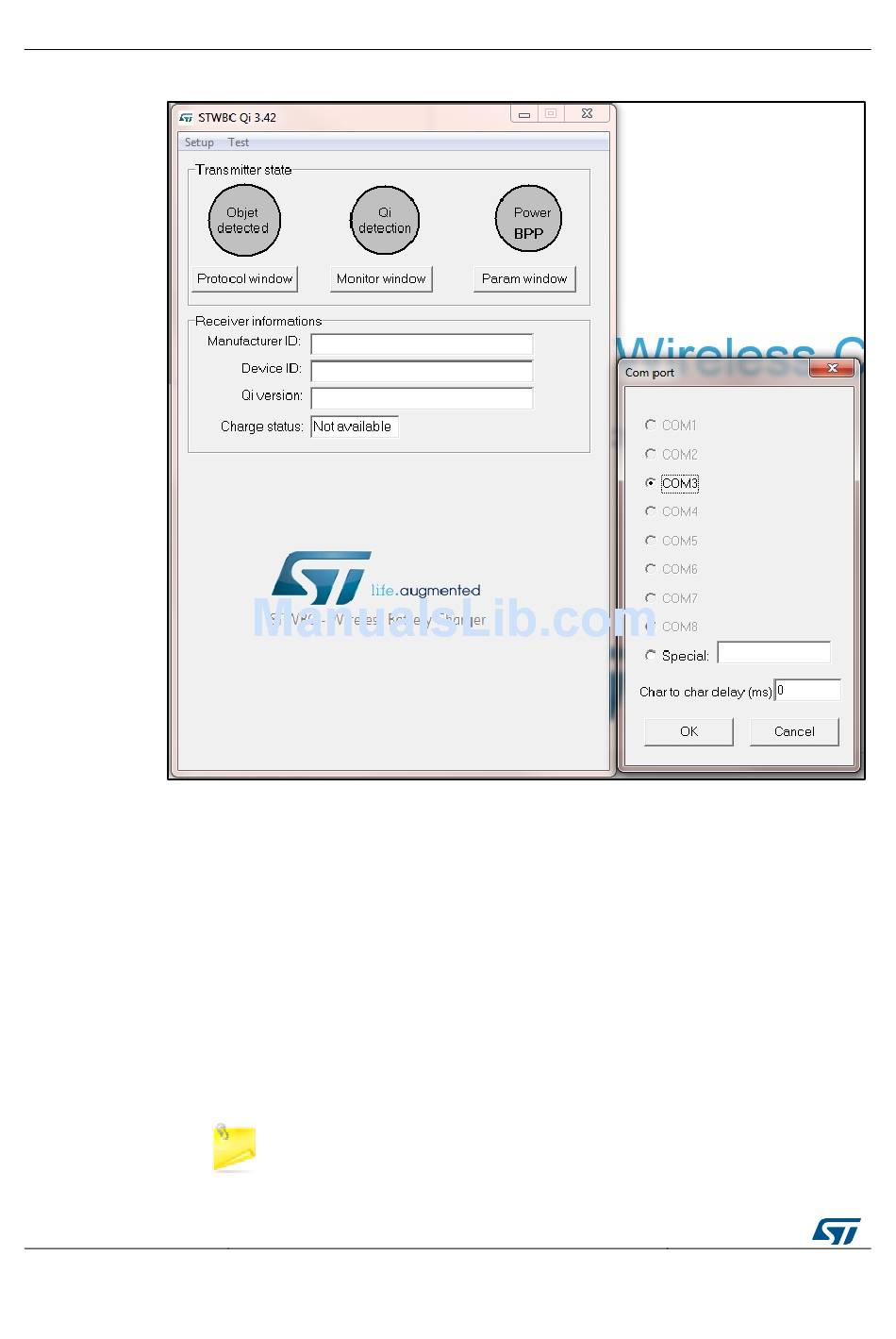

Figure 8: STSW-STWBCGUI start screen
Do not connect the transmitter board for the moment.
DocID031141 Rev 1
UM2301
