Stand-By Consumption; Figure 47: Steval-Isb044V1 Evaluation Board: Efficiency Performance With Mp1B Rx - ST STEVAL-ISB044V1 User Manual

UM2301

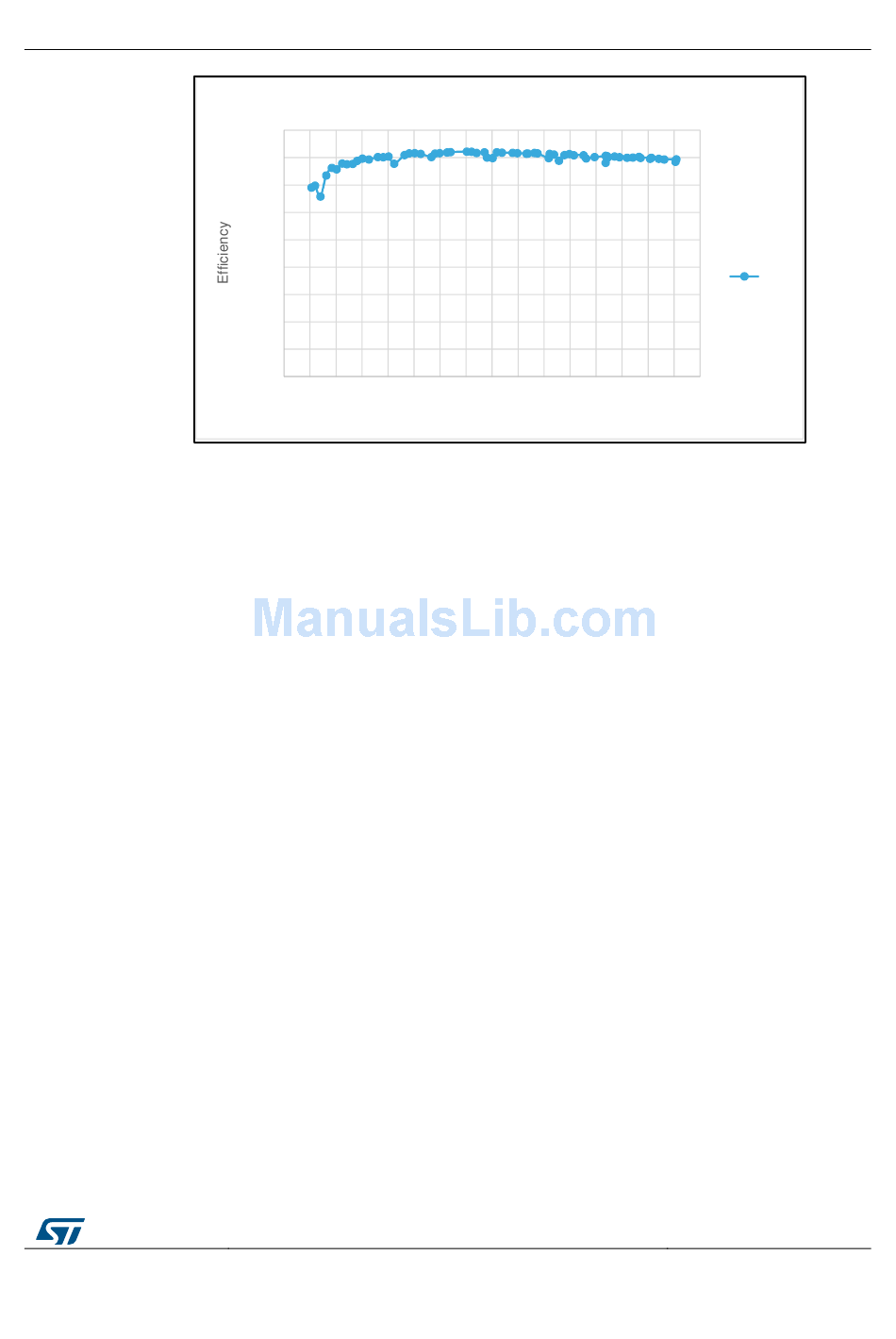

Figure 47: STEVAL-ISB044V1 evaluation board: efficiency performance with MP1B Rx

The maximum efficiency is 82.2% at 7 W.
5.4

Stand-by consumption

In stand-by, when the board is supplied at 12 V, very low power consumption is achieved.
In this mode, device detection is still ensured; power consumption is reduced down to 1.4
mA average.
The STEVAL-ISB044V1 evaluation board has a low stand-by power of only 17 mW.
To measure this low power consumption, the UART cable must be unplugged.
90.0%
80.0%
70.0%
60.0%
50.0%
40.0%
30.0%
20.0%
10.0%
0.0%
0 1 2 3 4
DocID031141 Rev 1
5 6 7 8 9 10 11 12 13 14 15 16
Rx output Power (W)
GUI and evaluation procedure
