UM2301
At the end of the test, in the protocol window, the AUTOCAL_TEST_DONE is set and in
the test window the status is
3
Start the test again if the returned status is different.
5.2.2

QFOD calibration procedure

1
Set the test number to 2
2 Click the Start button
At the end of the test, in the protocol window, the AUTOCAL_TEST_DONE is set
and in the test window the status is Test Done.
Test Done
.

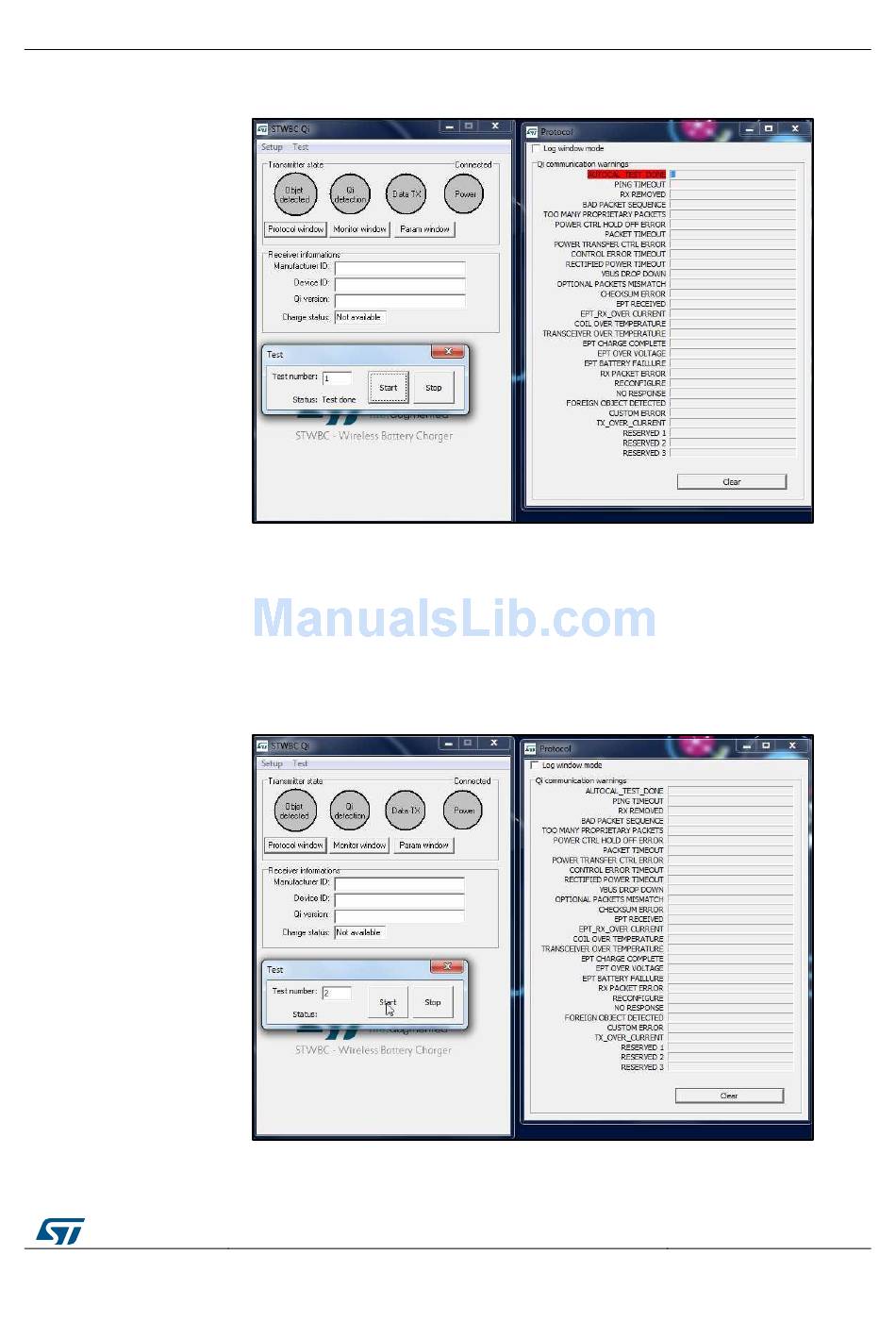

Figure 43: STSW-STWBCGUI: test result

Figure 44: STSW-STWBCGUI: QFOD test

DocID031141 Rev 1
GUI and evaluation procedure
35/57
