Getting started with BlueNRG-LP evaluation boards
Introduction
This document provides basic information on
BlueNRG-LP
development kits hardware and
software setup operations. It also describes the key information about the associated
software development package
STSW-BNRGLP-DK
and some common troubleshooting
cases.
The
BlueNRG-LP
device is a low power Bluetooth® Low Energy (LE) system-on-chip,
compliant with the Bluetooth® specification and supports master, slave and simultaneous
master-and-slave roles. The device also supports the Bluetooth Low Energy data length
extension feature, 2 Mbps, Long Range and extended advertising features.
The following
BlueNRG-LP
kits are available:
•
STEVAL-IDB011V1
(QFN48 package) development platform
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ST STEVAL-IDB011V1
Summary of Contents for ST STEVAL-IDB011V1
- Page 1 Bluetooth® specification and supports master, slave and simultaneous master-and-slave roles. The device also supports the Bluetooth Low Energy data length extension feature, 2 Mbps, Long Range and extended advertising features. The following BlueNRG-LP kits are available: • STEVAL-IDB011V1 (QFN48 package) development platform...
-
Page 2: Table Of Contents
Development platforms ................3 Getting Started ..................... 3 Powering up the evaluation board ..............3 Install the ST BLE Sensor app for smartphones (central role) ....... 4 Run ST BLE Sensor app for smartphones ............ 4 Software demonstration applications ............6 Troubleshooting ................... -
Page 3: Development Platforms

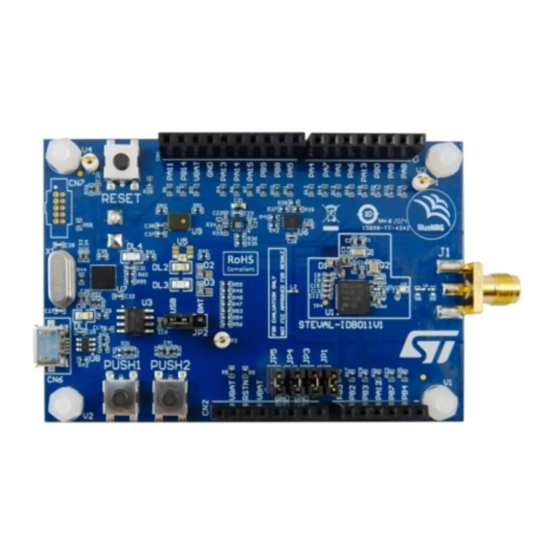

STEVAL-IDB011V1 evaluation board is preprogrammed with Bluetooth LE Sensor demonstration application for ST BLE Sensor app which allows to set and establish a connection with a smartphone (iOS or Android) running the ST BLE Sensor smartphone app (previously known as ST BlueMS). -
Page 4: Install The St Ble Sensor App For Smartphones (Central Role)
Sensor app starts advertising, waiting for a smartphone to connect to it. Install the ST BLE Sensor app for smartphones (central role) Two versions (Android and iOS) of the smartphone ST BLE Sensor app are available for download on the specific web pages (Table 2. - Page 5 Figure 5 ST BLE Sensor smartphone app environment characteristic notifications User can also plot the received acceleration values, by selecting the ST BLE Sensor app, Plot Data window, Accelerometer option. The STEVAL-IDB011V1 accelerometer sensor values (X, Y, Z) are displayed on a graphical chart.
-
Page 6: Software Demonstration Applications
• The Projects folder in SW package contains the available demonstration applications, projects, sources and header files. The Bluetooth LE Sensor Demo application for ST BLE Sensor app projects and header and source files are available on • Projects\BLE_Examples\BLE_SensorDemo_BlueMSapp folder. - Page 7 IAR Embedded Workbench for ARM (EWARM) and Keil MDK-ARM tools are needed for building the software applications running on the BlueNRG- microcontroller. NOTES: 1. For a description of the available BlueNRG-LP demonstration applications supported platforms, refer BlueNRG-LP development kits user manual (Table 2.
-
Page 8: Troubleshooting
1. Remove the jumper JP5. 2. Unplug the USB cable (if plugged). 3. Plug the USB cable. 4. The mass storage device “ST IDB011VX” should be present among the devices in Windows “Devices and drives”. 5. Put back the jumper JP5 (fitted position). -
Page 9: Acronyms And Abbreviations
UMxxxx Acronyms and abbreviations Table 1 List of acronyms Acronym Description Bluetooth LE Bluetooth Low Energy Development kit Software Universal serial bus... -
Page 10: References
Where Description BlueNRG-LP www.st.com/bluenrg-lp BlueNRG-LP device Bluetooth Low web page Energy wireless System on Chip STEVAL-IDB011V1 STEVAL-IDB011V1 www.st.com/bluenrg-lp, Tools and Software, Solution platform web page Evaluation Tools section Bluetooth Low Bluetooth Low https://www.bluetooth.com/specifications/bluetooth-core- Energy specification Energy specification/ web page Specification ST BLE Sensor app https://www.st.com/en/embedded-software/stblesensor.html... -
Page 11: Revision History
UMxxxx Revision history Table 3 Revision history Date Revision Change 19-Oct-2020 Initial release... - Page 12 ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
