UM2094
User manual
Getting started with STEVAL-IDB007Vx, STEVAL-IDB008Vx and
STEVAL-IDB009Vx evaluation boards
Introduction
The STEVAL-IDB007Vx (STEVAL-IDB007V1/STEVAL-IDB007V2) is an evaluation board based on
BlueNRG-1
(QFN32
package).
The STEVAL-IDB008Vx (STEVAL-IDB008V1/STEVAL-IDB008V2) is an evaluation board based on
BlueNRG-2
(QFN32
package).
The STEVAL-IDB009Vx (STEVAL-IDB009V1) is an evaluation board based on BlueNRG-2 (QFN48 package).
®
BlueNRG-1 (QFN32 package) and BlueNRG-2 (QFN32 and QFN48 packages) are low power Bluetooth
smart systems-on-
®
chip compliant with the Bluetooth
specification and support master, slave and simultaneous master-and-slave roles.
The document content is valid for the STEVAL-IDB007Vx, STEVAL-IDB008Vx and STEVAL-IDB009Vx platforms. Any specific
difference is highlighted whenever it is needed.
UM2094 - Rev 5 - November 2018
www.st.com
For further information contact your local STMicroelectronics sales office.
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Related Manuals for ST STEVAL-IDB007V Series
Summary of Contents for ST STEVAL-IDB007V Series
- Page 1 The document content is valid for the STEVAL-IDB007Vx, STEVAL-IDB008Vx and STEVAL-IDB009Vx platforms. Any specific difference is highlighted whenever it is needed. UM2094 - Rev 5 - November 2018 www.st.com For further information contact your local STMicroelectronics sales office. Arrow.com. Downloaded from...
-
Page 2: Development Platforms

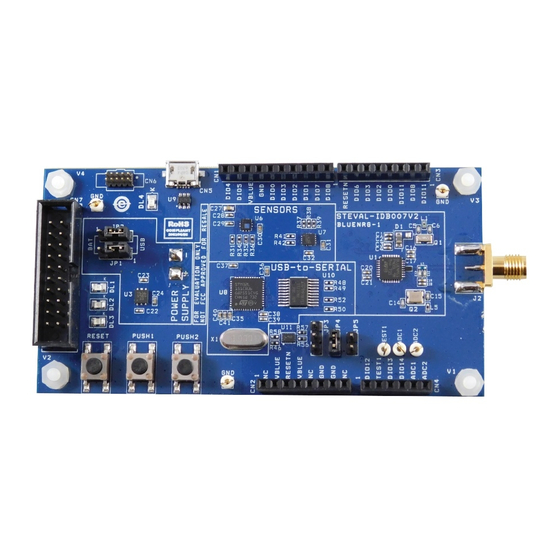

UM2094 Development platforms Development platforms Figure 1. STEVAL-IDB007V1 development platform Figure 2. STEVAL-IDB007V2 development platform Figure 3. STEVAL-IDB008V1 development platform UM2094 - Rev 5 page 2/14 Arrow.com. Arrow.com. Downloaded from Downloaded from... -
Page 3: Figure 4. Steval-Idb008V2 Development Platform
UM2094 Development platforms Figure 4. STEVAL-IDB008V2 development platform Figure 5. STEVAL-IDB009V1 development platform UM2094 - Rev 5 page 3/14 Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from... -
Page 4: Acronyms And Abbreviations
UM2094 Acronyms and abbreviations Acronyms and abbreviations Table 1. List of acronyms Acronym Description Bluetooth low energy Development kit Software Universal serial bus UM2094 - Rev 5 page 4/14 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 5: Getting Started
UM2094 Getting started Getting started The evaluation board is preprogrammed with sensor profile firmware (BLE_SensorDemo.hex) which allows to set and establish a connection with a smartphone (iOS or Android) running a BlueNRG sensor application which works with the sensor profile firmware running on the STEVAL-IDB007Vx, STEVAL-IDB008Vx or STEVAL- IBD009Vx evaluation board. -
Page 6: Install The Bluenrg App For Smartphones (Central Role)
UM2094 Install the BlueNRG app for smartphones (central role) Figure 6. Board power options Install the BlueNRG app for smartphones (central role) • Two versions (Android and iOS) of the smartphone sensor application are available for download on the specific web pages (Table 2. -
Page 7: Figure 7. Smartphone Bluenrg Sensorapp Acceleration Notification
UM2094 Run BlueNRG app for smartphones Figure 7. Smartphone BlueNRG SensorApp acceleration notification • Data from environmental sensors are also periodically read and displayed. Figure 8. Smartphone BlueNRG SensorApp RSSI notifications UM2094 - Rev 5 page 7/14 Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 8: Software Demonstration Applications
UM2094 Software demonstration applications Software demonstration applications • In order to develop a software application for the STEVAL-IDB007Vx, STEVAL-IDB008Vx or STEVAL- IDB009Vx evaluation board, it is recommended to start with the reference demonstration applications provided within the BlueNRG-1_2 DK SW package for BlueNRG-1, BlueNRG-2 BLE stack v2.x family (STSW-BLUENRG1-DK) available on the STEVAL-IDB007Vx, STEVAL-IDB008Vx, STEVAL-IDB009Vx web... -
Page 9: References
Bluetooth Low Energy specification web Specification adopted-specifications page Smartphone Android 4.3 https://play.google.com/store/apps/details? Android 4.3 BlueNRG Sensor App web page Sensor App id=com.st.blunrg https://itunes.apple.com/us/app/bluenrg/ Smartphone IoS Sensor App IoS BlueNRG Sensor App web page id705873549?l=it&ls=1&mt=8 STEVAL-IDB007V1, STEVAL-IDB007V2, BlueNRG-1_2 DK SW package for STEVAL-IDB008V1, STEVAL-IDB008V2 BlueNRG_1, BlueNRG-2 BLE stack v2.x... -
Page 10: Revision History
UM2094 Revision history Table 3. Document revision history Date Revision Changes 14-Jul-2016 Initial release. Updated STEVAL-IDB007V1 Bluetooth® low energy evaluation board on the cover page. 19-Dec-2016 Added: reference to STEVAL-IDB008V1 BlueNRG-2 evaluation platform, reference to BlueNRG-1_2 23-Oct-2017 DK SW package for BLE stack v2.x family and reference to BlueNRG-1_V1 DK SW package for BLE stack v1.x family. -
Page 11: Table Of Contents
UM2094 Contents Contents Development platforms ............2 Acronyms and abbreviations . - Page 12 UM2094 List of tables List of tables Table 1. List of acronyms ..............4 Table 2.
- Page 13 UM2094 List of figures List of figures Figure 1. STEVAL-IDB007V1 development platform ..........2 Figure 2.
- Page 14 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
