GUI and evaluation procedure
You can also monitor STWBC-EP internal variables such as bridge voltage and frequency,
Rx reported power, coil temperature, etc.
The GUI user-friendly interface allows efficient system adjustment (thresholds, regulation
error) and lets you store parameters to and load parameters from your computer.
The parameters have the following levels of protection:
Level 0: parameters can be modified without protection
30/57

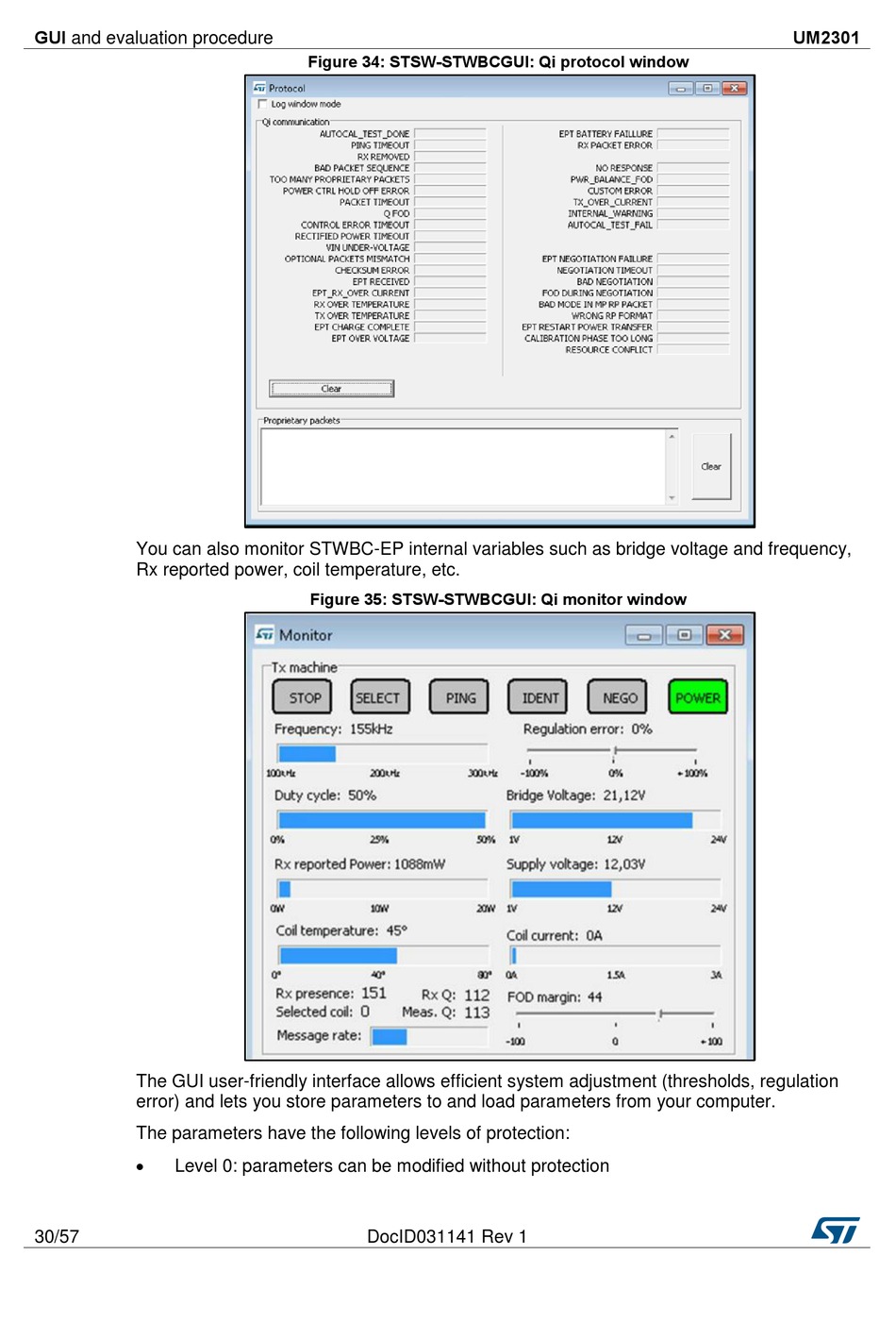

Figure 34: STSW-STWBCGUI: Qi protocol window
Figure 35: STSW-STWBCGUI: Qi monitor window
DocID031141 Rev 1
UM2301
