Download procedure
3
As prompted, select the CAB file containing the firmware to download
4
Supply the board with 12 V and keep it powered.
5
When the DOS window appears, connect the transmitter board to the dongle using
a micro-USB cable.
16/57

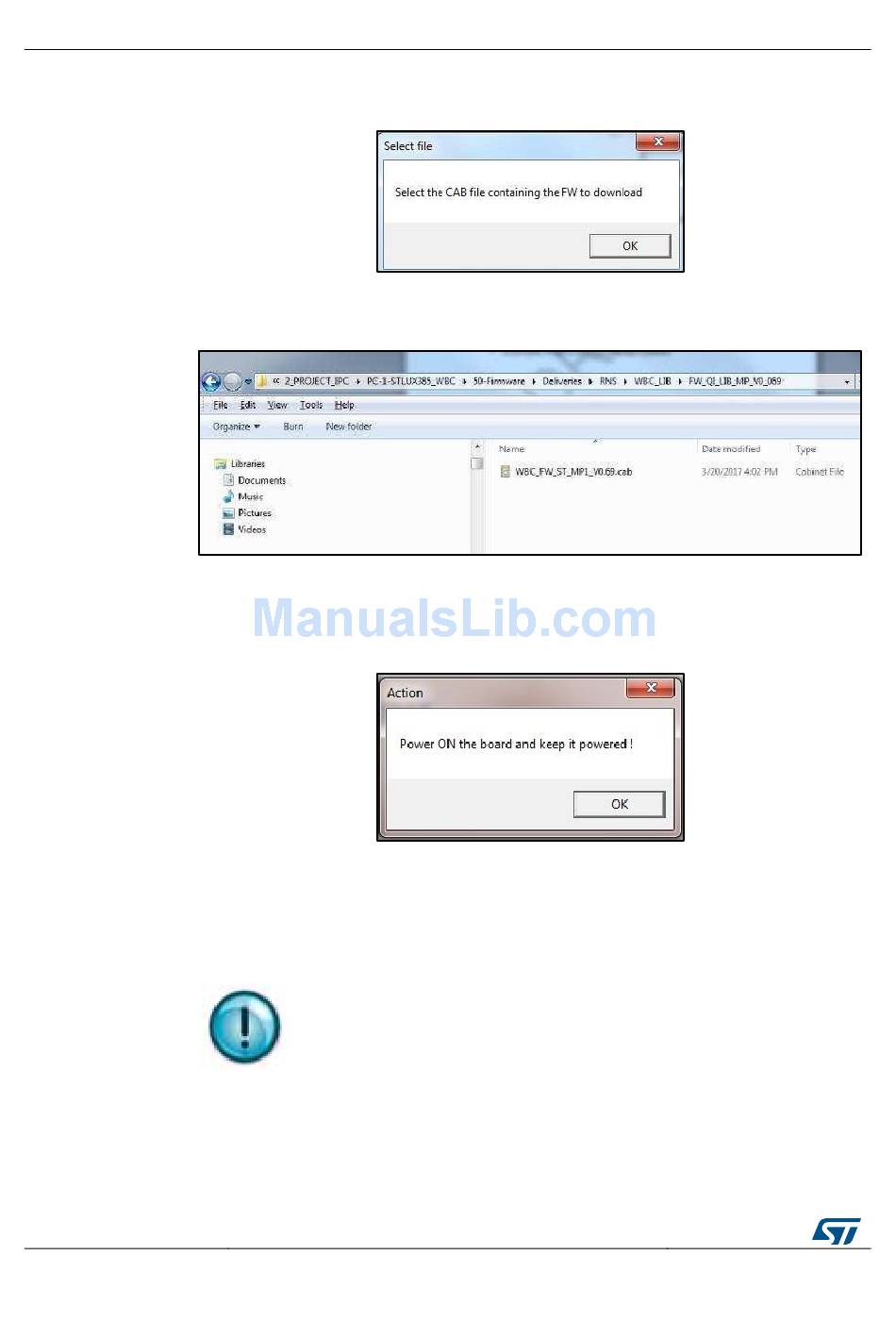

Figure 11: Firmware file selection message
Figure 12: Firmware file selection
Figure 13: Power on message
Take care to connect it to the USB debug connector J501
on the opposite side of the power supply connection.
DocID031141 Rev 1
UM2301
