UM2293
User manual
Getting started with the STEVAL-ISC004V1 evaluation board for the
STUSB4710A USB PD controller with on-board DC-DC
Introduction
The STEVAL-ISC004V1 evaluation board is a ready-to-use USB PD source based on STUSB4710A and ST1S14 ICs. It
demonstrates how to convert a fixed voltage DC power input into a USB PD variable voltage output.
The STUSB4710A acts as a Type-C port interface that ensures power delivery advertising and negotiation, drives the DC-to-DC
converter and power paths, and monitors V
voltage.
BUS
The ST1S14 device manages the step down conversion from the DC input port to the negotiated V
voltage.
BUS
The various LEDs indicate the operating status of the STUSB4710A and USB PD port.
The USB PD port is pre-configured with five different PDOs to address a broad range of applications (5 V, 9 V, 12 V, 15 V and
20 V).

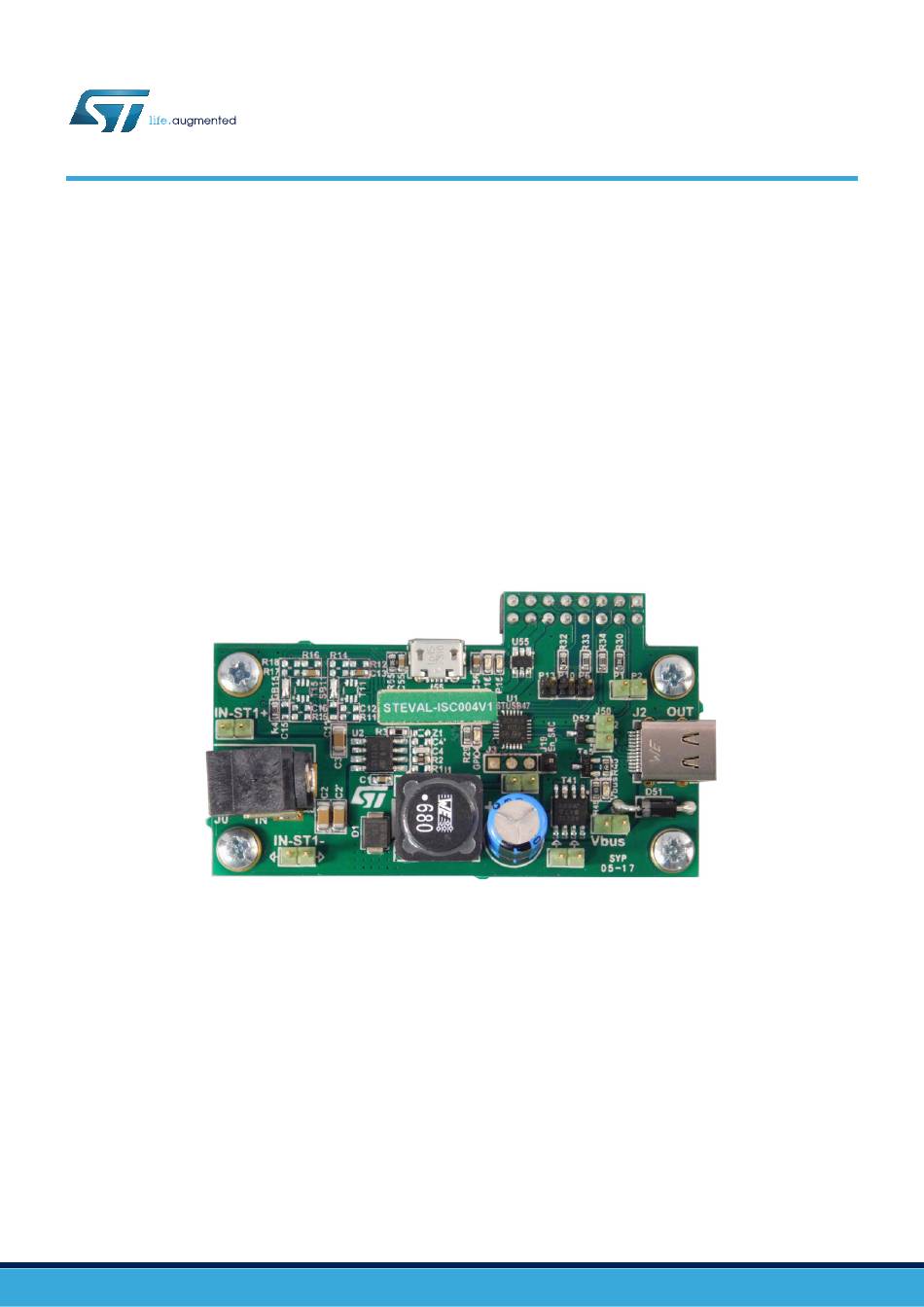

Figure 1.
STEVAL-ISC004V1 evaluation board
UM2293 - Rev 2 - May 2019
www.st.com
For further information contact your local STMicroelectronics sales office.

Advertisement

loading
Need help?

Need help?

Do you have a question about the STEVAL-ISC004V1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ST STEVAL-ISC004V1

  • Page 1 STUSB4710A USB PD controller with on-board DC-DC Introduction The STEVAL-ISC004V1 evaluation board is a ready-to-use USB PD source based on STUSB4710A and ST1S14 ICs. It demonstrates how to convert a fixed voltage DC power input into a USB PD variable voltage output.
  • Page 2 USB PD board overview USB PD board overview The STEVAL-ISC004V1 USB Type-C™ port is pre-configured with 5 PDOs at fixed voltage node (5 V, 9 V, 12 V, 15 V and 20 V). The ST1S14 DC-DC is used as a step-down converter.
  • Page 3 UM2293 How to use the board Figure 3. STEVAL-ISC004V1 connected to PNUCLEO-USB001 as a sink UM2293 - Rev 2 page 3/14...
  • Page 4: Schematic Diagram

    UM2293 Schematic diagram Schematic diagram Figure 4. STEVAL-ISC004V1 circuit schematic UM2293 - Rev 2 page 4/14...
  • Page 5: Bill Of Materials

    UM2293 Bill of materials Bill of materials Table 1. STEVAL-ISC004V1 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code 100nF, 50V Capacitor X7R Würth Elektronik 885012206095 ±10% 0603 C2, C2', 10µF, 25V Capacitor X5R Würth Elektronik 885012108021 ±20% 1206...
  • Page 6 UM2293 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code 16-position 2x8, 0.100" receptacle Würth Elektronik 61301621821 (2.54mm) connector, through hole gold Receptacle Horizontal THR USB 3.1 Type WR-COM 1.6mm Würth Elektronik 632723300011 PCB thickness, USB 2.0 Type SMT Horizontal 5 Würth Elektronik 629105136821...
  • Page 7 UM2293 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code N-channel Trench 60V, 300mA MOSFET, SOT 2N7002 23-3L Autonomous USB PD controller with integrated STUSB4710AQTR discharge path in QFN24 4x4mm step-down 3A out, switching ST1S14PHR 5.5V-48V in regulator, HSOP-8 Ultralow IQ Low- 24V in, Dropout Regulator,...
  • Page 8: Board Layout

    UM2293 Board layout Board layout Figure 5. STEVAL-ISC004V1: top layer Figure 6. STEVAL-ISC004V1: bottom layer UM2293 - Rev 2 page 8/14...
  • Page 9 UM2293 Board layout Figure 7. STEVAL-ISC004V1: top silkscreen Figure 8. STEVAL-ISC004V1: bottom silkscreen UM2293 - Rev 2 page 9/14...
  • Page 10 UM2293 Layout constraints Figure 9. STEVAL-ISC004V1: top assembly Figure 10. STEVAL-ISC004V1: bottom assembly Layout constraints As the VBUS path can carry up to 3 A, power track between DC-DC, Power MOS and Type-C connector is large enough. Special care must be taken for DC-DC layout and thermal dissipation.
  • Page 11 The STUSB4710A settings are stored in non-volatile memory (NVM), accessible through I²C. STMicroelectronics provides a graphical user interface for evaluation purposes to program this memory via PC. The STEVAL-ISC004V1 PDO memory settings must be aligned with the hardware resistor configuration. Figure 11.
  • Page 12 R 7 = − R 3 − R 4 − R 5 − R 6 V OUT − 1.22 Table 2. STEVAL-ISC004V1 default resistors R 2 ∙ 1.22 Theoretical value (Ω) V OUT − 1.22 Real resistor value in 1% series...
  • Page 13: Revision History

    UM2293 Revision history Table 3. Document revision history Date Version Changes 03-Oct-2017 Initial release. Updated Section 3 Bill of materials 13-May-2019 Formatting updates throughout document UM2293 - Rev 2 page 13/14...
  • Page 14 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
