Download procedure

To download the firmware to the board, the user has to install the GUI software which

allows a complete board monitoring via UART signals. Thus, to use the STSW-

STWBCGUI, UART signals must be accessible.

In case of board issues, ST-LINK and STVP software can be installed to erase the

STWBC-EP Flash memory.

3.1

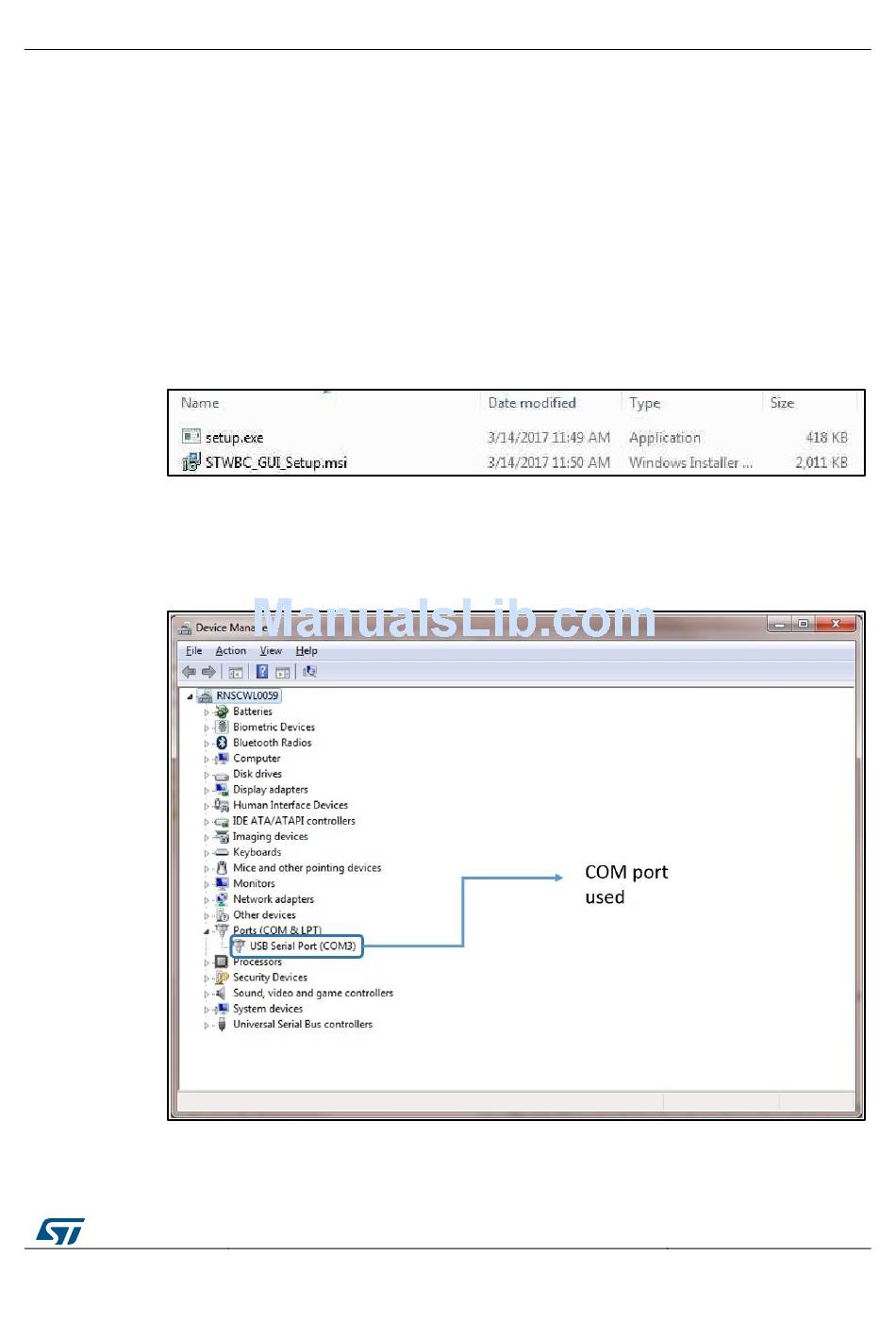

Install the GUI by launching the STWBC_GUI_Setup.msi installation file

Connect the wireless power transmitter board to the PC via the USB-to-UART

connection on J501 UART connector

Check Windows Device Manager to identify the correct port number and select the

appropriate USB serial COM port

Enter a specific COM port number (if not listed in the selection window) in the

Special text box (e.g.,"COM12" or the specific syntax "\\.\COM12")

If the GUI is switched off, ensure that the COM port is not used on your computer.
