UM2301
5
GUI and evaluation procedure
The STSW-STWBCGUI thoroughly monitors STWBC-EP operations.
The main screen provides transmitter and Qi receiver status information.
The STSW-STWBCGUI can also display the Rx to Tx communication protocol errors,
useful for system debugging.

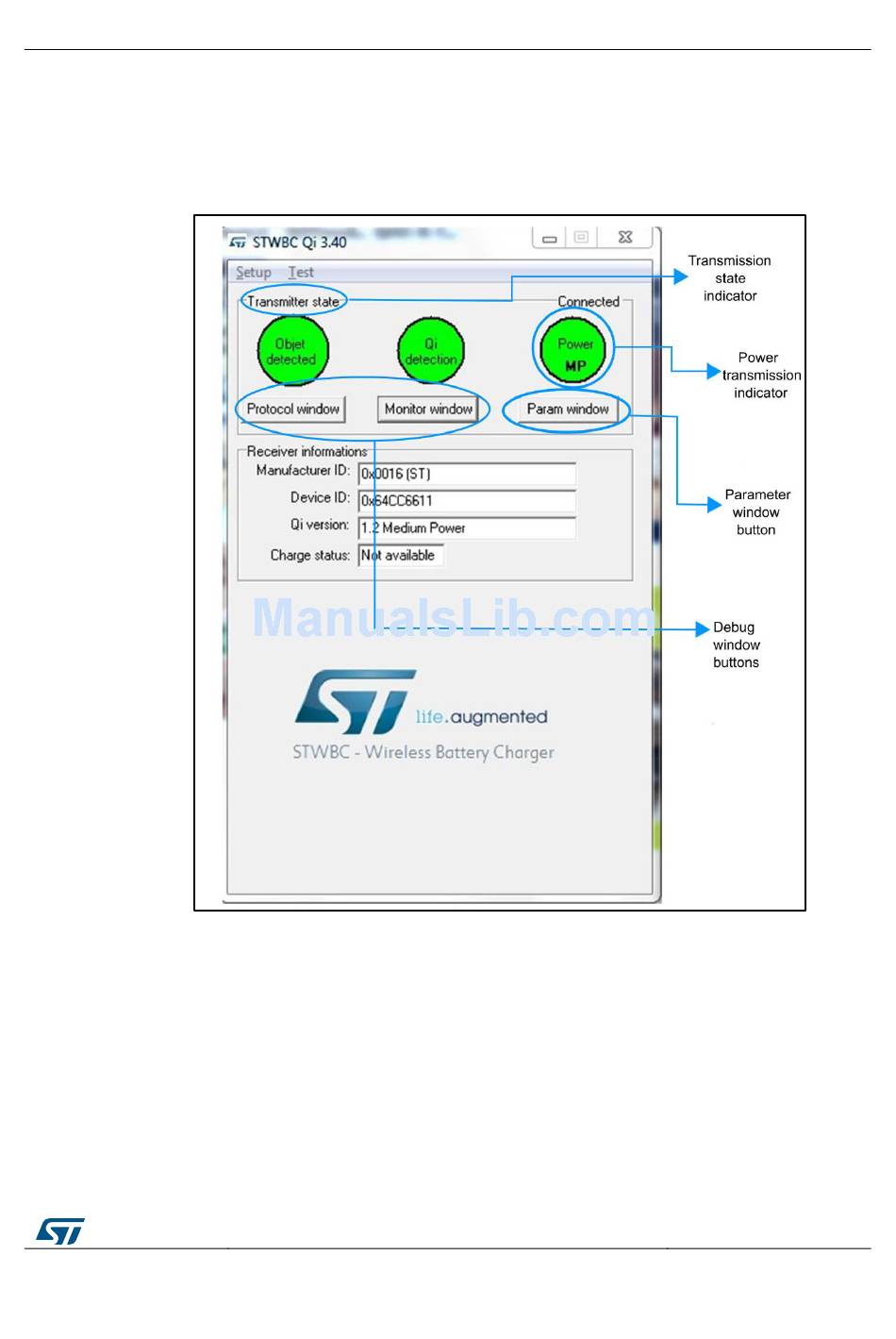

Figure 33: STSW-STWBCGUI: object detected and charge in progress
DocID031141 Rev 1
GUI and evaluation procedure
29/57
