Evaluation equipment setup

4 Evaluation equipment setup
The board is powered via an external power supply or a USB charger. An electronic load is
connected to the receiver output to load up to 15 W.
On the basis of measurements, voltmeters and ammeters measure input/output voltage
and current.
4.1

External power supply

The power supply is set to 12 V/2 A for EPP mode and 5 V/2 A for BPP mode.
The board is connected to the external power supply through wires.
The jumper has to be set to select the jack/external power supply input.

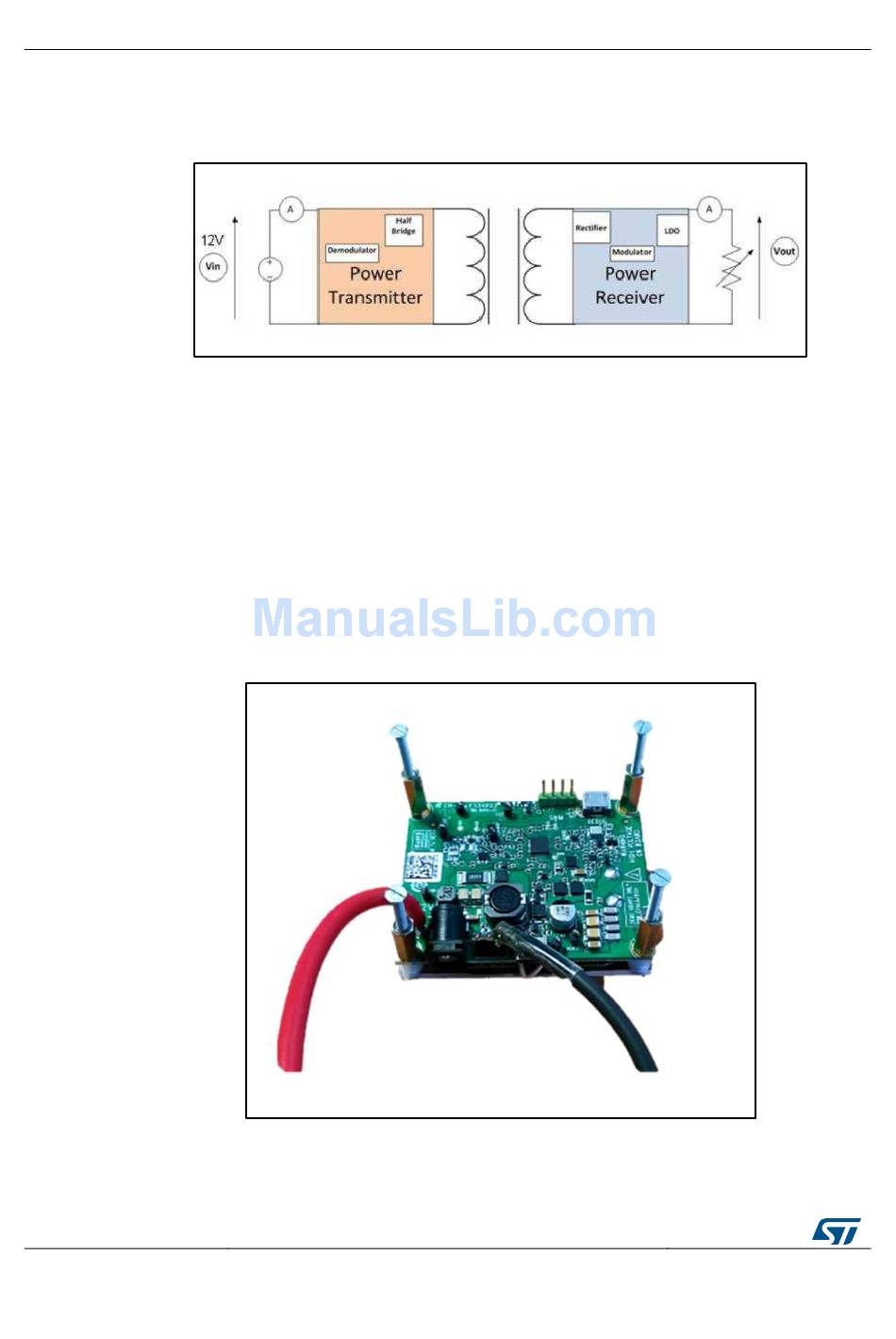

Figure 30: STEVAL-ISB044V1 evaluation board: external power supply connection
