Download procedure
4 From the STSW-STWBCGUI, select Load FW to board in the setup menu (see
Figure 10: "Firmware download via
5
As prompted, select the CAB file containing the firmware to download (see
Figure 11: "Firmware file selection
6
As prompted, power the board on and keep it powered.
7
Follow the download progress in the DOS window and power the board off when
prompted (see
In case of problems in downloading the firmware through UART (for example,
firmware corruption during update), refer to the following section.
3.3

Erasing firmware procedure using STVP

3.3.1

Requirements

To start the firmware erasing procedure using STVP, you have to install on your PC:

ST-LINK USB driver

STVP programming tool (available at www.st.com)

ST-LINK hardware tools
You also need to configure STVP as shown below.
18/57
STSW-STWBCGUI").
message").
Figure 15: "DOS window: download in

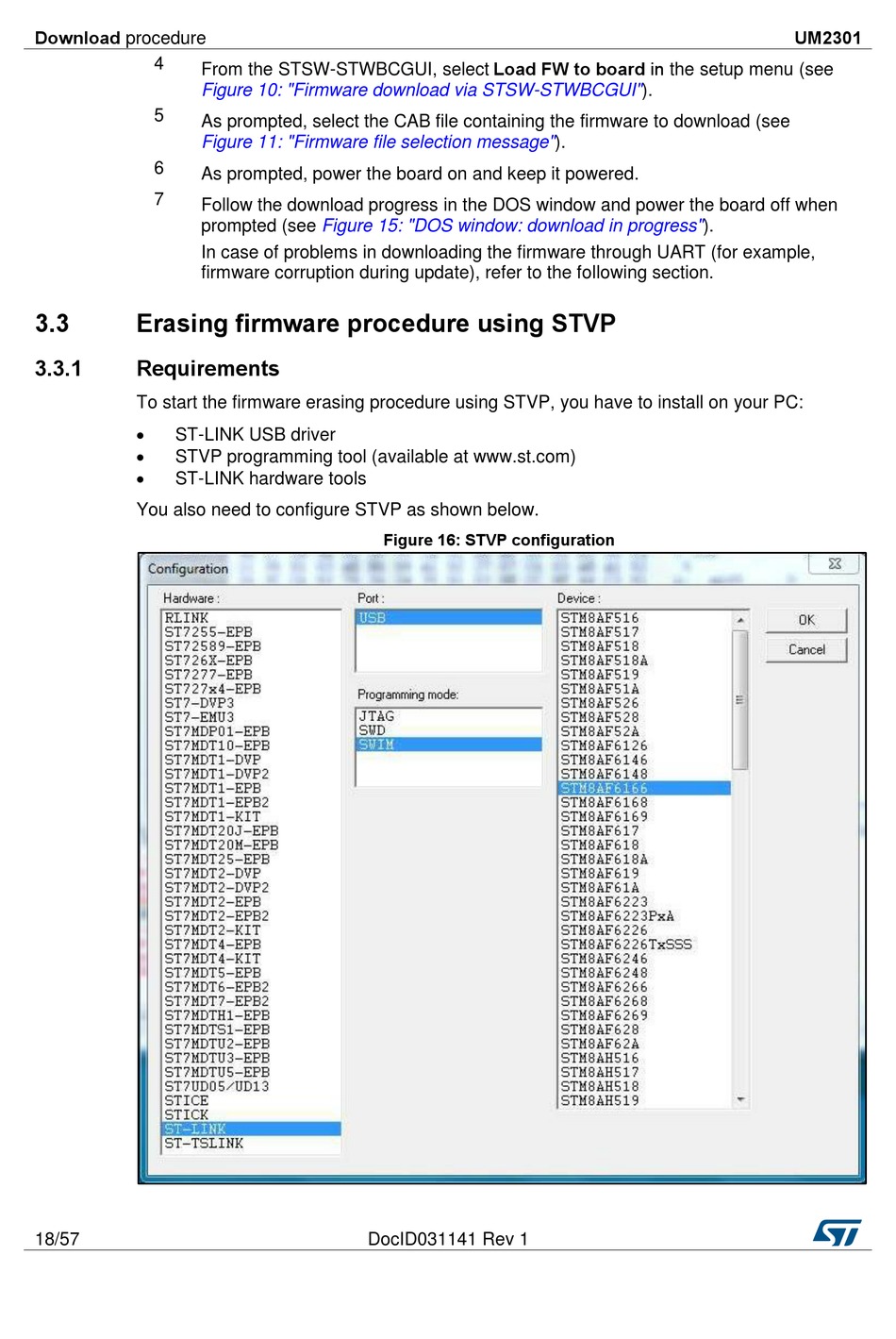

Figure 16: STVP configuration

DocID031141 Rev 1
UM2301
progress").
