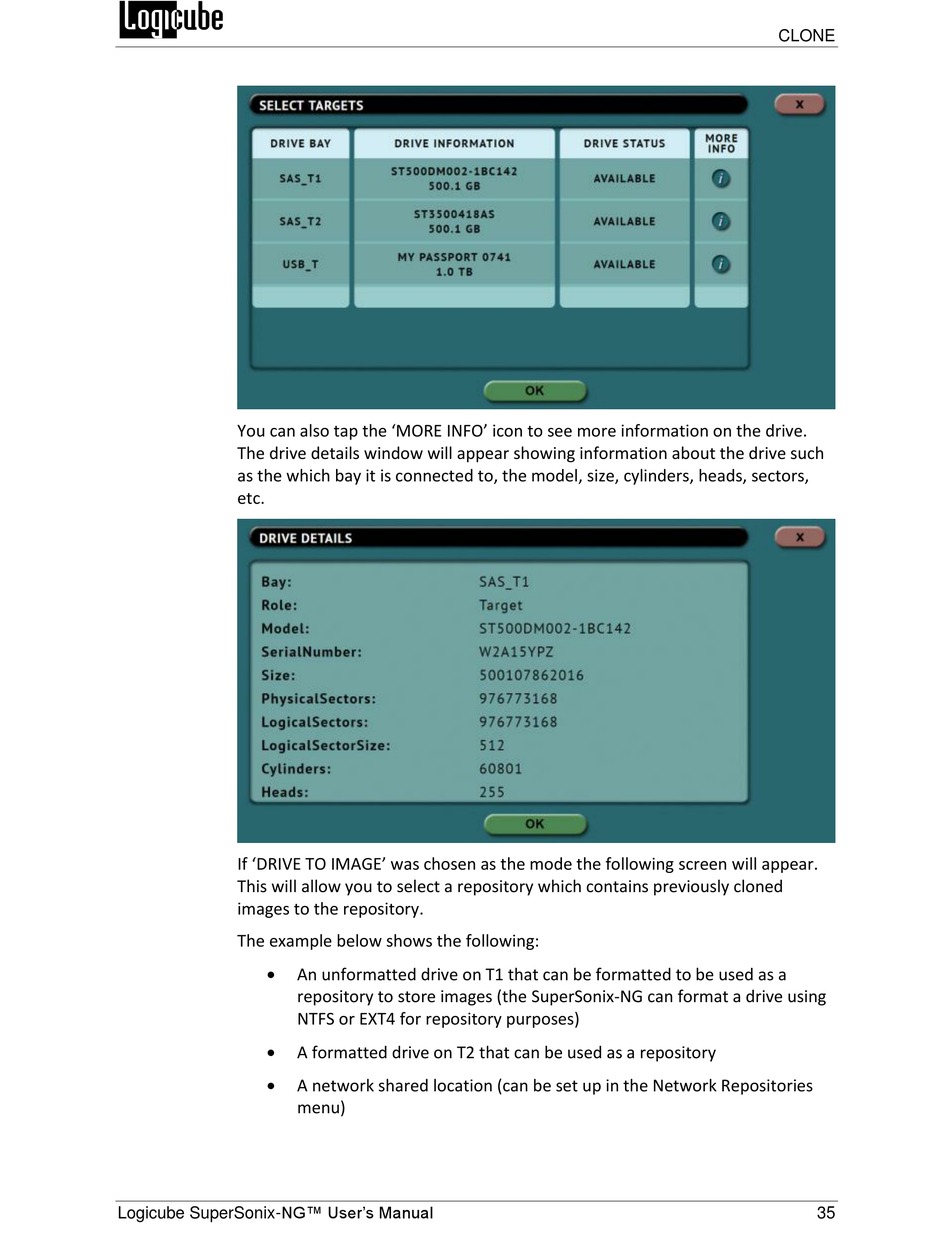

You can also tap the 'MORE INFO' icon to see more information on the drive.
The drive details window will appear showing information about the drive such
as the which bay it is connected to, the model, size, cylinders, heads, sectors,
etc.
If 'DRIVE TO IMAGE' was chosen as the mode the following screen will appear.
This will allow you to select a repository which contains previously cloned
images to the repository.
The example below shows the following:

An unformatted drive on T1 that can be formatted to be used as a
repository to store images (the SuperSonix-NG can format a drive using
NTFS or EXT4 for repository purposes)

A formatted drive on T2 that can be used as a repository

A network shared location (can be set up in the Network Repositories
menu)
