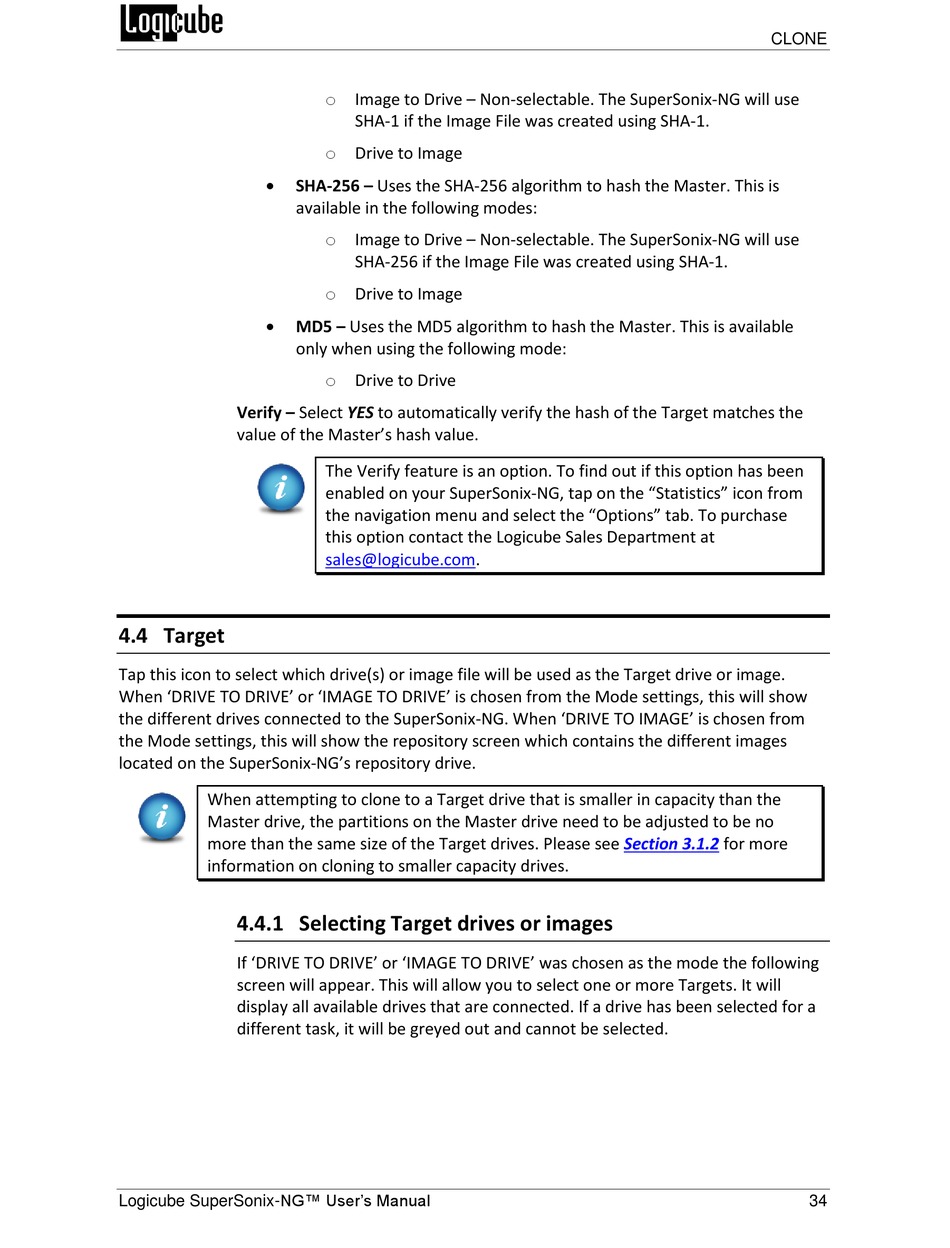

SHA-256 – Uses the SHA-256 algorithm to hash the Master. This is
available in the following modes:
MD5 – Uses the MD5 algorithm to hash the Master. This is available
only when using the following mode:
Verify – Select YES to automatically verify the hash of the Target matches the
value of the Master's hash value.
4.4 Target
Tap this icon to select which drive(s) or image file will be used as the Target drive or image.
When 'DRIVE TO DRIVE' or 'IMAGE TO DRIVE' is chosen from the Mode settings, this will show
the different drives connected to the SuperSonix-NG. When 'DRIVE TO IMAGE' is chosen from
the Mode settings, this will show the repository screen which contains the different images
located on the SuperSonix-NG's repository drive.
When attempting to clone to a Target drive that is smaller in capacity than the
Master drive, the partitions on the Master drive need to be adjusted to be no
more than the same size of the Target drives. Please see
information on cloning to smaller capacity drives.
4.4.1 Selecting Target drives or images
If 'DRIVE TO DRIVE' or 'IMAGE TO DRIVE' was chosen as the mode the following
screen will appear. This will allow you to select one or more Targets. It will
display all available drives that are connected. If a drive has been selected for a
different task, it will be greyed out and cannot be selected.
Logicube SuperSonix-NG™ User's Manual
o Image to Drive – Non-selectable. The SuperSonix-NG will use
SHA-1 if the Image File was created using SHA-1.
o Drive to Image
o Image to Drive – Non-selectable. The SuperSonix-NG will use
SHA-256 if the Image File was created using SHA-1.
o Drive to Image
o Drive to Drive
The Verify feature is an option. To find out if this option has been
enabled on your SuperSonix-NG, tap on the "Statistics" icon from
the navigation menu and select the "Options" tab. To purchase
this option contact the Logicube Sales Department at
sales@logicube.com.
CLONE
Section 3.1.2
for more
34
