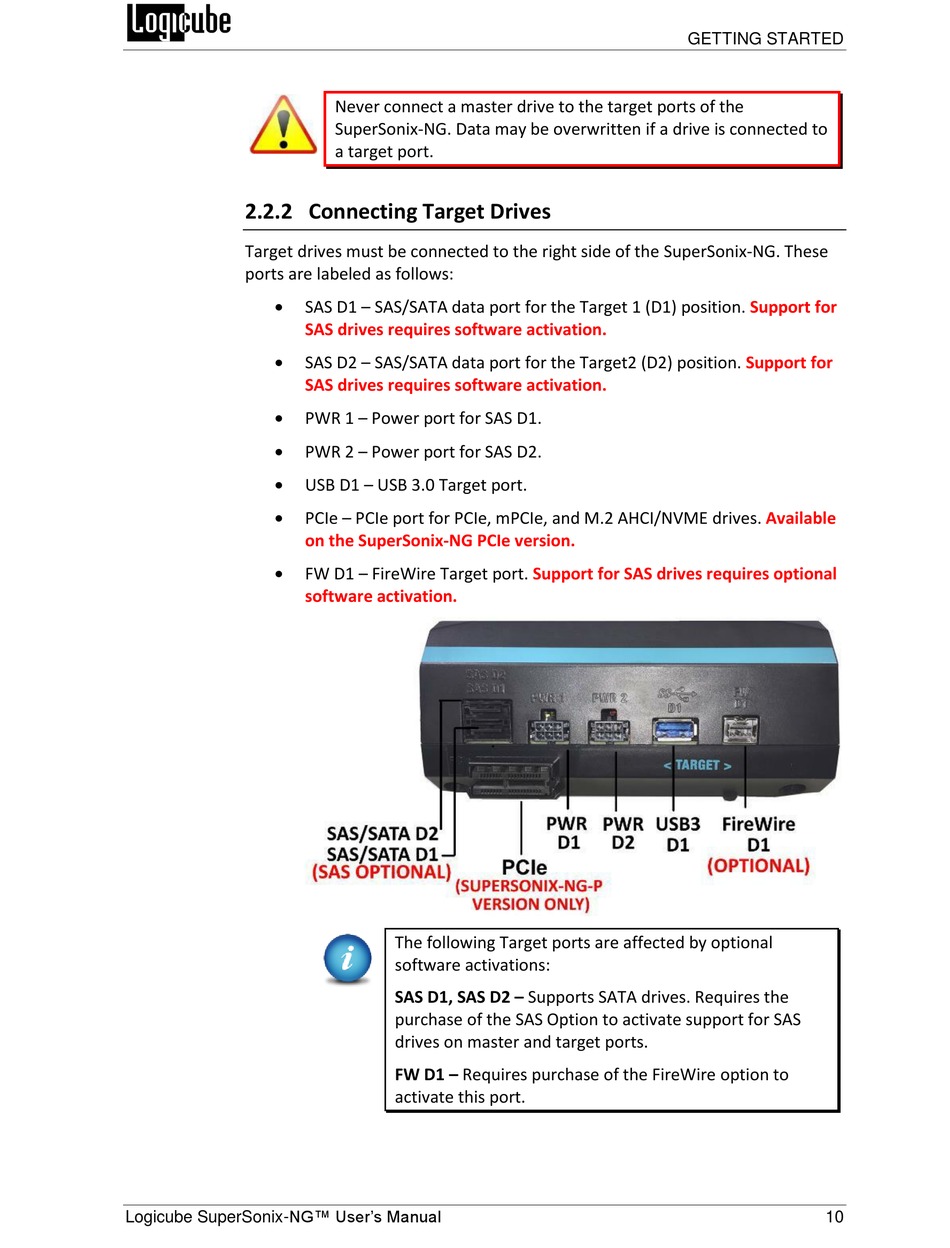

2.2.2 Connecting Target Drives

Target drives must be connected to the right side of the SuperSonix-NG. These
ports are labeled as follows:

SAS D1 – SAS/SATA data port for the Target 1 (D1) position.
SAS drives requires software activation.

SAS D2 – SAS/SATA data port for the Target2 (D2) position.
SAS drives requires software activation.

PWR 1 – Power port for SAS D1.

PWR 2 – Power port for SAS D2.

USB D1 – USB 3.0 Target port.

PCIe – PCIe port for PCIe, mPCIe, and M.2 AHCI/NVME drives.
on the SuperSonix-NG PCIe version.

FW D1 – FireWire Target port.
software activation.
Logicube SuperSonix-NG™ User's Manual
Never connect a master drive to the target ports of the
SuperSonix-NG. Data may be overwritten if a drive is connected to
a target port.
The following Target ports are affected by optional
software activations:
SAS D1, SAS D2 – Supports SATA drives. Requires the
purchase of the SAS Option to activate support for SAS
drives on master and target ports.
FW D1 – Requires purchase of the FireWire option to
activate this port.
GETTING STARTED
Support for SAS drives requires optional
Support for
Support for
Available
10
