1.8" ZIF and 1.8" PATA/IDE (optional)

eSATA (optional)

mSATA (optional)

Flash Media (optional)

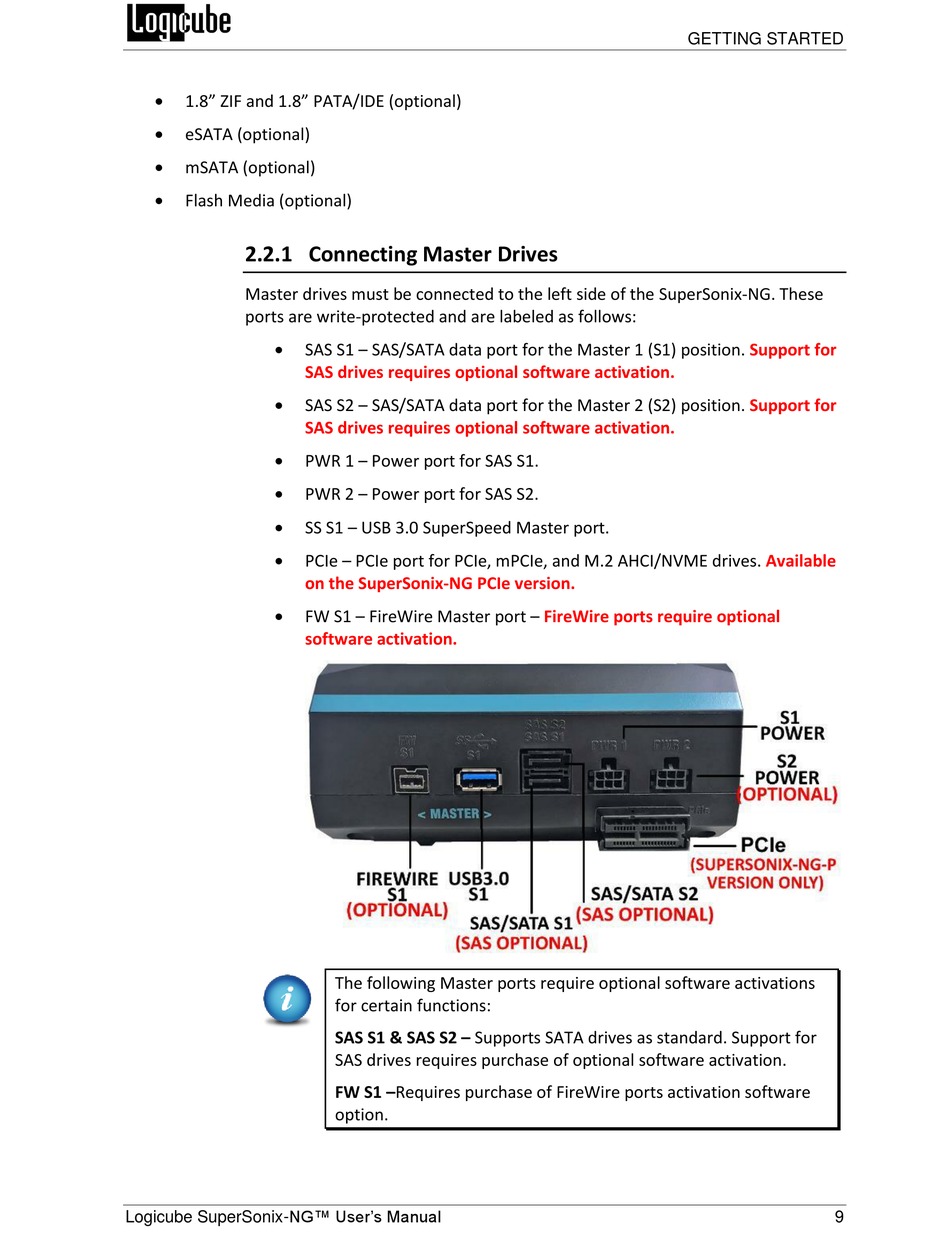

2.2.1 Connecting Master Drives

Master drives must be connected to the left side of the SuperSonix-NG. These
ports are write-protected and are labeled as follows:

SAS S1 – SAS/SATA data port for the Master 1 (S1) position.
SAS drives requires optional software activation.

SAS S2 – SAS/SATA data port for the Master 2 (S2) position.
SAS drives requires optional software activation.

PWR 1 – Power port for SAS S1.

PWR 2 – Power port for SAS S2.

SS S1 – USB 3.0 SuperSpeed Master port.

PCIe – PCIe port for PCIe, mPCIe, and M.2 AHCI/NVME drives.
on the SuperSonix-NG PCIe version.

FW S1 – FireWire Master port –
software activation.
Logicube SuperSonix-NG™ User's Manual
The following Master ports require optional software activations
for certain functions:
SAS S1 & SAS S2 – Supports SATA drives as standard. Support for
SAS drives requires purchase of optional software activation.
FW S1 –Requires purchase of FireWire ports activation software
option.
GETTING STARTED
FireWire ports require optional
Support for
Support for
Available
