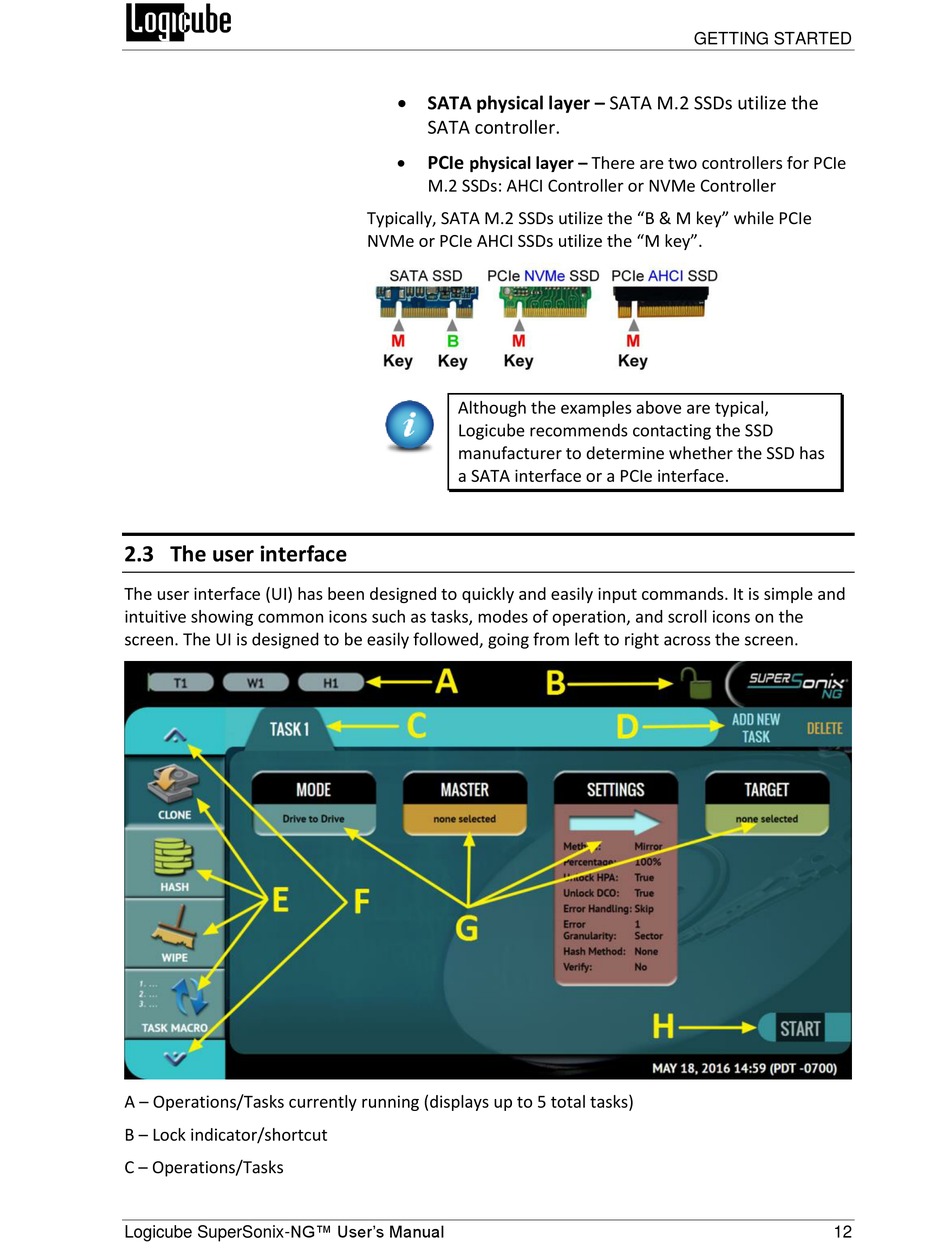

2.3 The user interface

The user interface (UI) has been designed to quickly and easily input commands. It is simple and
intuitive showing common icons such as tasks, modes of operation, and scroll icons on the
screen. The UI is designed to be easily followed, going from left to right across the screen.
A – Operations/Tasks currently running (displays up to 5 total tasks)
B – Lock indicator/shortcut
C – Operations/Tasks
Logicube SuperSonix-NG™ User's Manual
 SATA physical layer – SATA M.2 SSDs utilize the
SATA controller.

PCIe
physical layer – There are two controllers for PCIe
M.2 SSDs: AHCI Controller or NVMe Controller
Typically, SATA M.2 SSDs utilize the "B & M key" while PCIe
NVMe or PCIe AHCI SSDs utilize the "M key".
Although the examples above are typical,
Logicube recommends contacting the SSD
manufacturer to determine whether the SSD has
a SATA interface or a PCIe interface.
GETTING STARTED
