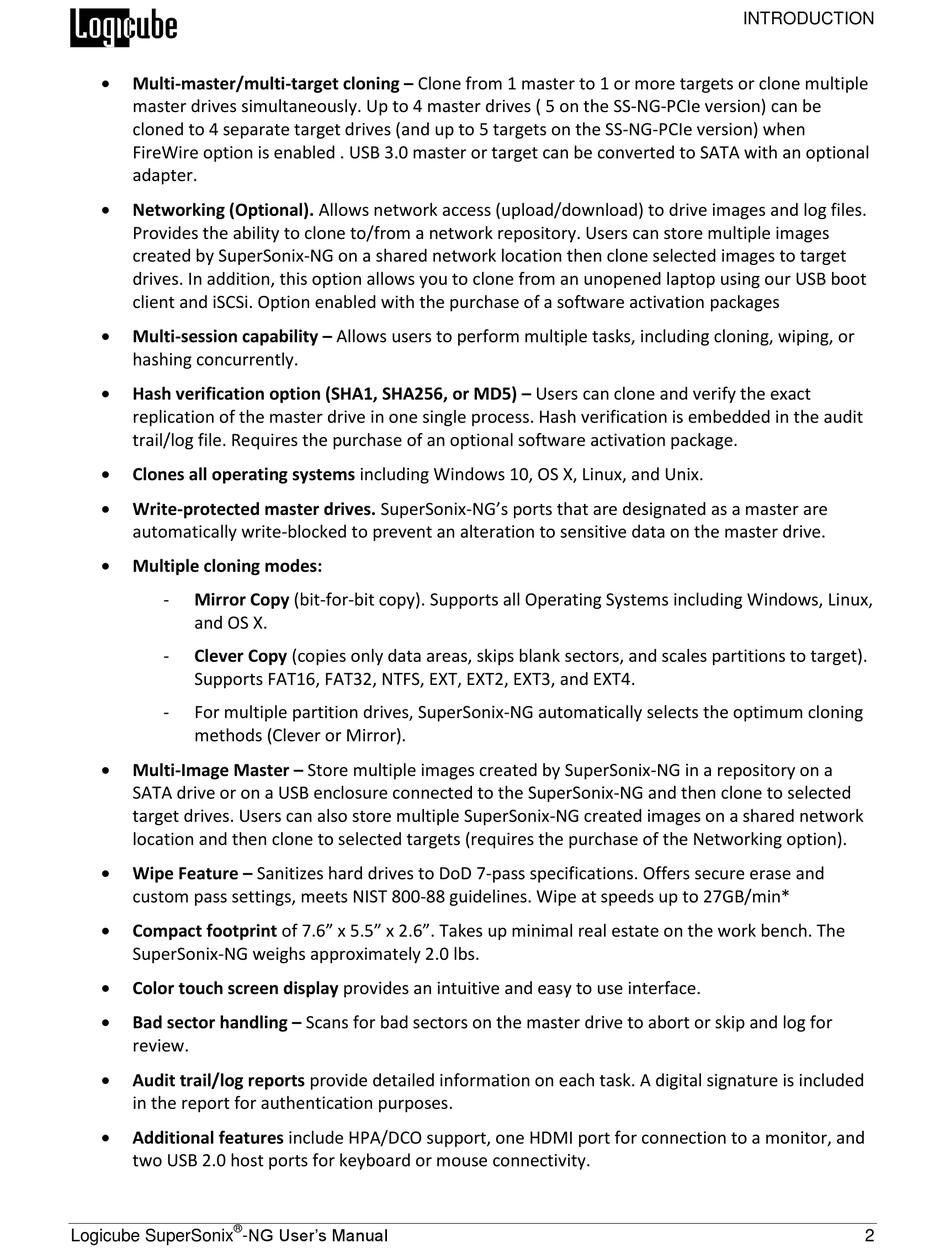

Logicube SuperSonix-NG User Manual page 10


Multi-master/multi-target cloning – Clone from 1 master to 1 or more targets or clone multiple
master drives simultaneously. Up to 4 master drives ( 5 on the SS-NG-PCIe version) can be
cloned to 4 separate target drives (and up to 5 targets on the SS-NG-PCIe version) when
FireWire option is enabled . USB 3.0 master or target can be converted to SATA with an optional
adapter.

Networking (Optional). Allows network access (upload/download) to drive images and log files.
Provides the ability to clone to/from a network repository. Users can store multiple images
created by SuperSonix-NG on a shared network location then clone selected images to target
drives. In addition, this option allows you to clone from an unopened laptop using our USB boot
client and iSCSi. Option enabled with the purchase of a software activation packages

Multi-session capability – Allows users to perform multiple tasks, including cloning, wiping, or
hashing concurrently.

Hash verification option (SHA1, SHA256, or MD5) – Users can clone and verify the exact
replication of the master drive in one single process. Hash verification is embedded in the audit
trail/log file. Requires the purchase of an optional software activation package.

Clones all operating systems including Windows 10, OS X, Linux, and Unix.

Write-protected master drives. SuperSonix-NG's ports that are designated as a master are
automatically write-blocked to prevent an alteration to sensitive data on the master drive.

Multiple cloning modes:
- Mirror Copy (bit-for-bit copy). Supports all Operating Systems including Windows, Linux,
and OS X.
- Clever Copy (copies only data areas, skips blank sectors, and scales partitions to target).
Supports FAT16, FAT32, NTFS, EXT, EXT2, EXT3, and EXT4.
- For multiple partition drives, SuperSonix-NG automatically selects the optimum cloning
methods (Clever or Mirror).

Multi-Image Master – Store multiple images created by SuperSonix-NG in a repository on a
SATA drive or on a USB enclosure connected to the SuperSonix-NG and then clone to selected
target drives. Users can also store multiple SuperSonix-NG created images on a shared network
location and then clone to selected targets (requires the purchase of the Networking option).

Wipe Feature – Sanitizes hard drives to DoD 7-pass specifications. Offers secure erase and
custom pass settings, meets NIST 800-88 guidelines. Wipe at speeds up to 27GB/min*

Compact footprint of 7.6" x 5.5" x 2.6". Takes up minimal real estate on the work bench. The
SuperSonix-NG weighs approximately 2.0 lbs.

Color touch screen display provides an intuitive and easy to use interface.

Bad sector handling – Scans for bad sectors on the master drive to abort or skip and log for
review.

Audit trail/log reports provide detailed information on each task. A digital signature is included
in the report for authentication purposes.

Additional features include HPA/DCO support, one HDMI port for connection to a monitor, and
two USB 2.0 host ports for keyboard or mouse connectivity.
®
