Reader Functionality
7.2.3

Selecting Keypad Transmission Format

The AYC-x6355 has eight different keypad transmission formats.
See Table 3 in Section 7.2.3.1 for more information on keypad
transmission formats.
To select the appropriate key pad transmission format:

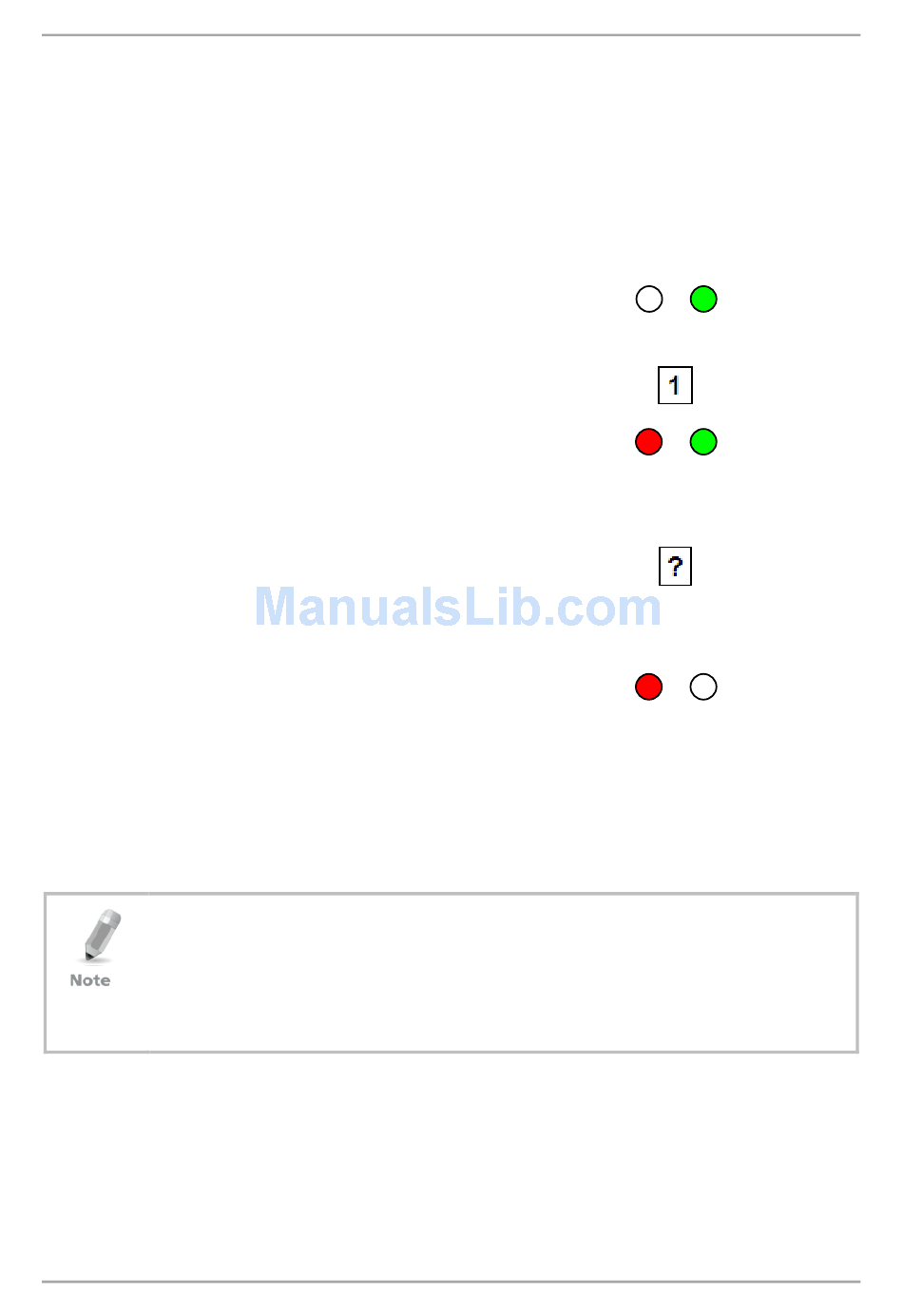

1. Enter Programming mode.
2. Press 1 to enter Menu 1.
The Transmit LED turns red.
3. Enter the appropriate option
number for the keypad
transmission format that you wish
to select.
You hear three beeps.
The system returns to Transmit
mode.
If an incorrect option number is entered, the reader returns to
Transmit mode and the keypad transmission format remains
unchanged.
• Only one keypad transmission format can be active at any one
time.
• When using the keypad transmission format "1 to 8 keys BCD,
Clock & Data" (Option 8), an additional input is required to
specify the number of keys in the PIN code.
22
Mode/Transmit
Mode/Transmit
Mode/Transmit
