Reader Functionality

Upon power-on reset, the unit searches for the presence of Rosslare's

secure application appurtenances. If a secured controller is not

detected, it is automatically configured as a reader, as indicated by

the red Mode LED.

This chapter explains how the AYC-x6355 series functions as a reader.

7.1

When the unit is in Transmit mode, it is ready to receive data from a

presented proximity card or from an entered PIN code.

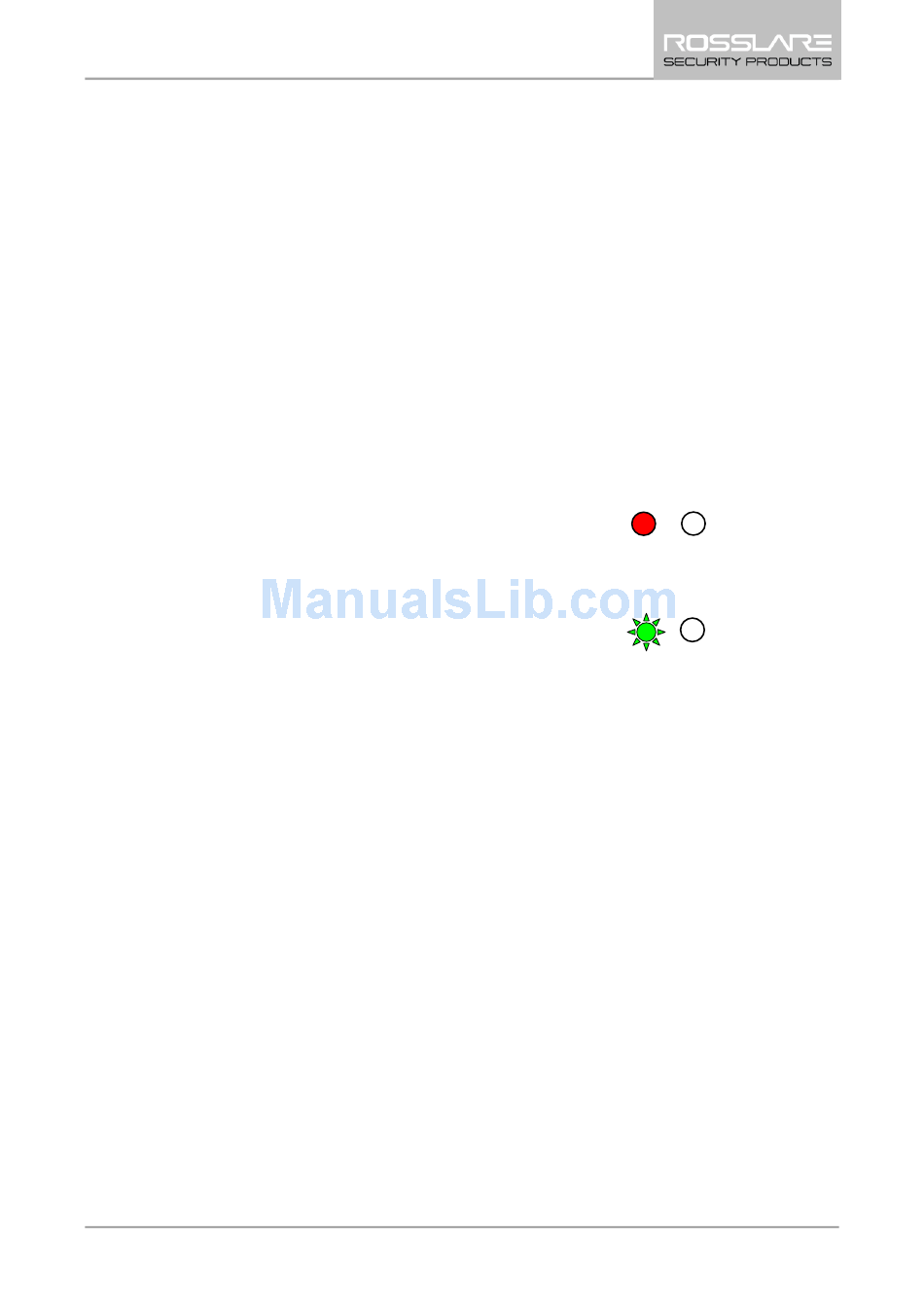

When the reader is in Transmit mode,

the Transmit LED is red and the

Program LED is off.

When a proximity card or PIN entry is

being transmitted, the Transmit LED

flashes green.

Keyboard data can be sent via one of eight different Keypad

Transmission Formats (see Section 7.2.3).

Proximity cards presented to the reader are always sent in either

Wiegand 26-Bit or Clock & Data format (see Section 7.2.4).

7.2

Programming the AYC-x6355 is done solely via the unit's keypad

driven Programming Menu System. During the AYC-x6355's

manufacturing process, certain codes and settings are pre-

programmed. These settings are called the default factory settings.

Table 2 shows the names of all the AYC-x6355 reader menus.

Default factory settings are marked by a "*" sign.

AYC-x6355 Installation and User Manual

Mode/Transmit

Red

Mode/Transmit

Green

Door/Program
