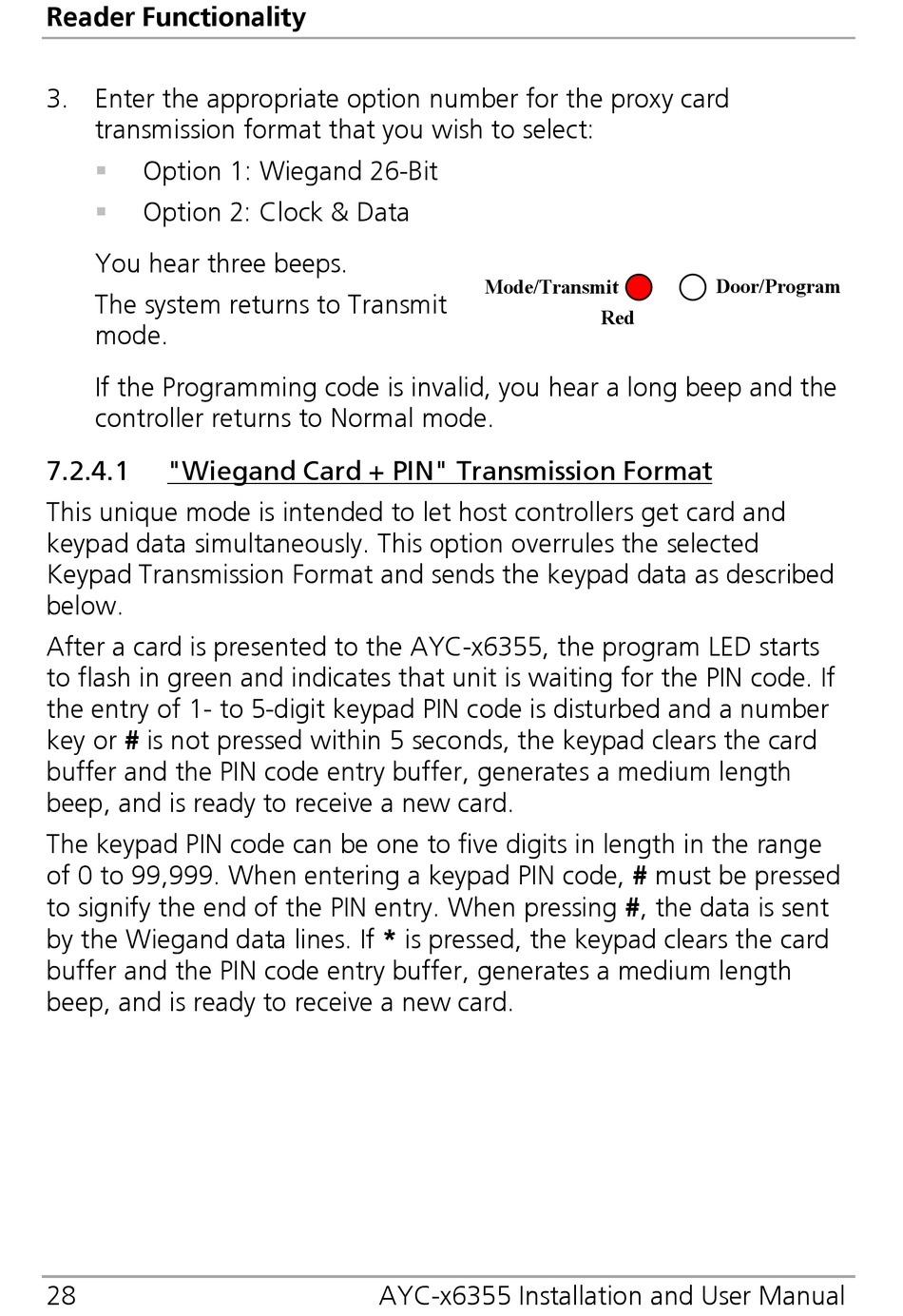

Rosslare AYC-H6355 Installation And User Manual page 28

Reader Functionality
3. Enter the appropriate option number for the proxy card
transmission format that you wish to select:
 Option 1: Wiegand 26-Bit
 Option 2: Clock & Data
You hear three beeps.
The system returns to Transmit
mode.
If the Programming code is invalid, you hear a long beep and the
controller returns to Normal mode.
7.2.4.1 "Wiegand Card + PIN" Transmission Format
This unique mode is intended to let host controllers get card and
keypad data simultaneously. This option overrules the selected
Keypad Transmission Format and sends the keypad data as described
below.
After a card is presented to the AYC-x6355, the program LED starts
to flash in green and indicates that unit is waiting for the PIN code. If
the entry of 1- to 5-digit keypad PIN code is disturbed and a number
key or # is not pressed within 5 seconds, the keypad clears the card
buffer and the PIN code entry buffer, generates a medium length
beep, and is ready to receive a new card.
The keypad PIN code can be one to five digits in length in the range
of 0 to 99,999. When entering a keypad PIN code, # must be pressed
to signify the end of the PIN entry. When pressing #, the data is sent
by the Wiegand data lines. If * is pressed, the keypad clears the card
buffer and the PIN code entry buffer, generates a medium length
beep, and is ready to receive a new card.
28
Mode/Transmit
AYC-x6355 Installation and User Manual
Door/Program
Red
