Controller Functionality
Aux. Mode
0
1
2
3
6
7
8
9
46

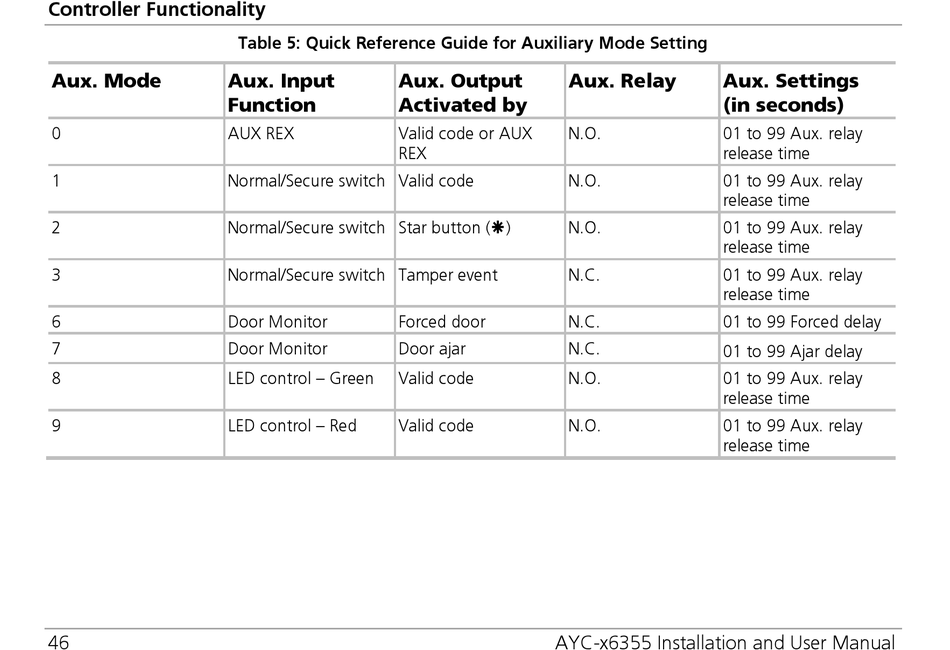

Table 5: Quick Reference Guide for Auxiliary Mode Setting

Aux. Input Aux. Output
Function Activated by
AUX REX Valid code or AUX
REX
Normal/Secure switch Valid code
Normal/Secure switch Star button ()
Normal/Secure switch Tamper event
Door Monitor Forced door
Door Monitor Door ajar
LED control – Green Valid code
LED control – Red Valid code
Aux. Relay Aux. Settings
(in seconds)
N.O. 01 to 99 Aux. relay
release time
N.O. 01 to 99 Aux. relay
release time
N.O. 01 to 99 Aux. relay
release time
N.C. 01 to 99 Aux. relay
release time
N.C. 01 to 99 Forced delay
N.C.
01 to 99 Ajar delay
N.O. 01 to 99 Aux. relay
release time
N.O. 01 to 99 Aux. relay
release time
AYC-x6355 Installation and User Manual
