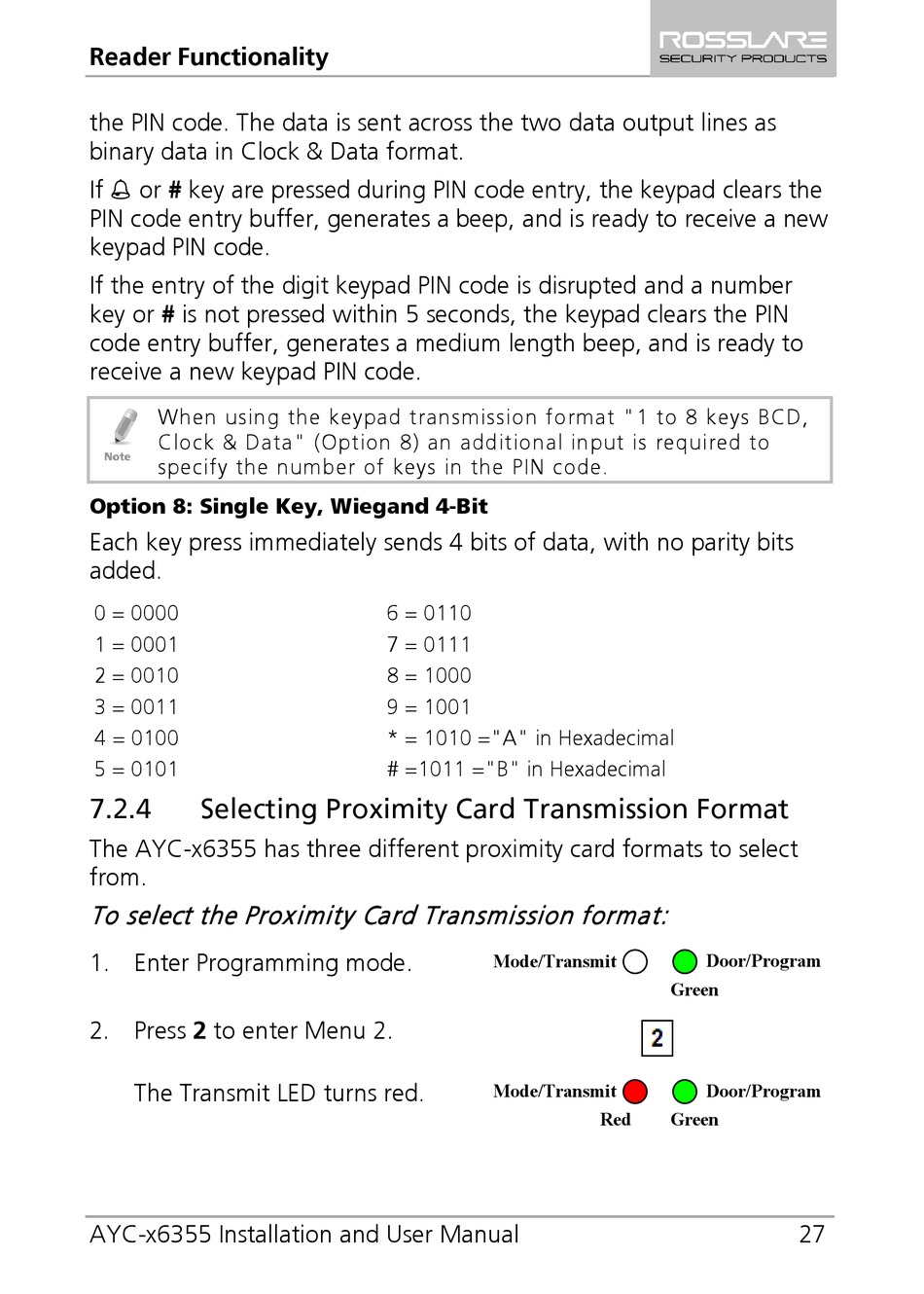

Selecting Proximity Card Transmission Format - Rosslare AYC-H6355 Installation And User Manual

Reader Functionality
the PIN code. The data is sent across the two data output lines as
binary data in Clock & Data format.
If  or # key are pressed during PIN code entry, the keypad clears the
PIN code entry buffer, generates a beep, and is ready to receive a new
keypad PIN code.
If the entry of the digit keypad PIN code is disrupted and a number
key or # is not pressed within 5 seconds, the keypad clears the PIN
code entry buffer, generates a medium length beep, and is ready to
receive a new keypad PIN code.
When using the keypad transmission format "1 to 8 keys BCD,
Clock & Data" (Option 8) an additional input is required to
specify the number of keys in the PIN code.
Option 8: Single Key, Wiegand 4-Bit
Each key press immediately sends 4 bits of data, with no parity bits
added.
0 = 0000
1 = 0001
2 = 0010
3 = 0011
4 = 0100
5 = 0101
7.2.4

Selecting Proximity Card Transmission Format

The AYC-x6355 has three different proximity card formats to select
from.
To select the Prox imity Card Transmission format:
1. Enter Programming mode.
2. Press 2 to enter Menu 2.
The Transmit LED turns red.
AYC-x6355 Installation and User Manual
6 = 0110
7 = 0111
8 = 1000
9 = 1001
* = 1010 ="A" in Hexadecimal
# =1011 ="B" in Hexadecimal
Mode/Transmit
Mode/Transmit
Door/Program
Green
Door/Program
Red Green
27
