You can connect a projector instead of a VGA monitor to display presentation
materials from a computer.
To connect a projector:

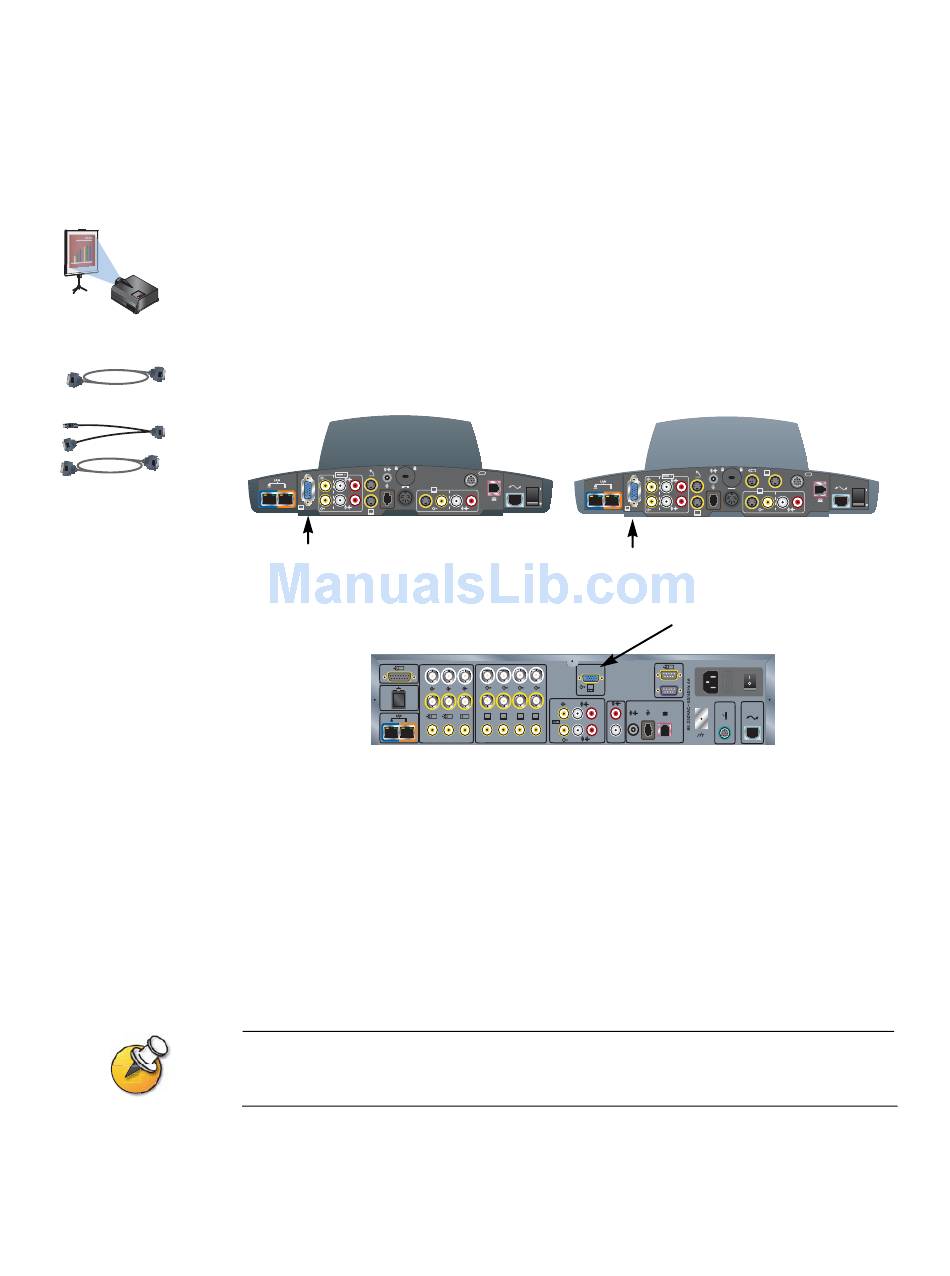

>> Connect a VGA cable from the projector to the system's XVGA monitor
output. If the system is a ViewStation FX, you may wish to use the VGA
adapter cable so that you can connect an additional S-Video TV monitor as
well.
ViewStation EX
2
3.3V 7A
12V 3A
XVGA
4
2
XVGA Monitor
1
Y
C
For more information about how to connect a projector, refer to the setup sheet that
came with your system.
You can connect a VCR or DVD to play recorded material during a call or to record
your videoconference. You can also connect two VCRs to play material and record
the conference at the same time.
The VCR inputs are active when you select camera 3. You will need to configure the system
to work with the VCR or DVD.
