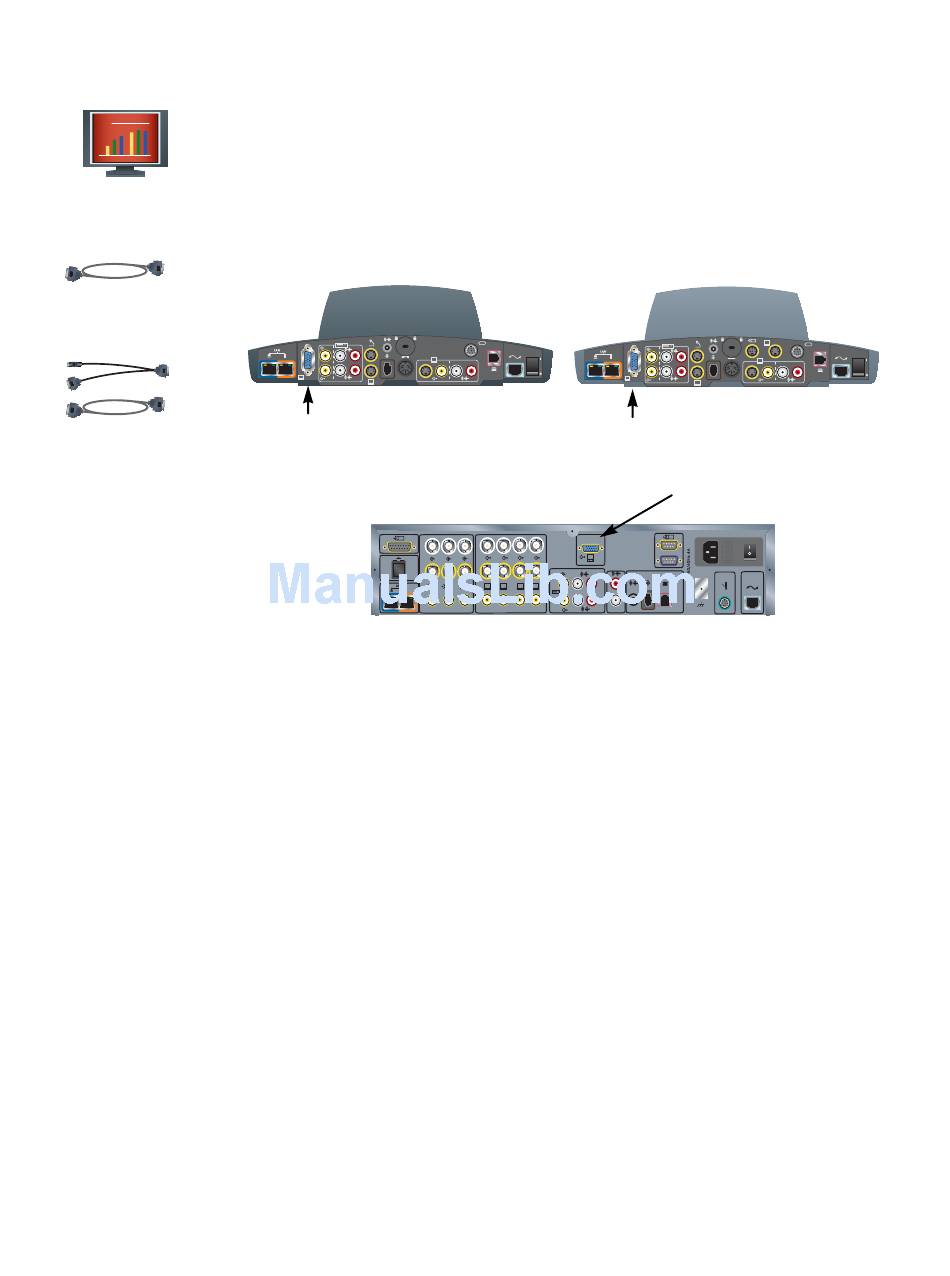

To connect a VGA monitor to a ViewStation EX, ViewStation FX, or VS4000:
>> Connect a VGA cable from the monitor to the system's XVGA monitor output.
If the system is a ViewStation FX, you may wish to use the VGA adapter cable
so that you can connect an additional S-Video TV monitor as well. The S-video
monitor is Monitor 4.
