Main Monitor

© Polycom, Inc.
You will need to connect a television monitor to the system. This may be an NTSC
or PAL monitor, depending on your system.

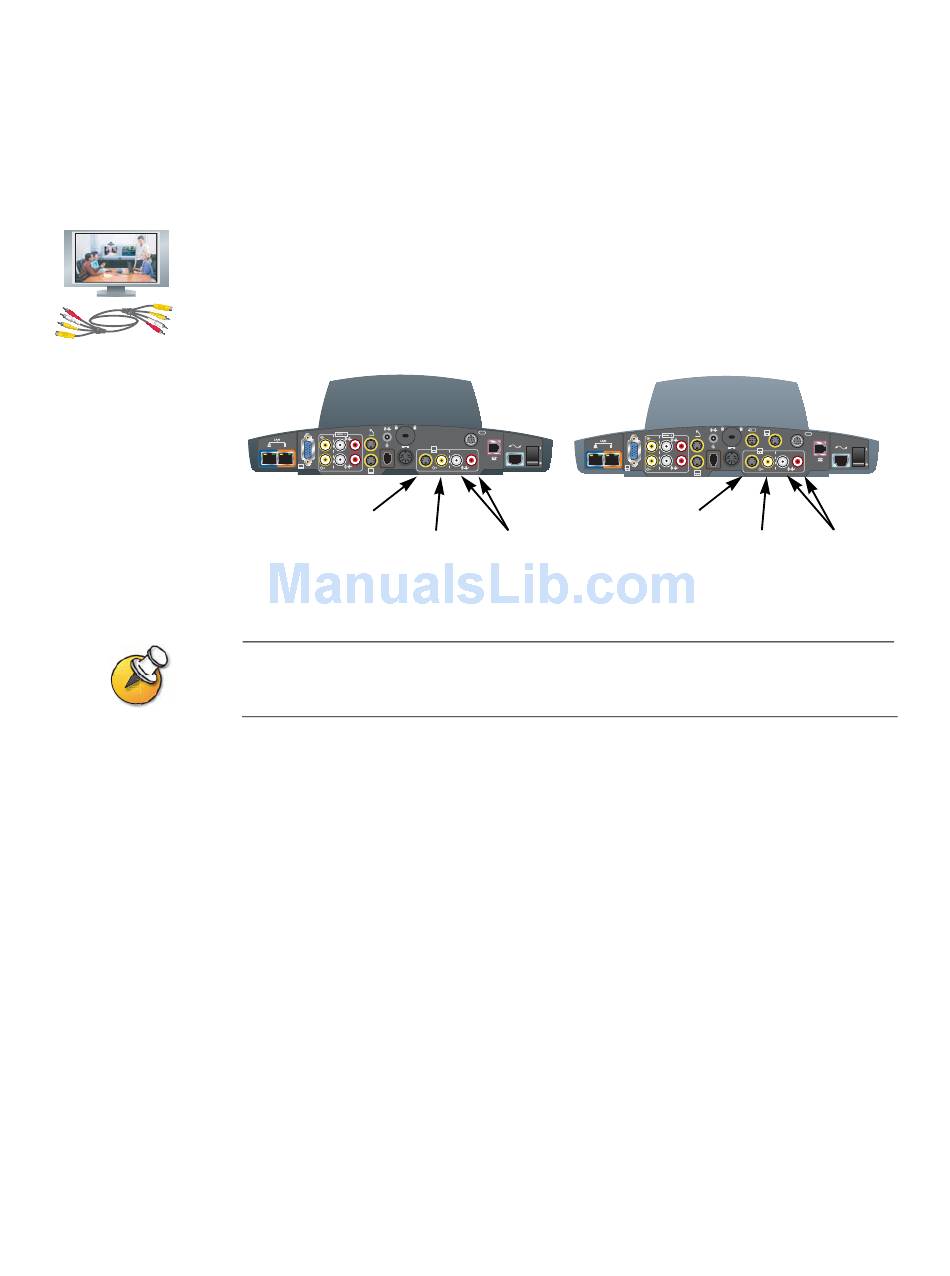

To connect a monitor to a ViewStation EX or ViewStation FX system:
>> Connect the monitor to the system's Monitor 1 S-Video or composite video
output, and to the Monitor 1 audio outputs.
ViewStation EX
2
3.3V 7A
12V 3A
XVGA
4
2
Monitor 1
S-Video
Monitor 1
Composite
S-Video provides superior video quality, and is strongly recommended if the system is to be
configured to display Asian fonts.
Chapter 2 - Setting Up Your System Hardware
0101
1
Audio
Outputs
ViewStation FX
4
3
2
3.3V 7A
12V 3A
1
XVGA
4
2
Monitor 1
S-Video
Monitor 1
Composite
0101
Audio
Outputs
2-5
