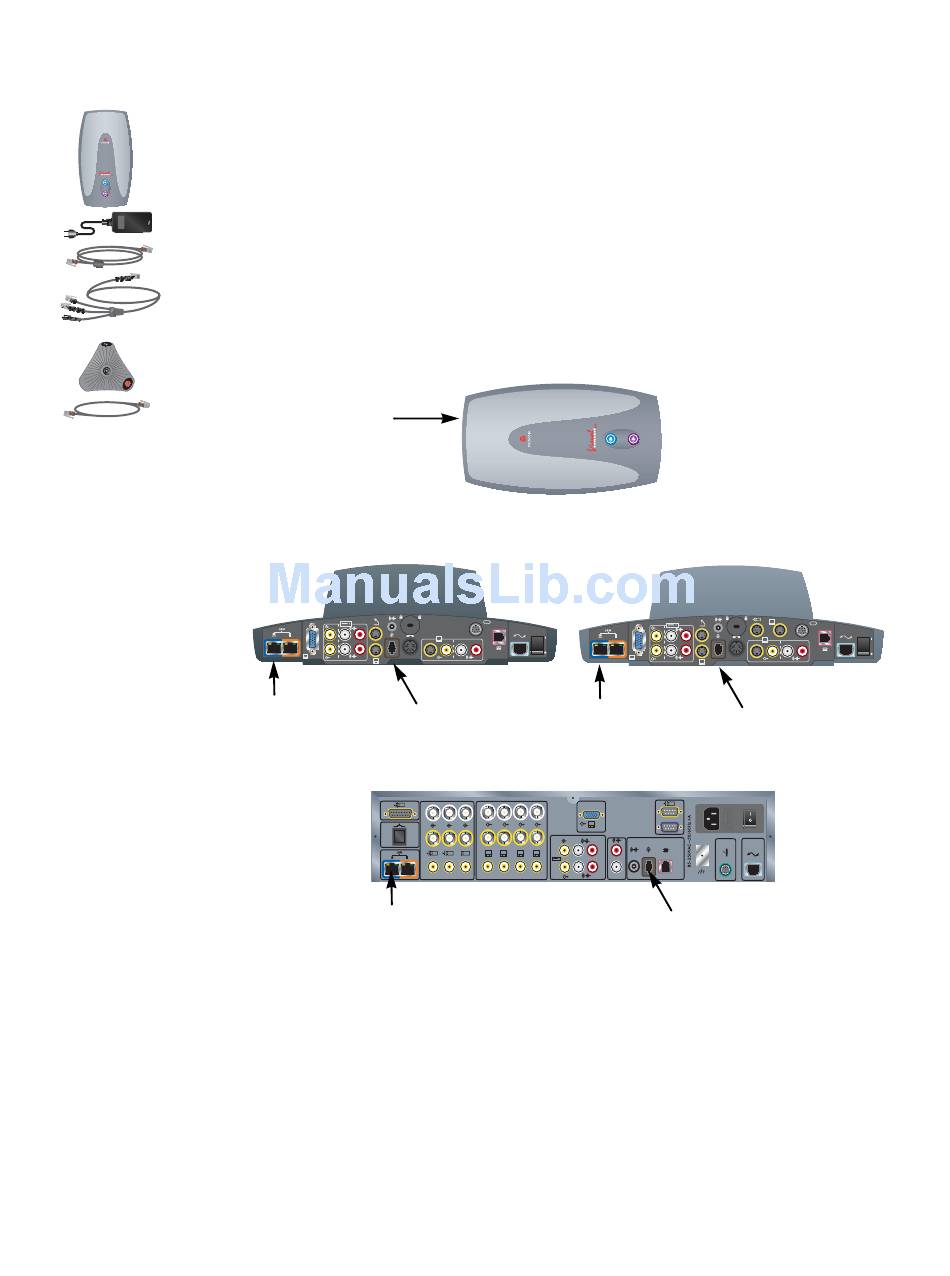

To connect a Visual Concert FX:
1. Make sure the system is powered off.
2. Referring to the Visual Concert FX QuickStart, connect the single end of the
system cable to the system connector on the Visual Concert FX.
3. Connect the system cable's LAN connector to the system's blue LAN port,
which is at the left end of the back panel.
4. Connect the system cable's microphone connector to the system's microphone
cable connector.
System
ViewStation EX
2
3.3V 7A
12V 3A
XVGA
4
2
Microphone
LAN
1
Y
C
LAN
5. Connect the microphone pod or pods to the Visual Concert FX using the
microphone pod cables included in the Visual Concert FX shipping box.
6. Connect the system cable's power connector to the power supply.
7. Connect the power cord from the power supply to a power outlet.
You can connect a VGA monitor to the VGA output on the Visual Concert FX
instead of connecting the monitor directly to the rear panel of the system.
Chapter 2 - Setting Up Your System Hardware
Visual Concert FX
0101
1
LAN
VS4000
XVGA
Y
5
C
1 2 3 4
1 4 2
3
ViewStation FX
4
3
2
3.3V 7A
12V 3A
1
XVGA
4
2
Microphone
4
0101
Microphone
0101
