Additional Monitor

ViewStation EX
ViewStation FX
VS4000
© Polycom, Inc.
You can connect an additional television monitor to your system for another view
of call participants or other video, and you can connect a VGA monitor for viewing
material from a computer, such as high-resolution presentations.
Polycom recommends using television monitors to show people. For high-resolution
presentations, Polycom recommends using a VGA (computer) monitor or a projector.

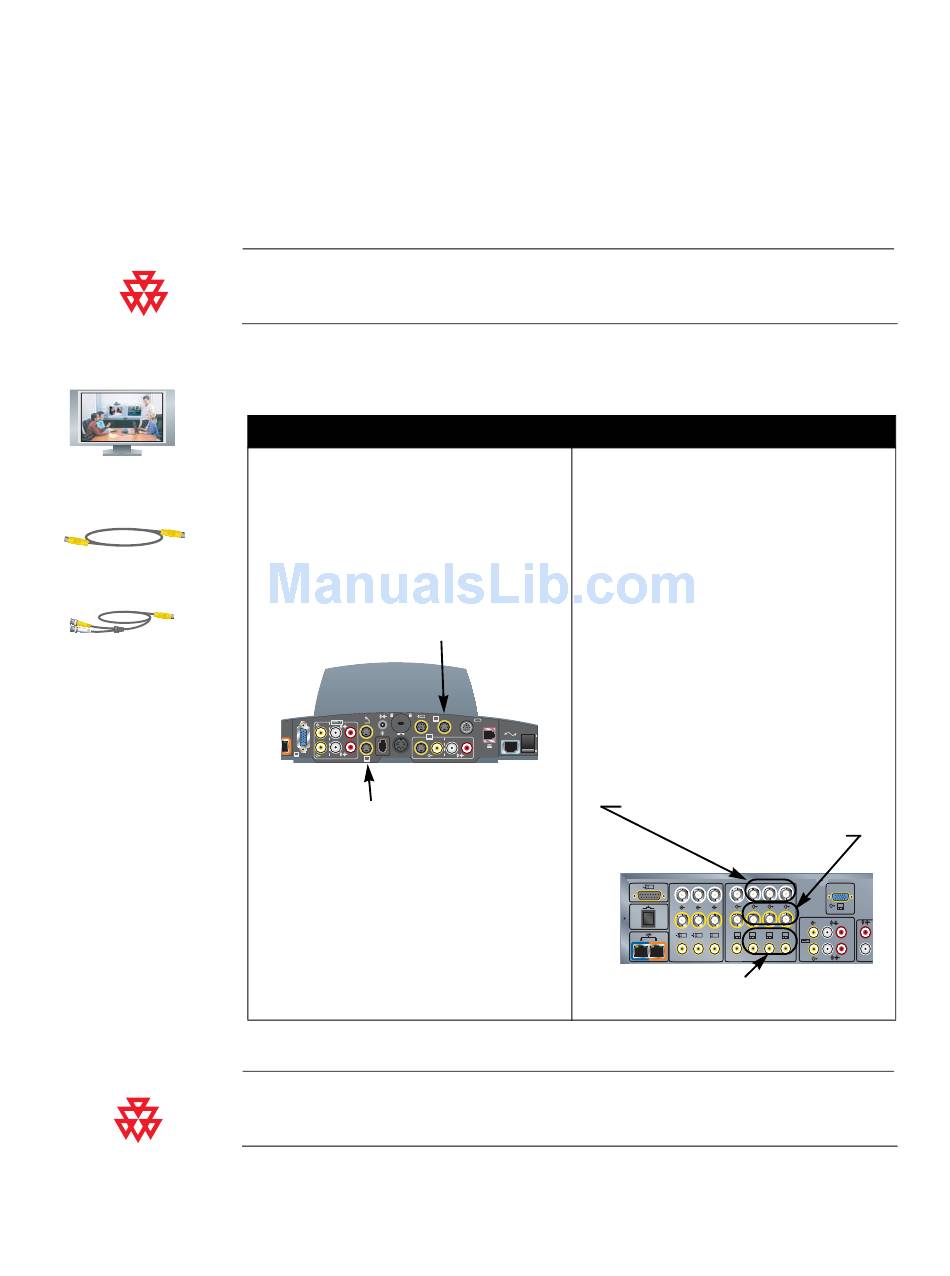

To connect an additional TV monitor:
To a ViewStation EX or ViewStation FX:
Connect a yellow S-video cable to S-video
connector on the monitor and to the
appropriate monitor connector on the rear
panel of the system. The ViewStation EX
system only provides one additional
television monitor output, the Monitor 2
output.
Monitor 3 S-Video
(ViewStation FX only)
4
2
3.3V 7A
12V 3A
XVGA
4
2
Monitor 2
S-Video
Polycom recommends using S-video for television monitors. You may connect the monitor
using a composite video connection, if the monitor does not have an S-video connector.
To a VS4000 system:
Original VS4000: Connect an S-video or
composite video cable to the monitor's
video input and to the appropriate S-video
or composite monitor output (monitor 2, 3,
or 4) on the system.
Enhanced VS4000: Connect an S-video
cable to the monitor's S-video input and to
an S-video adapter, and connect the
adapter's yellow and white BNC
connectors to the appropriate C and Y
connectors, respectively, on the system's
rear panel (monitor 2, 3, or 4),
or
3
0101
Connect a composite video cable to the
1
monitor's composite video input and to the
appropriate composite output (2, 3, or 4).
Chapter 2 - Setting Up Your System Hardware
Monitor 2, 3, 4 Y
Monitor 2, 3, 4 C
1
Y Y
C C
1 2 3 4
1 4 2
Monitor 2, 3, 4
Composite
XVGA
5
3
2-21
