Chapter 1 - Introducing the ViewStation EX, ViewStation FX, and VS4000 Systems

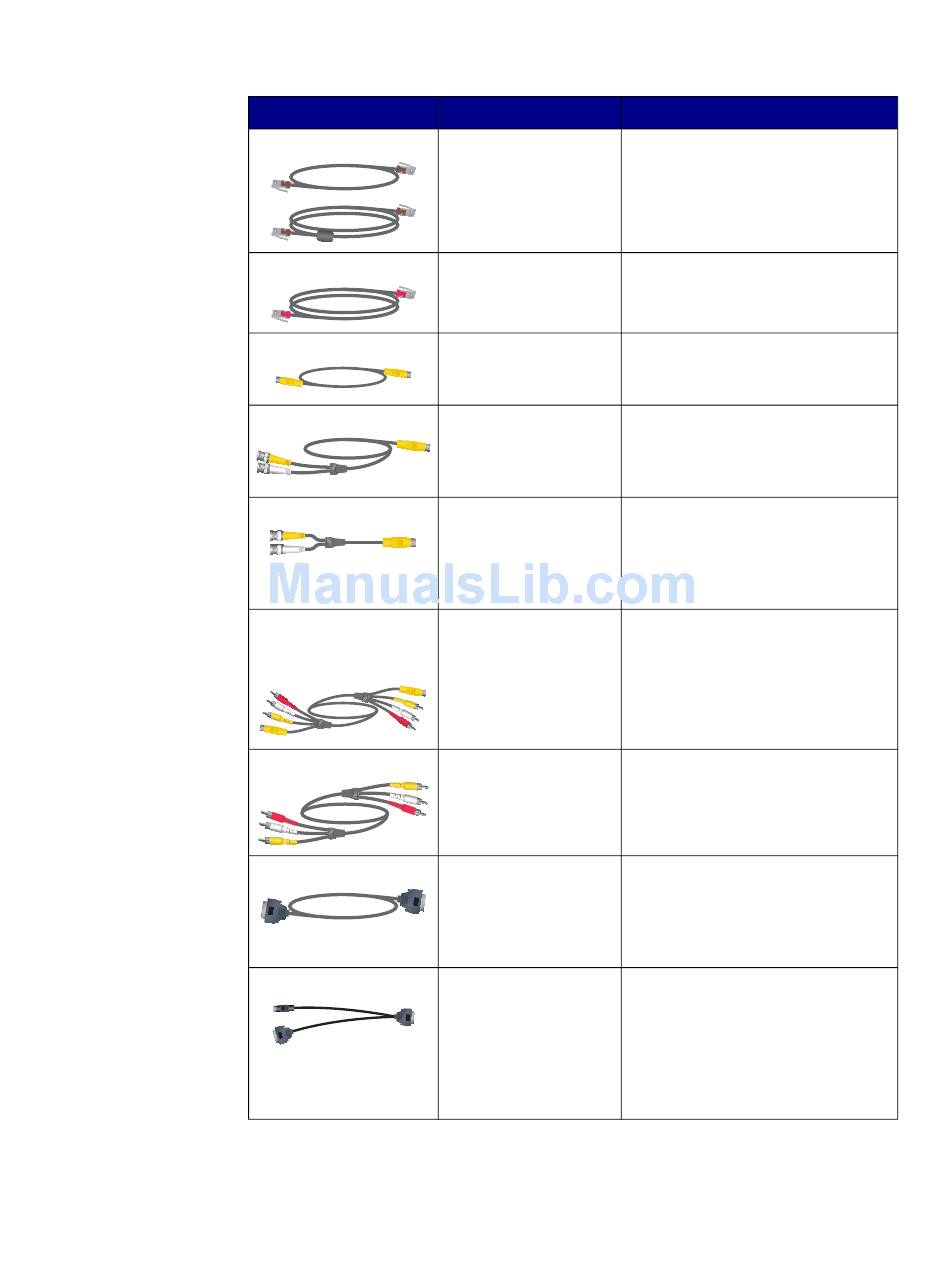

Cable Name
Microphone pod cables
Telephone cable
S-Video cables
S-Video cables
S-Video adapters
Combination S-Video,
audio, and composite
video cables
VCR cables
VGA cable
VGA adapter
System
ViewStation EX,
ViewStation FX,
VS4000
ViewStation EX,
ViewStation FX,
VS4000
ViewStation EX,
ViewStation FX
Original VS4000
Enhanced VS4000
Enhanced VS4000
ViewStation EX,
ViewStation FX
ViewStation FX,
VS4000
ViewStation EX,
ViewStation FX,
VS4000
ViewStation FX
Description
Cables with brown RJ-11
connectors that connect to
microphone pods.
Pink cable that connects to the
POTS line (in approved countries
only).
Cables with yellow 4-pin mini-DIN
connectors for connecting to
monitors and cameras.
Cables with yellow and white BNC
connectors and yellow 4-pin
mini-DIN connectors for connecting
to monitors and cameras.
Short cables with yellow and white
BNC connectors and yellow 4-pin
mini-DIN connectors for connecting
standard S-video cables to the
system.
Cables with yellow 4-pin mini-DIN
connectors and yellow, red, and
white RCA connectors for
connecting a monitor to provide
video and audio
Cable with yellow, red, and white
RCA connectors that connect to a
VCR or DVD.
Cable with black (for
ViewStation EX and FX) or yellow
(for VS4000) DB-15 connectors that
connects to an additional monitor or
projector.
Short cable with a single black
high-density subminiature D
connector at one end, and standard
VGA and S-Video connectors at the
other end to connect to the cables
for an S-Video monitor or a VGA
monitor or projector.
