V.35/RS-449/RS-530 Network Interface Module

© Polycom, Inc.
The V.35/RS-449/RS-530 network interface module allows you to connect the
system to third-party communication equipment such as encryption devices.
You will need to provide appropriate cables to connect the V.35/RS-449/RS-530
network interface module to your communication equipment.
Polycom only provides technical support for V.35, RS-449, and RS-530 cables built and
certified by Polycom. These cables are sold separately from the network interface module
and are available from Polycom.

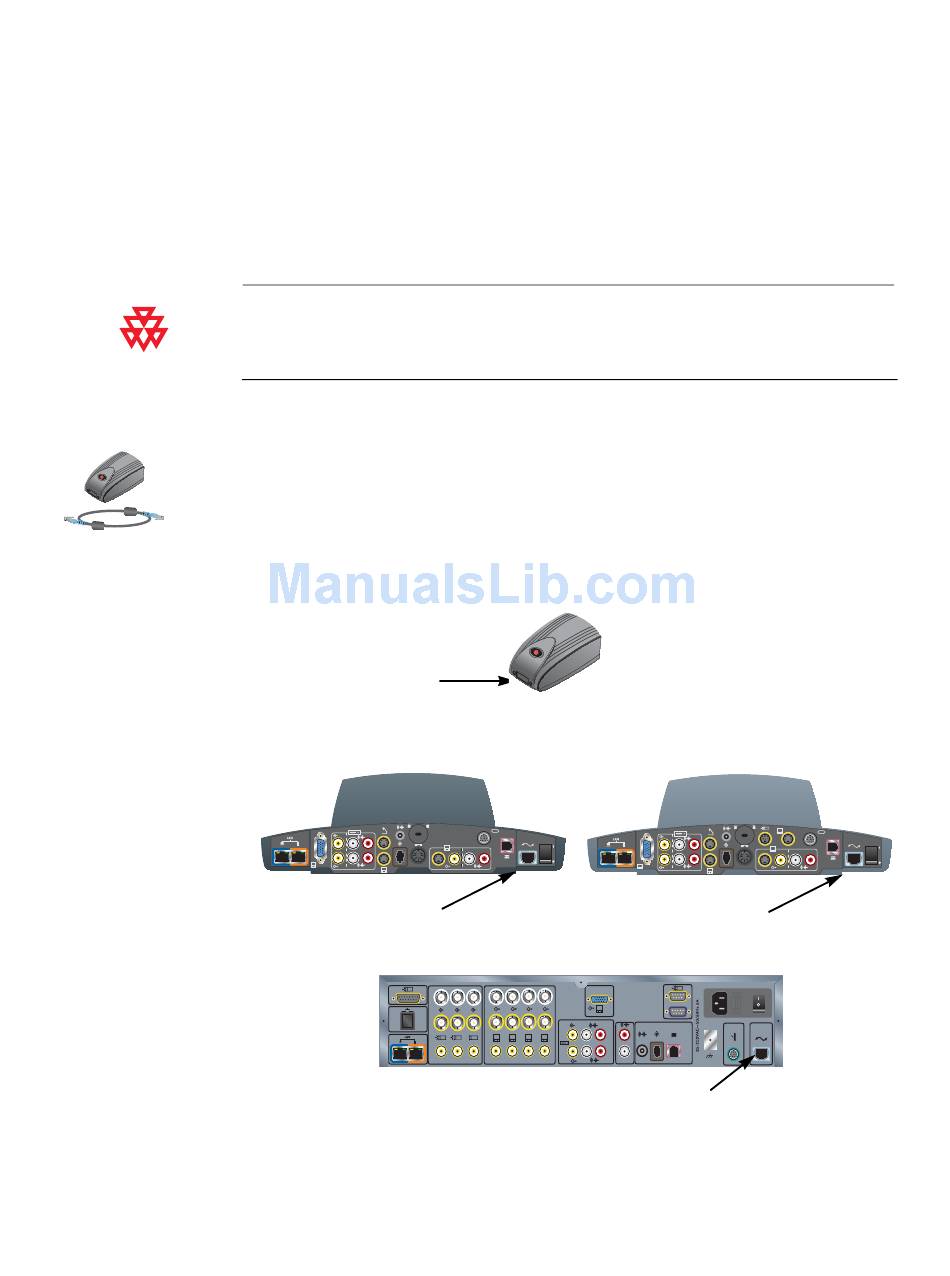

To install a V.35/RS-449/RS-530 network interface module:
1. Ensure that the system is powered off.
2. Connect the peripheral side of the network interface module to the system
using the network interface cable that is color-coded light blue on both ends.
System
side
ViewStation EX
2
3.3V 7A
12V 3A
XVGA
4
2
Network interface
1
3. Connect the network side of the network interface module to the data
communications equipment.
V.35/RS-449/RS-530
0101
1
VS4000
XVGA
Y Y
5
C C
1 2 3 4
1 4 2
3
Network interface
Chapter 2 - Setting Up Your System Hardware
ViewStation FX
4
3
2
3.3V 7A
12V 3A
1
XVGA
4
2
Network interface
4
0101
0101
2-15
