4.2.2

SWO Analyzer

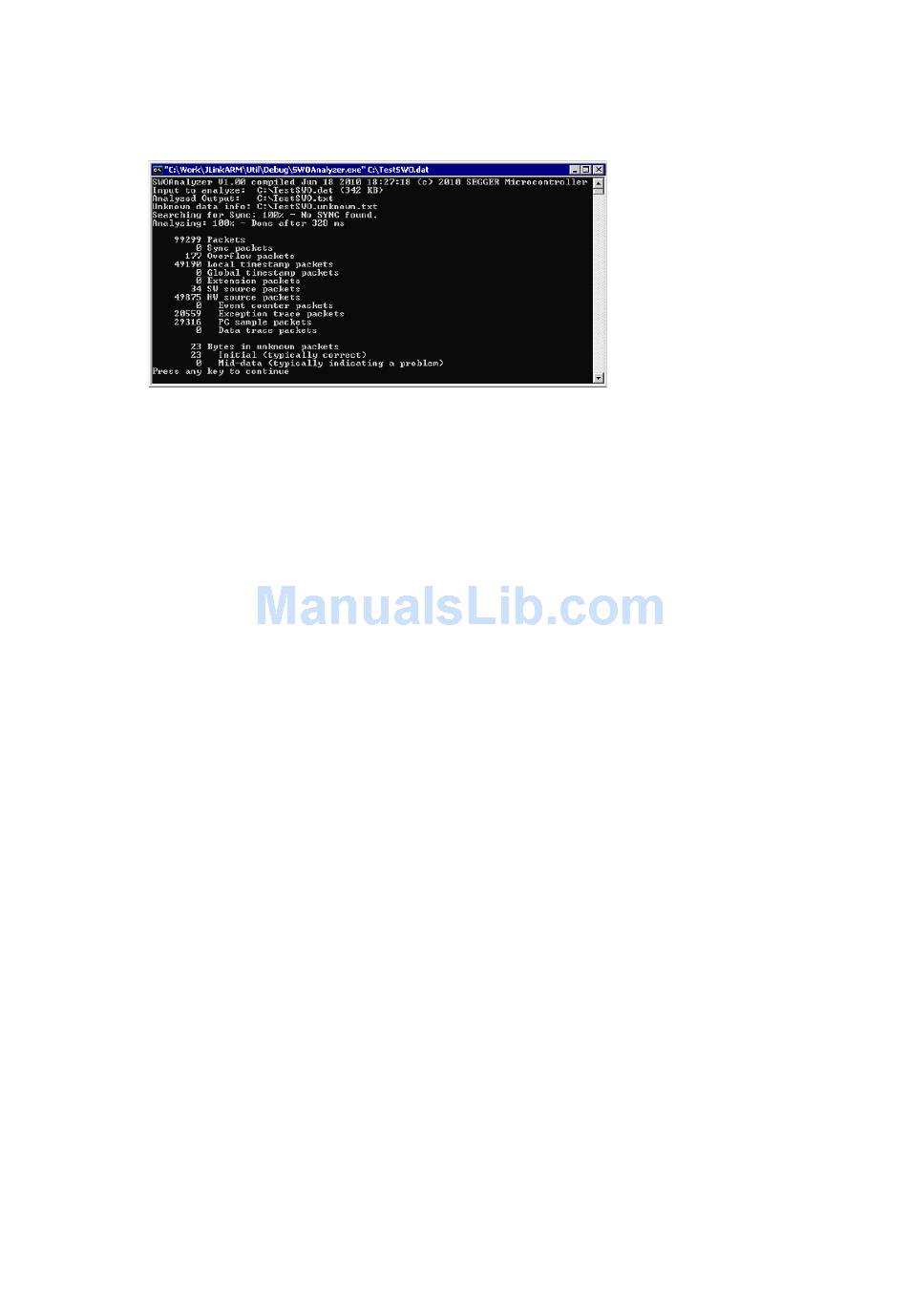

SWO Analyzer (SWOAnalyzer.exe) is a tool that analyzes SWO output. Status and
summary of the analysis are output to standard out, the details of the analysis are
stored in a file.
Usage
SWOAnalyzer.exe <SWOfile>
This can be achieved by simply dragging the SWO output file created by the J-Link
DLL onto the executable.
Creating an SWO output file
In order to create the SWO output file, which is th input file for the SWO Analyzer,
the J-Link config file needs to be modified.
It should contain the following lines:
[SWO]
SWOLogFile="C:\TestSWO.dat"
4.2.3

J-Link STR91x Commander (Command line tool)

J-Link STR91x Commander (JLinkSTR91x.exe) is a tool that can be used to configure
STR91x cores. It permits some STR9 specific commands like:
• Set the configuration register to boot from bank 0 or 1
• Erase flash sectors
• Read and write the OTP sector of the flash
• Write-protect single flash sectors by setting the sector protection bits
• Prevent flash from communicate via JTAG by setting the security bit
