Using Multi-Core Debugging In Detail - Segger J-Link User Manual

108
5.5.2

Using multi-core debugging in detail

1. Connect your target to J-Link / J-Trace.
2. Start your debugger, for example IAR Embedded Workbench for ARM.

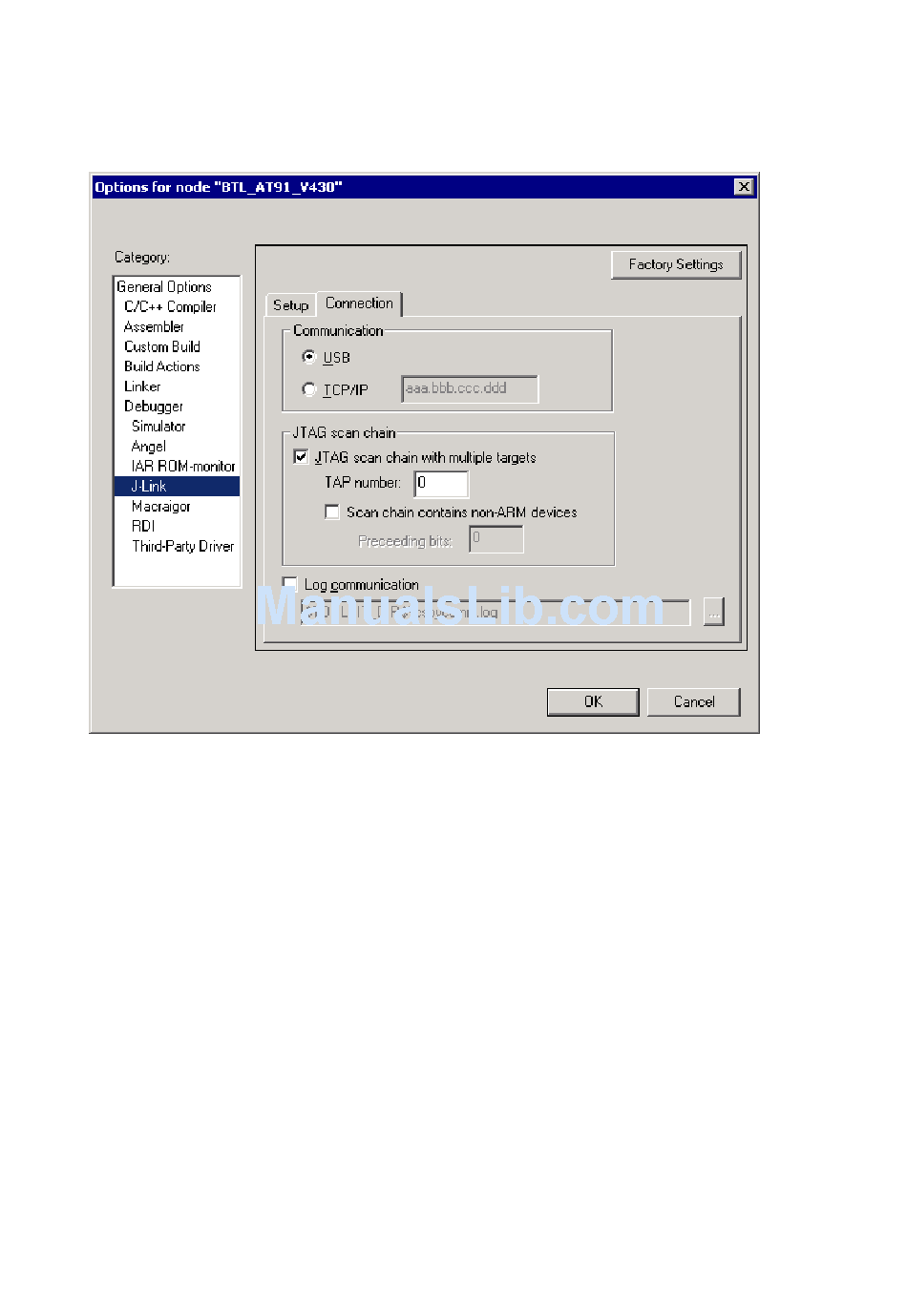

3. Choose Project|Options and configure your scan chain. The picture below
shows the configuration for the first ARM core on your target.
4. Start debugging the first core.
5. Start another debugger, for example another instance of IAR Embedded Work-
bench for ARM.
J-Link / J-Trace (UM08001)
CHAPTER 5
© 2004-2011 SEGGER Microcontroller GmbH & Co. KG
Working with J-Link and J-Trace
