2.5.3

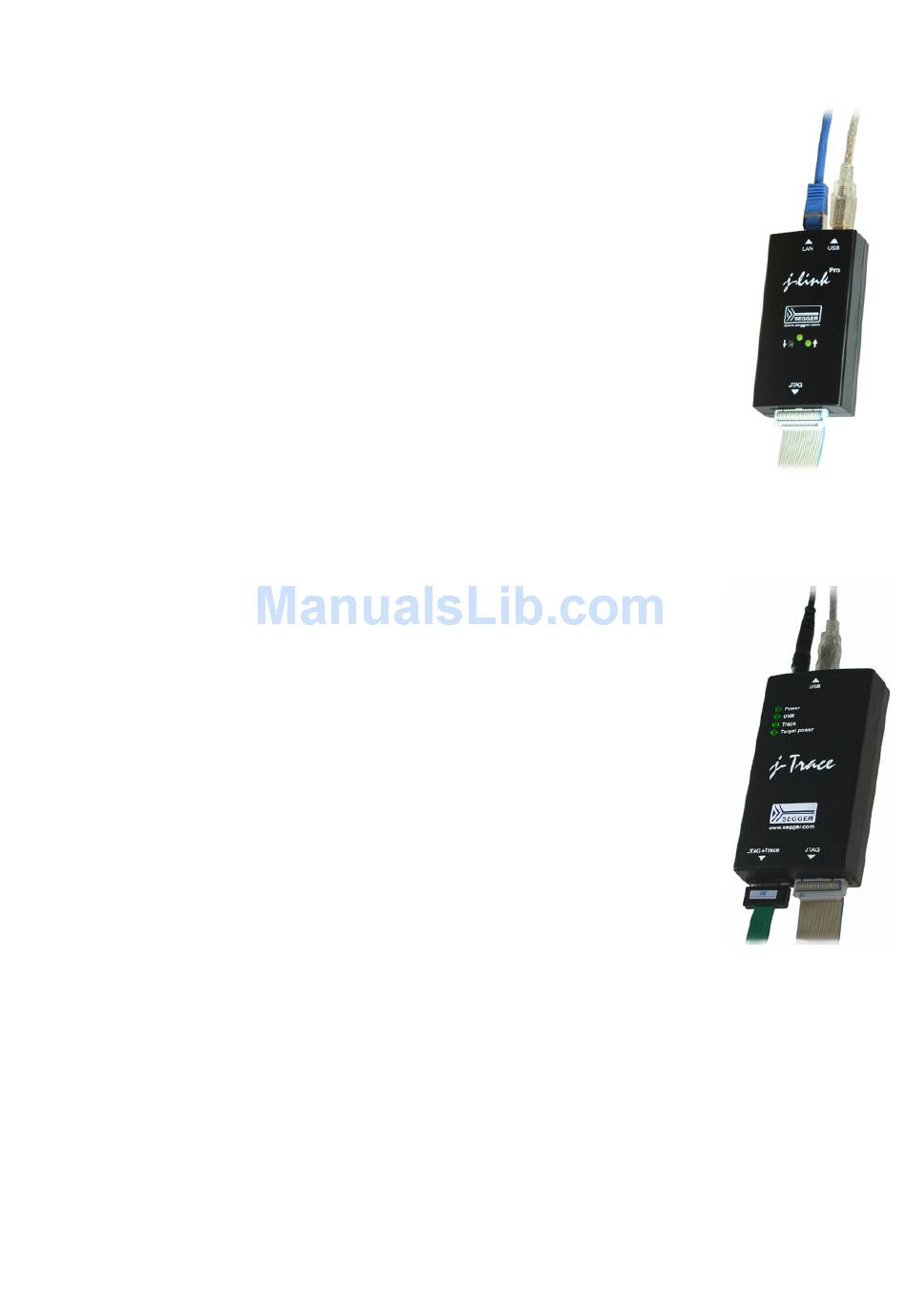

J-Link Pro

J-Link Pro is a JTAG emulator designed for ARM cores. It con-
nects via USB or Ethernet to a PC running Microsoft Windows
2000, Windows XP, Windows 2003, Windows Vista or Windows
7. J-Link has a built-in 20-pin JTAG connector, which is compat-
ible with the standard 20-pin connector defined by ARM.
Licenses
Comes with built-in licenses for all J-Link related software prod-
ucts: J-Link ARM FlashDL, FlashBP, RDI, J-Link GDB Server and
J-Flash.
2.5.4

J-Trace

J-Trace is a JTAG emulator designed for ARM cores which
includes trace (ETM) support. It connects via USB to a PC run-
ning Microsoft Windows 2000, Windows XP, Windows 2003,
Windows Vista or Windows 7. J-Trace has a built-in 20-pin JTAG
connector and a built in 38-pin JTAG+Trace connector, which is
compatible with the standard 20-pin connector and 38-pin con-
nector defined by ARM.
Licenses
Comes with built-in licenses for flash download and flash break-
points for some devices. For a complete list of devices which
are supported by the built-in licenses, please refer to Device list
on page 51.
J-Link / J-Trace (UM08001)
© 2004-2011 SEGGER Microcontroller GmbH & Co. KG
55
