J-Link Ultra

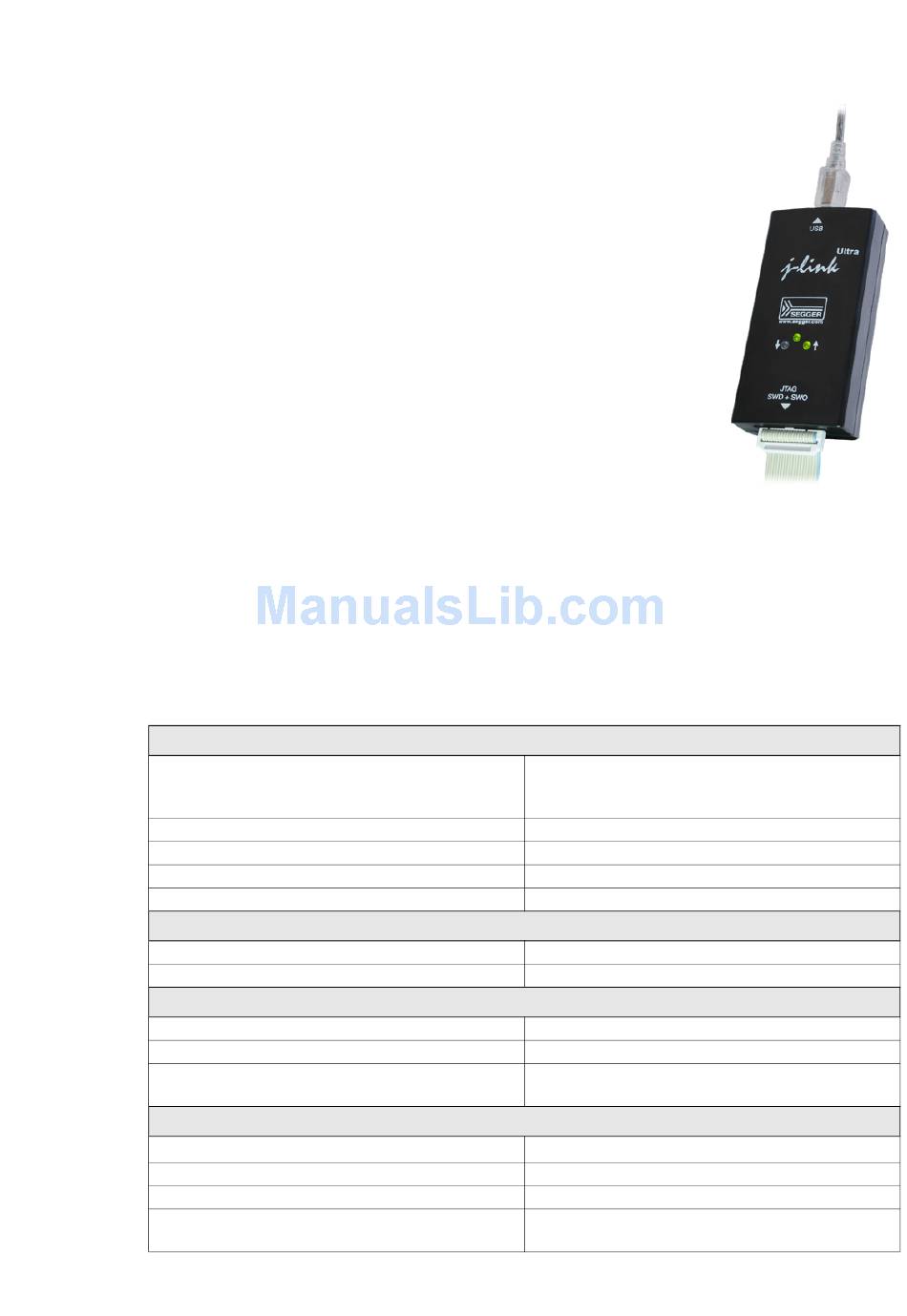

J-Link Ultra is a JTAG/SWD emulator designed for ARM/Cortex
and other supported CPUs. It is fully compatible to the standard
J-Link and works with the same PC software. Based on the
highly optimized and proven J-Link, it offers even higher speed
as well as target power measurement capabilities due to the
faster CPU, built-in FPGA and High speed USB interface. It con-
nects via USB to a PC running Microsoft Windows 2000 or later.
For a complete list of all operating systems which are sup-
ported, please refer to Supported OS on page 19.. J-Link Ultra
has a built-in 20-pin JTAG/SWD connector.
1.3.3.1 Additional features
• Fully compatible to the standard J-Link
• Very high performance for all supported CPU cores
• Hi-Speed USB 2.0 interface
• JTAG speed up to 25 MHz
• Serial Wire Debug (SWD) supported
• Serial Wire Viewer (SWV) supported
• SWV: UART and Manchester encoding supported
• SWO sampling frequencies up to 25 MHz
• Target power can be supplied
• Target power consumption can be measured with high accuracy. External ADC
can be connected via SPI
1.3.3.2 Specifications
The following table gives an overview about the specifications (general, mechanical,
electrical) for J-Link Ultra. All values are valid for J-Link Ultra hardware version 1.
Note: Some specifications, especially speed, are likely to be improved in the
future with newer versions of the J-Link software (freely available).
Supported OS
Electromagnetic compatibility (EMC)
Operating temperature
Storage temperature
Relative humidity (non-condensing)
Size (without cables)
Weight (without cables)
USB interface
Target interface
External (SPI) analog power measure-
ment interface
Target interface voltage (V
Target supply voltage
Target supply current
Reset Type
Table 1.3: J-Link Ultra specifications
J-Link / J-Trace (UM08001)
General
For a complete list of all operating sys-
tems which are supported, please refer
to Supported OS on page 21.
EN 55022, EN 55024
+5°C ... +60°C
-20°C ... +65 °C
Max. 90% rH
Mechanical
100mm x 53mm x 27mm
73g
Available interfaces
USB 2.0, Hi-Speed
JTAG/SWD 20-pin
4-pin (Pins 14, 16, 18 and 20 of the 20-
pin JTAG/SWD interface)
JTAG/SWD Interface, Electrical
)
1.8V ... 5V
IF
4.5V ... 5V
Max. 300mA
Open drain. Can be pulled low or
tristated.
