Built-in intelligence for supported CPU-cores

In general, there are two ways two ways to support a CPU-core in the J-Link soft-
ware:
1.

Intelligence in the J-Link firmware

2.

Intelligence on the PC-side (DLL)

Having the intelligence in the firmware is ideal since it is much more powerful and
robust. The J-Link PC software automatically detects which implementation level is
supported for the connected CPU-core. If Intelligence in the firmware is available, it
is used. If you are using a J-Link that does not have intelligence in the firmware and

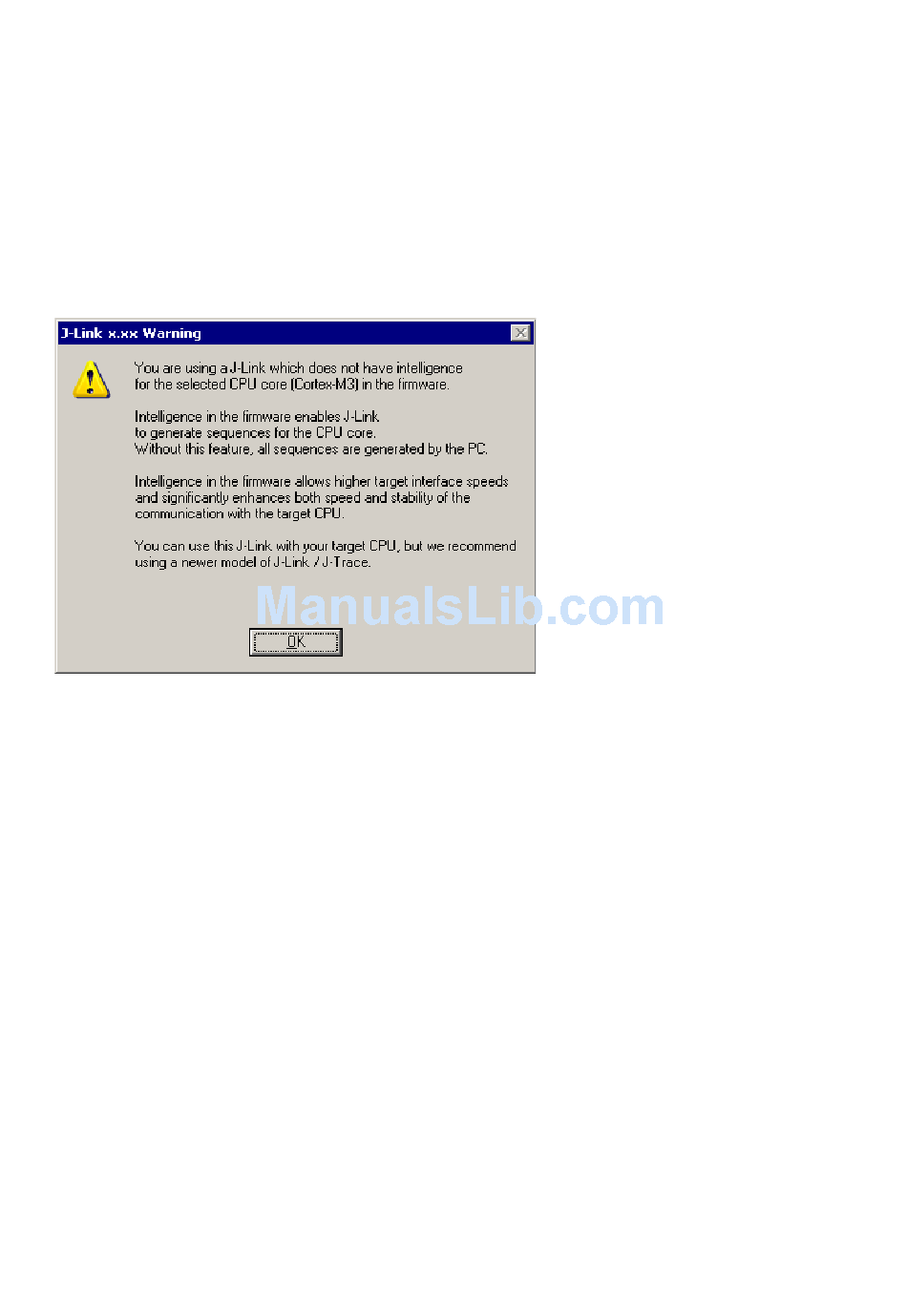

only PC-side intelligence is available for the connected CPU, a warning message is
shown.
1.6.1 Intelligence in the J-Link firmware
On newer J-Links, the intelligence for a new CPU-core is also available in the J-Link
firmware which means, for these J-Links the target sequences are no longer gener-
ated on the PC-side but directly inside the J-Link. Having the intelligence in the firm-
ware leads to improved stability and higher performance.
1.6.2 Intelligence on the PC-side (DLL)
This is the basic implementation level for support of a CPU-core. This implementation
is not J-Link model dependend, since no intelligence for the CPU-core is necessary in
the J-Link firmware. This means, all target sequences (JTAG/SWD/...) are generated
on the PC-side and the J-Link simply sends out these sequences and sends the result
back to the DLL. Using this way of implementation also allows old J-Links to be used
with new CPU cores as long as a DLL-Version is used which has intelligence for the
CPU.
But there is one big disadvantage of implementing the CPU core support on the DLL-
side: For every sequence which shall be send to the target a USB or Ethernet trans-
action is triggered. The long latency especially on a USB connection significantly
affects the performance of J-Link. This is true especially, when performing actions
where J-Link has to wait for the CPU frequently. An example is a memory read/write
operation which needs to be followed by status read operations or repeated until the
memory operation is completed. Performing this kind of task with only PC-side intel-
ligence will have to either make some assumption like: Operation is completed after
a given number of cycles or will have to make a lot of USB/Ethernet transactions. The
first option (fast mode) will not work under some circumstances such as low CPU
