Serial Wire Viewer supported
Download speed up to 720 KBytes/second ** (higher download speeds will be
available in the near future)
DCC speed up to 800 Kbytes/second **
Comes with licenses for: J-Link ARM RDI, J-Link ARM FlashBP, J-Link ARM
FlashDL, J-Link ARM GDB Server and J-Flash ARM.
Embedded Trace Buffer (ETB) support
Galvanic isolation from host via Ethernet
RDI interface available, which allows using J-Link with RDI compliant software
** = Measured with J-Link Pro Rev. 1.1, ARM7 @ 50 MHz, 12MHz JTAG speed.
1.3.4.2 Download speed

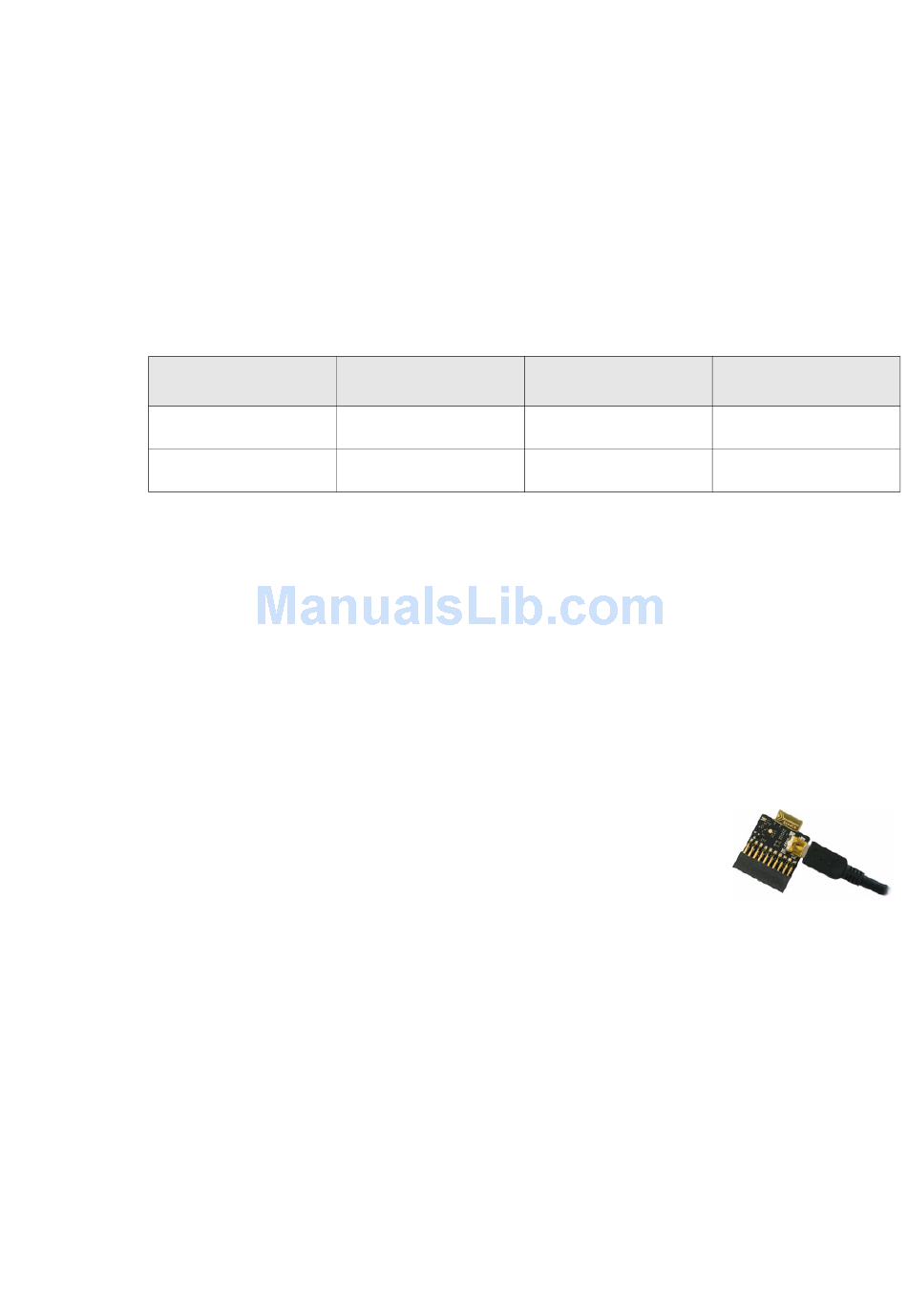

The following table lists performance values (Kbytes/s) for writing to memory (RAM):
Hardware
Rev. 1 via USB
Rev. 1 via TCP/IP
Table 1.4: Download speed differences between hardware revisions
All tests have been performed in the testing environment which is described on Mea-
suring download speed on page 208.
The actual speed depends on various factors, such as JTAG/SWD, clock speed, host
CPU core etc.
1.3.4.3 Hardware versions
Version 1.1
Compatible to J-Link ARM.
Provides an additional Ethernet interface which allows to communicate with J-
Link via TCP/IP.
1.3.5

J-Link ARM Lite

J-Link ARM Lite is a fully functional OEM-version of J-Link ARM.
If you are selling evaluation-boards, J-Link ARM Lite is an inex-
pensive emulator solution for you. Your customer receives a
widely acknowledged JTAG-emulator which allows him to start
right away with his development.
1.3.5.1 Additional features
Very small form factor
Fully software compatible to J-Link ARM
Any ARM7/9/11, Cortex-A5/A8, Cortex-M0/M1/M3/M4, Cortex-R4 core supported
JTAG clock up to 4 MHz
SWD, SWO supported for Cortex-M devices
Flash download into supported MCUs
Standard 20-pin 0.1 inch JTAG connector (compatible to J-Link ARM)
J-Link / J-Trace (UM08001)
ARM7
via JTAG
720 Kbytes/s
(12 MHz JTAG)
720 Kbytes/s
(12 MHz JTAG)
ARM9
via JTAG
550 Kbytes/s
(12 MHz JTAG)
550 Kbytes/s
(12 MHz JTAG)
© 2004-2011 SEGGER Microcontroller GmbH & Co. KG
29
Cortex-M3
via SWD
190 Kbytes/s
(12 MHz SWD)
190 Kbytes
(12 MHz SWD)
