Original SEGGER products

The following products are original SEGGER products for which the use of the J-Link
software is allowed:
2.5.1

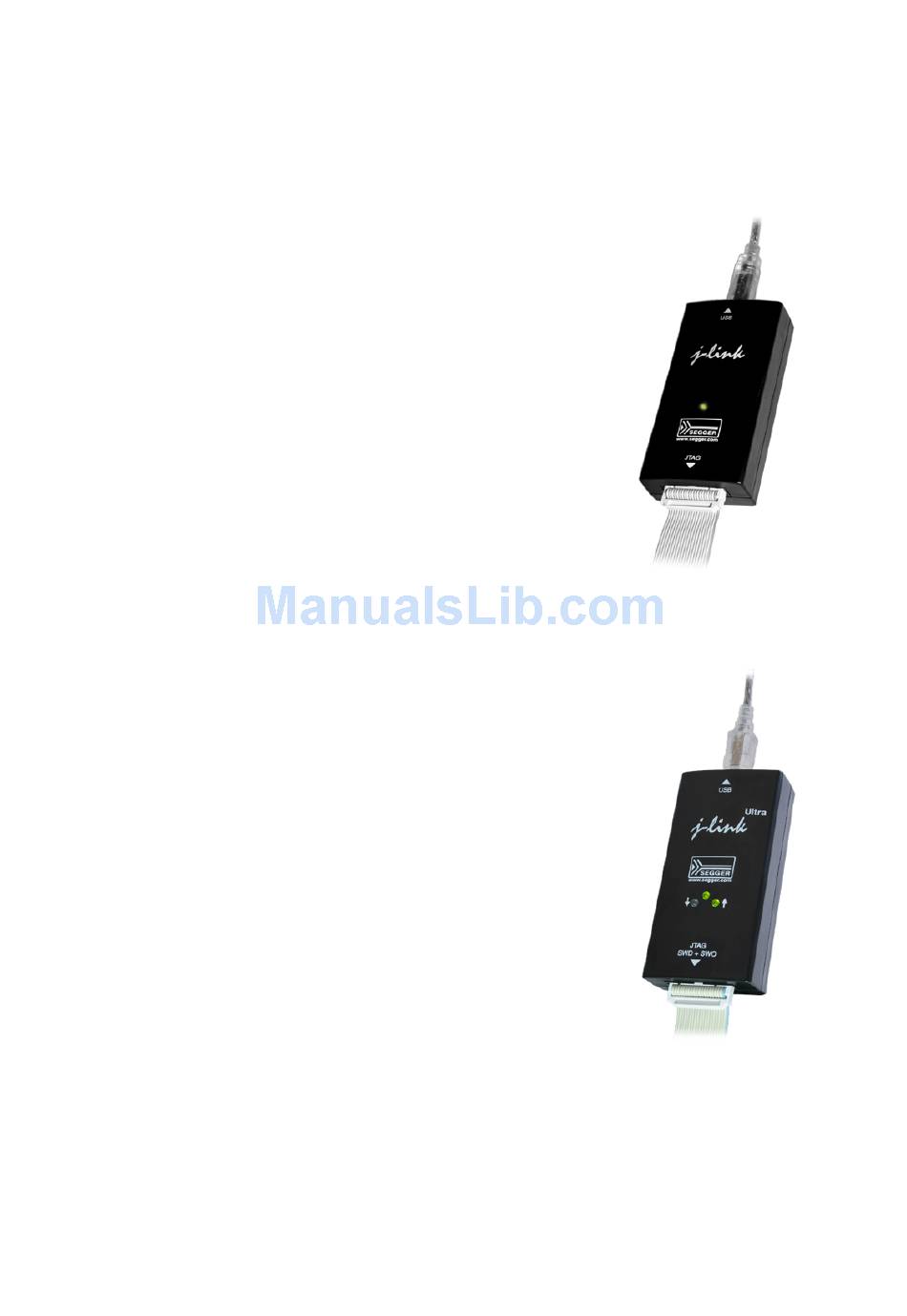

J-Link

J-Link is a JTAG emulator designed for ARM cores. It connects
via USB to a PC running Microsoft Windows 2000, Windows XP,
Windows 2003, Windows Vista or Windows 7. J-Link has a built-
in 20-pin JTAG connector, which is compatible with the standard
20-pin connector defined by ARM.
Licenses
Comes with built-in licenses for flash download and flash break-
points for some devices. For a complete list of devices which
are supported by the built-in licenses, please refer to Device
list on page 51.
2.5.2

J-Link Ultra

J-Link Ultra is a JTAG/SWD emulator designed for ARM/Cortex
and other supported CPUs. It is fully compatible to the standard
J-Link and works with the same PC software. Based on the
highly optimized and proven J-Link, it offers even higher speed
as well as target power measurement capabilities due to the
faster CPU, built-in FPGA and High speed USB interface.
It connects via USB to a PC running Microsoft Windows 2000,
Windows XP, Windows 2003, Windows Vista or Windows 7.
J-Link Ultra has a built-in 20-pin JTAG/SWD connector.
Licenses
Comes with built-in licenses for flash download and flash break-
points for some devices. For a complete list of devices which are
supported by the built-in licenses, please refer to Device list on
page 51.
